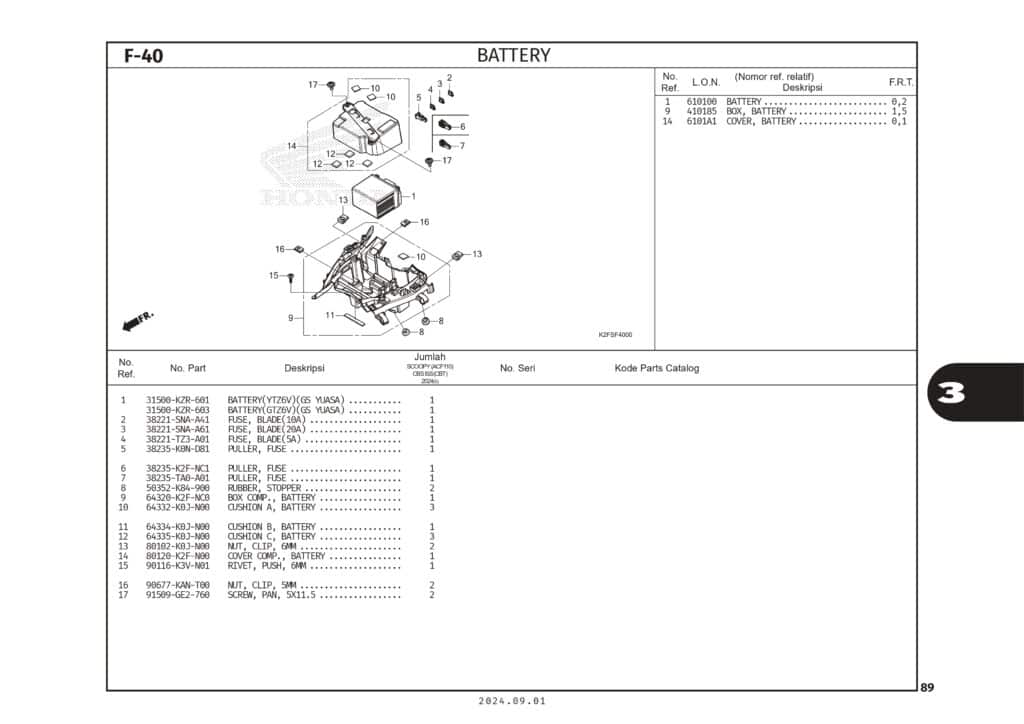

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | BATTERY YTZ6-V | 31500KZR601 |
|
| 1 | BATTERY GTZ6V | 31500KZR602 |
|
| 2 | FUSE, BLADE(10A) | 38221SNAA41 |
|
| 3 | BLADE FUSE,20A LOW-PROFILE | 38221SNAA61 |
|
| 4 | BLADE FUSE,5A(LOW-PROFILE) | 38221TZ3A01 |
|
| 5 | PULLER,FUSE | 38235K0ND81 | - |
| 6 | PULLER,LOW-PROFILE FUSE | 38235K2FNC1 | - |
| 7 | PULLER FUSE | 38235TA0A01 |
|
| 8 | RUBBER, STOPPER | 50352K84900 |
|
| 9 | BOX COMP,BATTERY | 64320K2FNC0 | - |
| 10 | CUSHION A,BATTERY | 64332K0JN00 |
|
| 11 | CUSHION,B BATTERY | 64334K0JN00 |
|
| 12 | CUSHION C,BATTERY | 64335K0JN00 |
|
| 13 | NUT,CLIP 6MM | 80102K0JN00 |
|
| 14 | COVER COMP,BATTERY | 80120K2FN00 |
|
| 15 | RIVET,PUSH 6MM | 90116K3VN01 |
|
| 16 | NUT CLIP 5MM. | 90677KANT00 |
|
| 17 | SCREW PAN 5X11.5 | 91509GE2760 |
|
