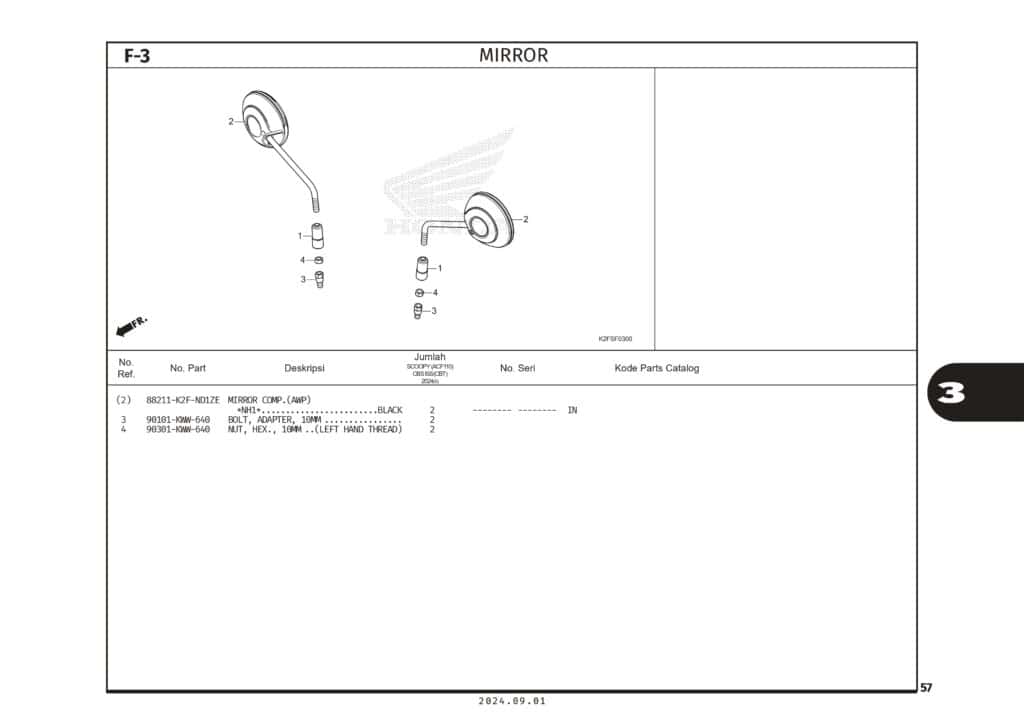

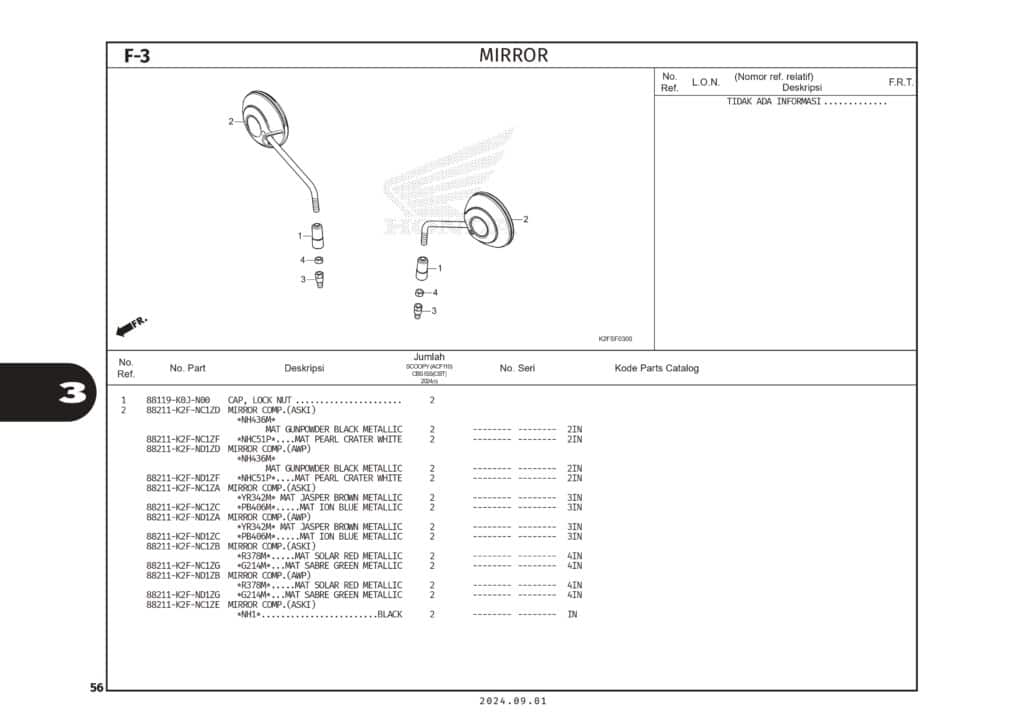

F-3 Mirror – Katalog Honda Scoopy eSP K2FP
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CAP,LOCK NUT |
88119K0JN00 |
|
| 2 |
MIRROR,COMP (MT GN BL) |
88211K2FNC1ZD |
-
|
| 2 |
MIRROR,COMP (MA PR CR) |
88211K2FNC1ZF |
-
|
| 2 |
MIRROR,COMP (MT GN BL) |
88211K2FND1ZD |
-
|
| 2 |
MIRROR,COMP (MA PR CR) |
88211K2FND1ZF |
-
|
| 2 |
MIRROR,COMP (MA JB MT) |
88211K2FNC1ZA |
|
| 2 |
MIRROR,COMP (MA BL MT) |
88211K2FNC1ZC |
|
| 2 |
MIRROR,COMP (MA JB MT) |
88211K2FND1ZA |
-
|
| 2 |
MIRROR,COMP (MA BL MT) |
88211K2FND1ZC |
-
|
| 2 |
MIRROR,COMP (MT SO RED) |
88211K2FNC1ZB |
-
|
| 2 |
MIRROR,COMP (MT SA GR) |
88211K2FNC1ZG |
|
| 2 |
MIRROR,COMP (MT SO RED) |
88211K2FND1ZB |
-
|
| 2 |
MIRROR,COMP (MT SA GR) |
88211K2FND1ZG |
-
|
| 2 |
MIRROR,COMP (BLK) |
88211K2FNC1ZE |
-
|
| 2 |
MIRROR,COMP (BLK) |
88211K2FND1ZE |
-
|
| 3 |
BOLT ADPT 10MM |
90101KWW640 |
|
| 4 |
NUT HEX 10MM |
90301KWW640 |
|
