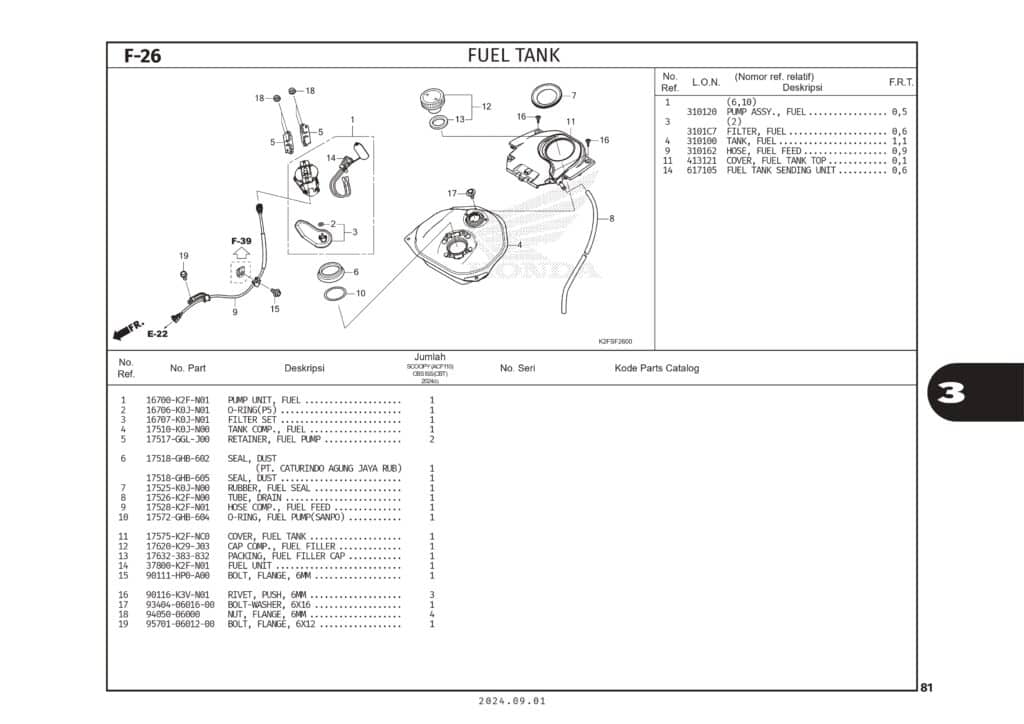

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | UNIT ASSY,FUEL PUMP | 16700K2FN01 |
|
| 2 | O-RING,P5 | 16706K0JN01 |
|
| 3 | FILTER SET | 16707K0JN01 |
|
| 4 | TANK COMP,FUEL | 17510K0JN00 |
|
| 5 | RETAINER FUEL PUMP | 17517GGLJ00 |
|
| 6 | SEAL, DUST | 17518GHB602 |
|
| 6 | SEAL,DUST | 17518GHB605 | - |
| 7 | RUBBER,FUEL SEAL | 17525K0JN00 |
|
| 8 | TUBE,DRAIN | 17526K2FN00 |
|
| 9 | HOSE COMP,FUEL FEED | 17528K2FN01 |
|
| 10 | O-RING,FUEL PUMP | 17572GHB604 |
|
| 11 | COVER,FUEL TANK | 17575K2FNC0 | - |
| 12 | CAP COMP,FUEL FILLER | 17620K29J03 |
|
| 13 | PACKING,FUEL FILLER CAP | 17632383832 |
|
| 14 | FUEL UNIT | 37800K2FN01 |
|
| 15 | BOLT FLANGE 6MM | 90111HP0A00 |
|
| 16 | RIVET,PUSH 6MM | 90116K3VN01 |
|
| 17 | BOLT WASHER 6X16 | 934040601600 |
|
| 18 | NUT,FLANGE 6MM | 9405006000 |
|
| 19 | BOLT FLANGE 6X12 | 957010601200 |
|
