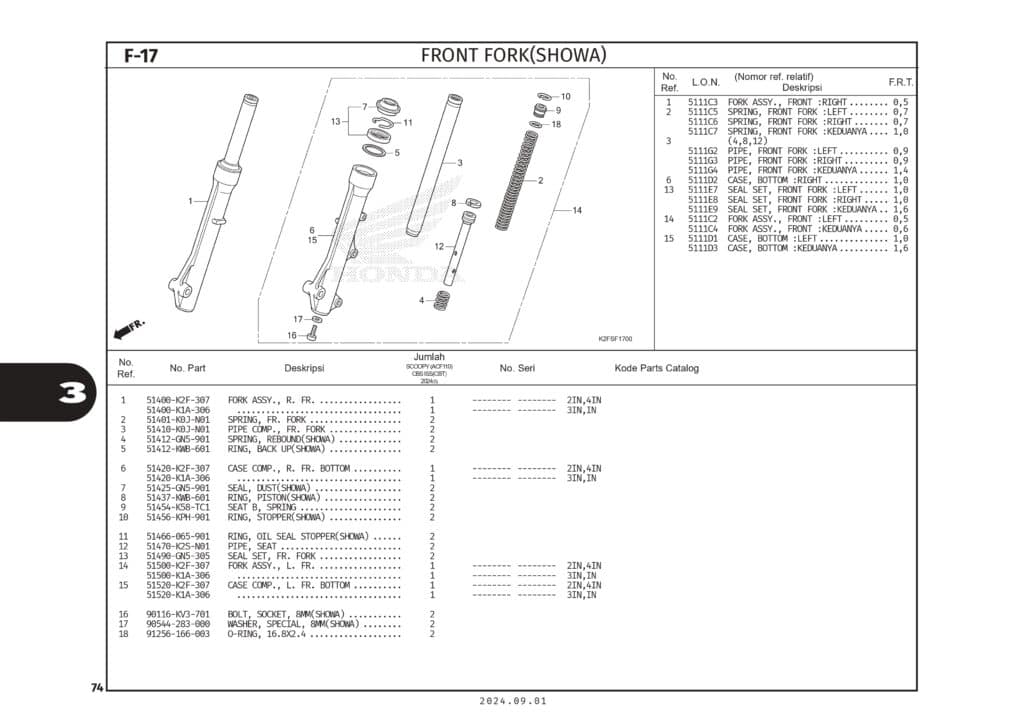

F-17 Front Fork Showa – Katalog Honda Scoopy eSP K2FP

#	Informasi Produk	Visual
1	FORK ASSY,R FRONT Part Number : `51400K2F307`
1	FORK ASSY,R FRONT Part Number : `51400K1A306`
2	SPRING,FR FORK Part Number : `51401K0JN01`
3	PIPE COMP,FR FORK Part Number : `51410K0JN01`
4	SPG REBOUND Part Number : `51412GN5901`
5	RING BACK UP Part Number : `51412KWB601`
6	CASE COMP,R FR BOTTOM Part Number : `51420K2F307`
6	CASE COMP,R FR BOTTOM Part Number : `51420K1A306`
6	CASE COMP,R FR BOTTOM Part Number : `51420K1A305`
7	DUST SEAL FR FORK Part Number : `51425GN5901`
8	RING PISTON Part Number : `51437KWB601`
9	SEAT B,SPRING Part Number : `51454K58TC1`
10	RIMG,STOPPER Part Number : `51456KPH901`
11	RING OIL SEAL Part Number : `51466065901`
12	PIPE, SEAT Part Number : `51470K2SN01`
13	SEAL SET FR FORK Part Number : `51490GN5305`
14	FORK ASSY,L FRONT Part Number : `51500K2F307`
14	FORK ASSY,L FRONT Part Number : `51500K1A306`
15	CASE COMP,L FR BOTTOM Part Number : `51520K2F307`
15	CASE COMP,L FR BOTTOM Part Number : `51520K1A306`
15	CASE COMP,L FR BOTTOM Part Number : `51520K1A305`
16	BOLT,SOCKET 8MM Part Number : `90116KV3701`
17	WASHER SPECIAL (8MM) Part Number : `90544283000`
18	O-RING,FR FORK Part Number : `91256166003`
