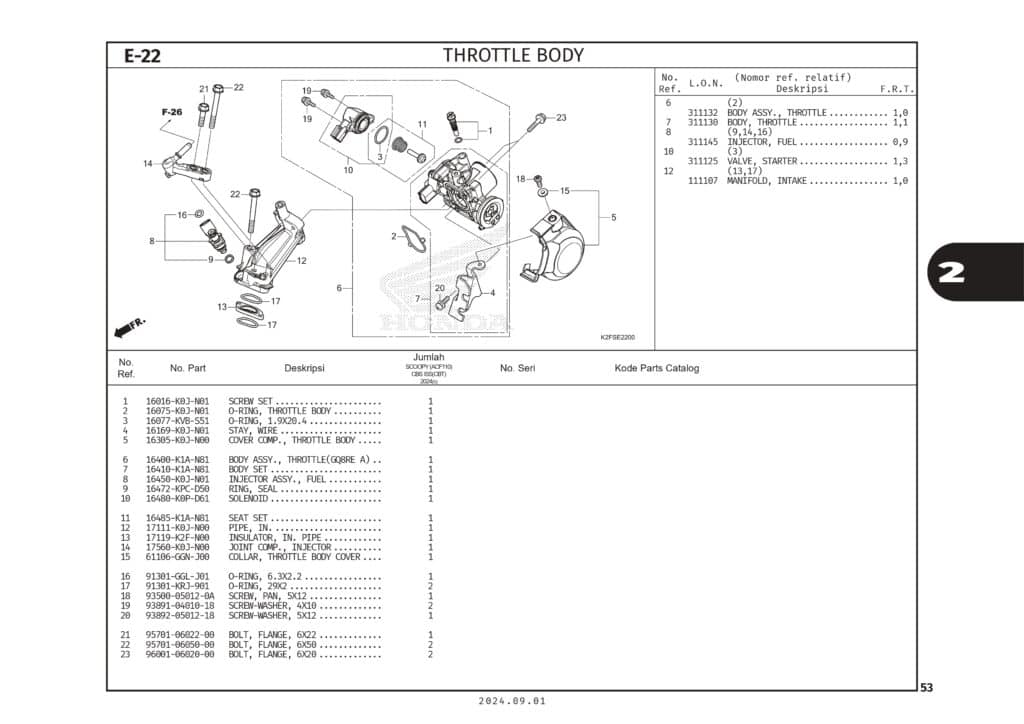

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SCREW SET | 16016K0JN01 |
|
| 2 | O-RING THROTTLEBODY | 16075K0JN01 |
|
| 3 | O-RING 20,4X1,9 | 16077KVBS51 |
|
| 4 | STAY,WIRE | 16169K0JN01 |
|
| 5 | COVER COMP,THROTTLEBODY | 16305K0JN00 |
|
| 6 | THROTTLEBODY ASSY | 16400K1AN81 | - |
| 6 | THROTTLEBODY ASSY | 16400K0JN01 |
|
| 7 | BODY SET | 16410K1AN81 | - |
| 7 | BODY SET | 16410K0JN01 |
|
| 8 | INJECTOR ASSY,FUEL | 16450K0JN01 |
|
| 9 | RING SEAL | 16472KPCD51 |
|
| 10 | SOLENOID SET | 16480K0PD61 | - |
| 11 | SEAT SET | 16485K1AN81 | - |
| 12 | PIPE,INLET | 17111K0JN00 |
|
| 13 | INSULATOR,INLET PIPE | 17119K2FN00 |
|
| 14 | JOINT COMP,INJECTOR | 17560K0JN00 |
|
| 15 | COLLAR,THROTTLE BODY COVER | 61106GGNJ00 |
|
| 16 | O-RING 6,3X2,2 | 91301GGLJ02 |
|
| 17 | O-RING,29X2 | 91301KRJ901 |
|
| 18 | SCREW PAN /M | 93500050120A |
|
| 19 | SCREW-WASHER 4X10 | 938910401018 |
|
| 20 | SCREW WASHER 5X12 | 938920501218 |
|
| 21 | BOLT FLANGE 6X22 | 957010602200 |
|
| 22 | BOLT, FLANGE, 6X50 | 957010605000 |
|
| 23 | BOLT FLANGE 6X20 | 960010602000 |
|
