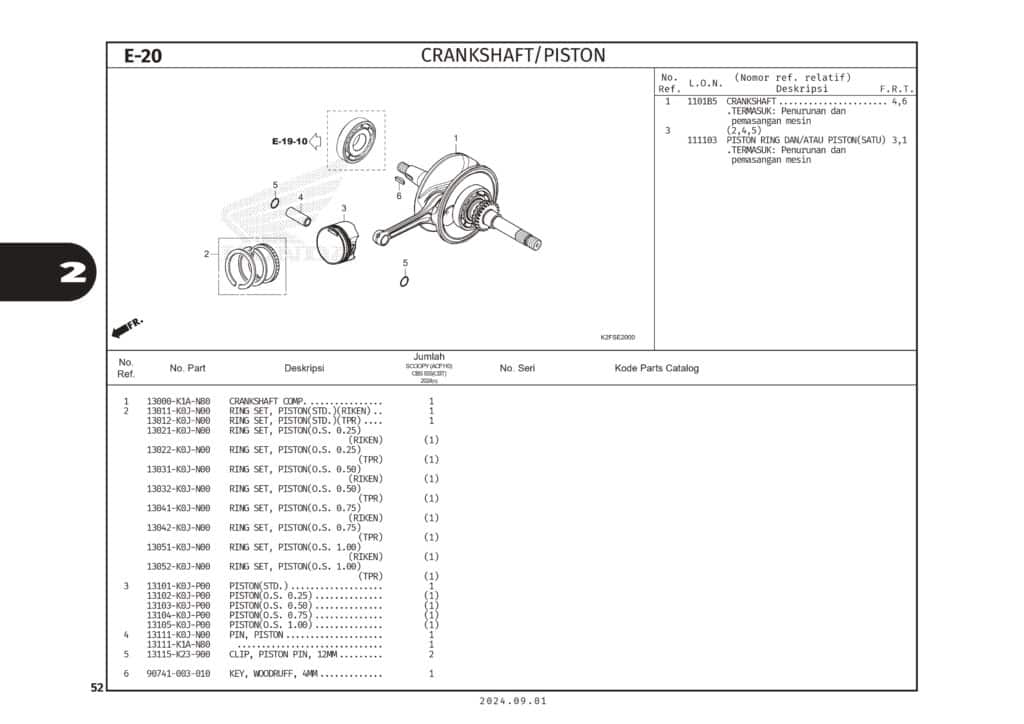

E-20 Crankshaft Piston – Katalog Honda Scoopy eSP K2FP

#	Informasi Produk	Visual
1	CRANK SHAFT COMP Part Number : `13000K1AN80`
2	RING SET,PISTON Part Number : `13011K0JN00`
2	RING SET,PISTON Part Number : `13012K0JN00`
2	RING SET,PISTON OS 0.25 Part Number : `13021K0JN00`
2	RING SET,PISTON OS 0.25 Part Number : `13022K0JN00`
2	RING SET,PISTON OS 0.50 Part Number : `13031K0JN00`
2	RING SET,PISTON OS 0.50 Part Number : `13032K0JN00`
2	RING SET,PISTON OS 0.75 Part Number : `13041K0JN00`
2	RING SET,PISTON OS 0.75 Part Number : `13042K0JN00`
2	RING SET,PISTON OS 1.00 Part Number : `13051K0JN00`
2	RING SET,PISTON OS 1.00 Part Number : `13052K0JN00`
3	PISTON,STD Part Number : `13101K0JP00`
3	PISTON,OS 0.25 Part Number : `13102K0JP00`
3	PISTON,OS 0.50 Part Number : `13103K0JP00`
3	PISTON,OS 0.75 Part Number : `13104K0JP00`
3	PISTON,OS 1.00 Part Number : `13105K0JP00`
4	PIN,PISTON Part Number : `13111K0JN00`
4	PIN,PISTON Part Number : `13111K1AN80`
5	CLIP,PISTON PIN 12MM Part Number : `13115K23900`
6	KEYWOODRUFF 4MM Part Number : `90741003010`
