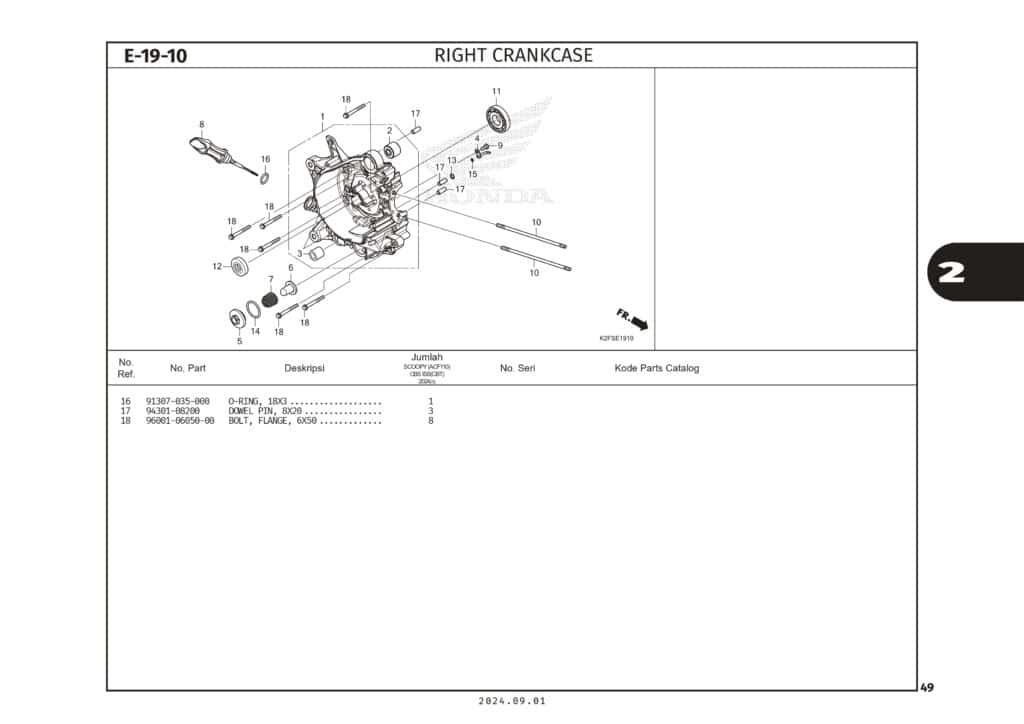

E-19-10 Right Crankcase – Katalog Honda Scoopy eSP K2FP

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100K1AN80`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN00`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN21`
3	BUSH M STAND Part Number : `11205GBC300`
3	BUSH,M STAND Part Number : `11205K0JN00`
4	JET COMP,PISTON Part Number : `15201K1AN80`
5	COVER, OIL FILTER Part Number : `15411K0RV00`
6	SCREEN, OIL FILTER Part Number : `15421K0RV00`
7	SPRING, OIL FILTER SCREEN Part Number : `15426K0RV00`
8	GAUGE,OIL LEVEL Part Number : `15651K1AN80`
8	GAUGE,OIL LEVEL Part Number : `15651K0JN00`
9	BOLT,SPL 6X12 Part Number : `90003K0JN00`
10	BOLT,STUD CYLN Part Number : `90031K0JN00`
11	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K0JN02`
11	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K1AN01`
11	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K1AN81`
11	BRG,BALL,RADIAL 22X56X11.5 Part Number : `91001K2FN01`
12	OIL SEAL,20.8X30.5X6 Part Number : `91201K44V01`
12	OIL SEAL,20.8X30.5X6 Part Number : `91201K50T01`
13	O-RING 8MM Part Number : `91303001010`
14	O-RING,31.2X2.4 Part Number : `91303K0LD00`
14	O-RING, 31.2X2.4 Part Number : `91303K0RV01`
15	O-RING,3.8X1.4 Part Number : `91305K0JN00`
16	O-RING, 18X3 Part Number : `91307035000`
17	DOWEL PIN, 8X20 Part Number : `9430108200`
18	BOLT FLANGE 6X50 Part Number : `960010605000`
