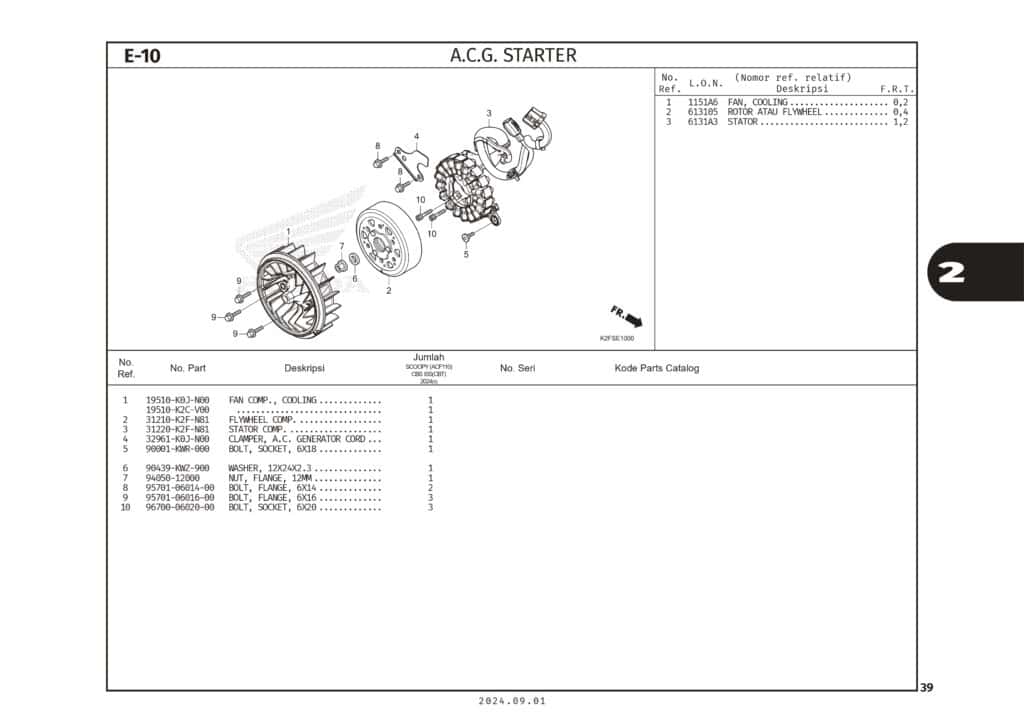

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FAN COMP,COOLING | 19510K0JN00 |
|
| 1 | FAN COMP,COOLING | 19510K2CV00 | - |
| 2 | FLYWHEEL COMP | 31210K2FN81 |
|
| 3 | STATOR COMP | 31220K2FN81 |
|
| 3 | STATOR COMP | 31220K2FN01 |
|
| 4 | CLAMP,ACG CORD | 32961K0JN00 |
|
| 5 | BOLT, SOCKET, 6X18 | 90001KWR000 |
|
| 6 | WASHER 12X24X2.3 | 90439KWZ900 |
|
| 7 | NUT,FLANGE 12MM | 9405012000 |
|
| 8 | BOLT FLANGE 6X14 | 957010601400 |
|
| 9 | BOLT FLANGE 6X16 | 957010601600 |
|
| 10 | BOLT SOCKET 6X20 | 967000602000 |
|
