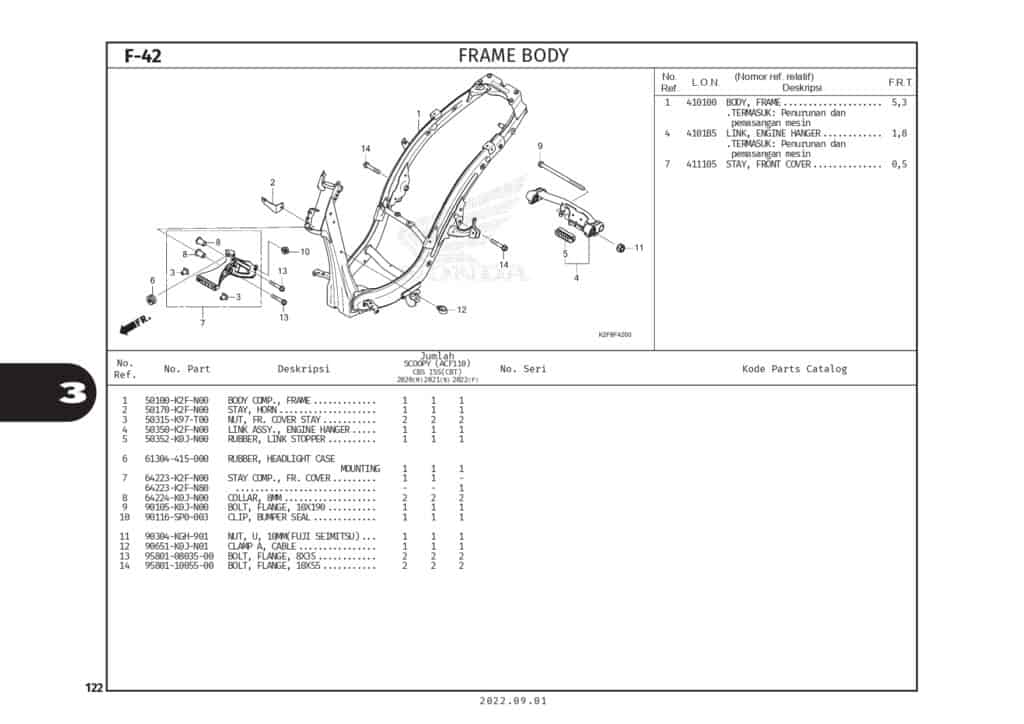

F-42 Frame Body – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	BODY COMP., FRAME Part Number : `50100K2FN00`
2	STAY, HORN Part Number : `50170K2FN00`
3	NUT, FR. COVER STAY Part Number : `50315K97T00`
4	LINK ASSY., ENGINE HANGER Part Number : `50350K2FN00`
5	RUBBER, LINK STOPPER Part Number : `50352K0JN00`
6	RUBBER, HEADLIGHT CASE MOUNTING 1 Part Number : `61304415000`
7	STAY COMP., FR. COVER Part Number : `64223K2FN00`
7	STAY COMP., FR. COVER Part Number : `64223K2FN80`
8	COLLAR, 8MM Part Number : `64224K0JN00`
9	BOLT, FLANGE, 10X190 Part Number : `90105K0JN00`
10	RIVET, PUSH, 6MM Part Number : `90116K0AE11`
11	NUT, U, 10MM Part Number : `90304KGH901`
12	CLAMP A, CABLE Part Number : `90651K0JN01`
13	BOLT, FLANGE, 8X35 Part Number : `958010803500`
14	BOLT, FLANGE, 10X55 Part Number : `958011005500`
