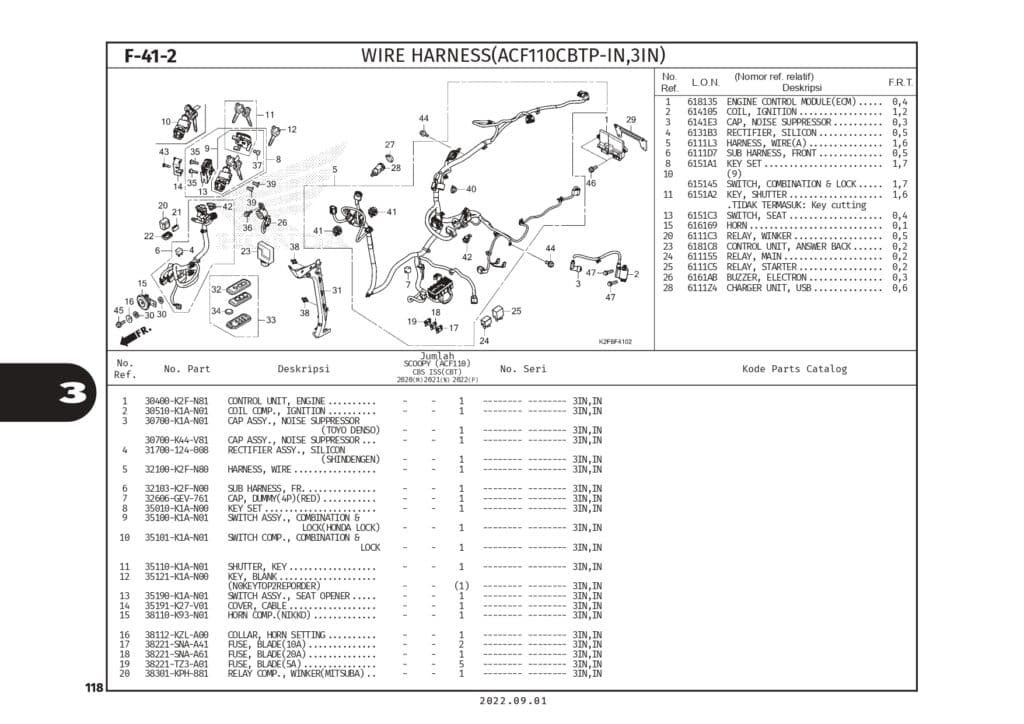

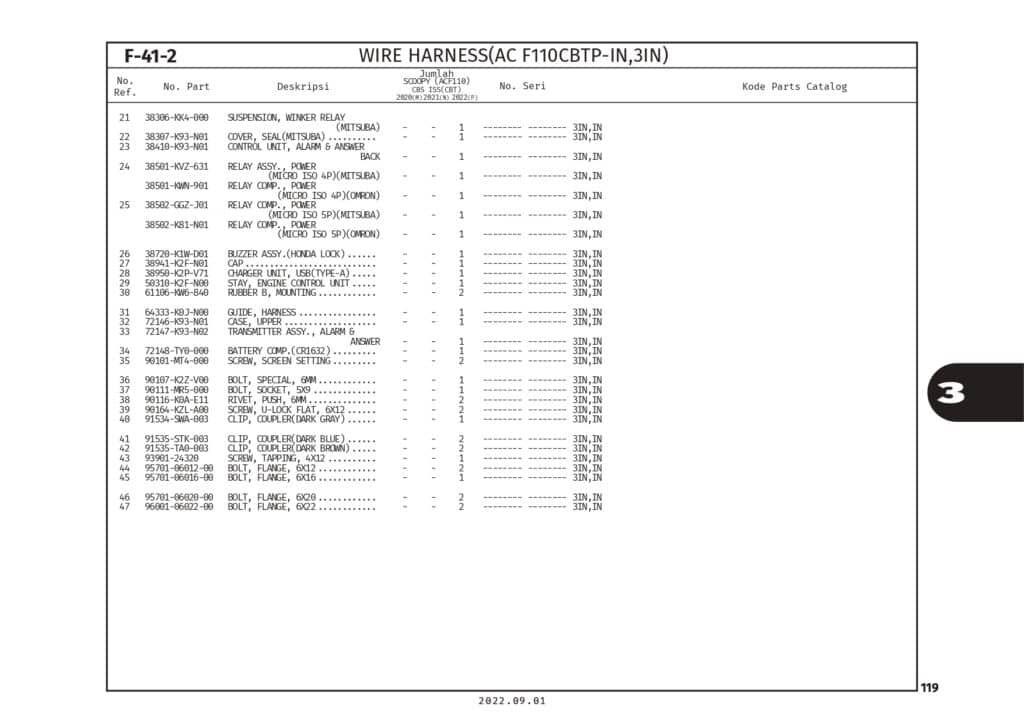

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ENG CONTROL UNIT | 30400K2FN81 |
|
| 2 | COIL COMP,IGN(MP39) | 30510K1AN01 |
|
| 3 | CAP ASSY,NOISE SUPPRESSOR | 30700K1AN01 |
|
| 3 | CAP ASSY,NOISE SUPPRESSOR | 30700K44V81 |
|
| 4 | RECTIFIER SILICON | 31700124008 |
|
| 5 | HARNESS WIRE | 32100K2FN80 |
|
| 6 | SUB HARNESS,FR | 32103K2FN00 |
|
| 7 | DUMMY,WPC 4P 090 M (RED) | 32606GEV761 |
|
| 8 | KEY SET | 35010K1AN00 |
|
| 9 | SWITCH ASSY COMB & LOCK | 35100K1AN01 |
|
| 10 | SWITCH COMP,COMB&LOCK | 35101K1AN01 |
|
| 11 | SHUTTER,KEY | 35110K1AN01 |
|
| 12 | KEY,BLANK | 35121K1AN00 |
|
| 13 | SW ASSY,SEAT OPENER | 35190K1AN01 |
|
| 14 | COVER CABLE | 35191K27V01 |
|
| 15 | HORN COMP | 38110K93N01 |
|
| 16 | COLLAR HORN SETTING | 38112KZLA00 |
|
| 17 | FUSE, BLADE(10A) | 38221SNAA41 |
|
| 18 | BLADE FUSE,20A LOW-PROFILE | 38221SNAA61 |
|
| 19 | BLADE FUSE,5A(LOW-PROFILE) | 38221TZ3A01 |
|
| 20 | RELAY COMP WINKER | 38301KPH881 |
|
| 21 | SUSPENSION RELAY | 38306KK4000 |
|
| 22 | COVER SEAL | 38307K93N01 |
|
| 23 | CONTROL UNIT ALARM | 38410K93N01 |
|
| 24 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 24 | RELAY COMP., POWER | 38501KWN901 |
|
| 25 | RELAY COMP POWER | 38502GGZJ01 |
|
| 25 | RELAY COMP POWER | 38502K81N01 |
|
| 26 | BUZZER ASSY | 38720K1WD01 |
|
| 27 | CAP | 38941K2FN01 |
|
| 28 | UNIT COMP,USB CHARGER (TYPE-A) | 38950K2PV71 |
|
| 29 | STAY, ECU | 50310K2FN00 |
|
| 30 | RUBBER B, MOUNTING | 61106KW6840 |
|
| 31 | GUIDE,HARNESS | 64333K0JN00 |
|
| 32 | CASE UPPER | 72146K93N01 |
|
| 33 | TRANSMITTER ASSY | 72147K93N02 |
|
| 34 | BATTREY | 72148TY0000 | - |
| 35 | SCREW,SCREEN SET | 90101MT4000 |
|
| 36 | BOLT.SPECIAL 6MM | 90107K2ZV00 |
|
| 37 | BOLT,SOCKET,5X9 | 90111MR5000 |
|
| 38 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 39 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 40 | CLIP, COUPLER(DARK GRAY) | 91534SWA003 |
|
| 41 | CLIP COUPLER | 91535STK003 |
|
| 42 | CLIP, COUPLER(DARK BROWN) | 91535TA0003 |
|
| 43 | SCREW,TAPP 4X12 | 9390124320 |
|
| 44 | BOLT FLANGE 6X12 | 957010601200 |
|
| 45 | BOLT FLANGE 6X16 | 957010601600 |
|
| 46 | BOLT FLANGE 6X20 | 957010602000 |
|
| 47 | BOLT FLANGE 6X22 | 960010602200 |
|
