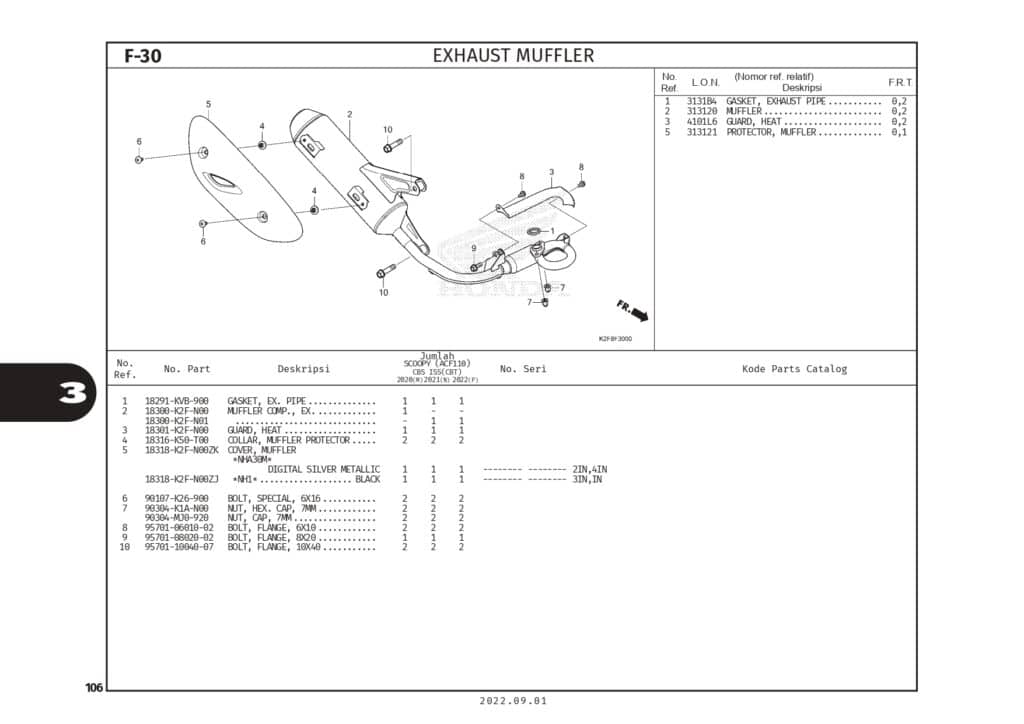

F-30 Exhaust Muffler – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	GASKET, EX. PIPE Part Number : `18291KVB900`
2	MUFFLER COMP., EX Part Number : `18300K2FN00`
2	MUFFLER COMP Part Number : `18300K2FN01`
3	GUARD, HEAT Part Number : `18301K1AN00`
3	Heat Guard Part Number : `18301K2FN00`
4	COLLAR, MUFFLER PROTECTOR Part Number : `18316K50T00`
5	COVER, MUFFLER NHA30M DIGITAL SILVER METALLIC Part Number : `18318K2FN00ZK`
5	NH1 BLACK Part Number : `18318K2FN00ZJ`
6	BOLT, SPECIAL, 6X16 Part Number : `90107K26900`
7	NUT, HEX. CAP, 7MM Part Number : `90304K1AN00`
7	NUT, CAP, 7MM Part Number : `90304MJ0920`
8	BOLT, FLANGE, 6X10 Part Number : `957010601002`
9	BOLT, FLANGE, 8X20 Part Number : `957010802002`
10	BOLT, FLANGE, 10X40 Part Number : `957011004007`
