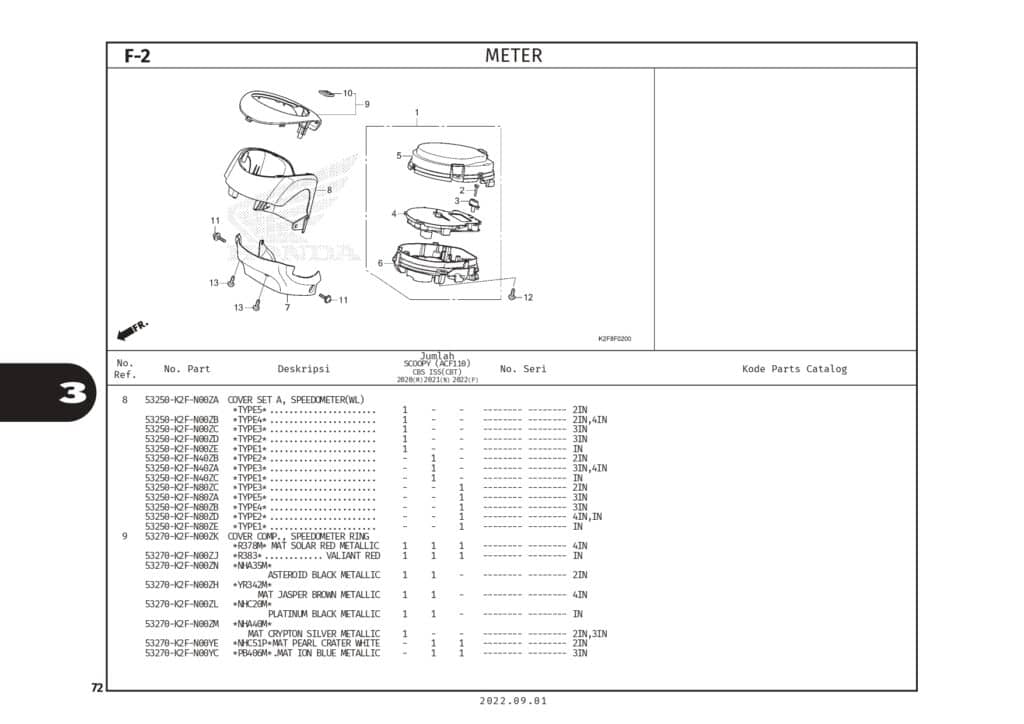

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | METER ASSY,COMB | 37100K2FN11 |
|
| 1 | METER ASSY,COMB | 37100K2FN01 |
|
| 1 | METER ASSY,COMB | 37100K2FN91 |
|
| 1 | METER ASSY,COMB | 37100K2FN81 |
|
| 2 | ROD, SW | 37203K2FN01 |
|
| 3 | ROD, SW COVER | 37204K2FN01 |
|
| 4 | SPEEDOMETER COMP | 37210K2FN11 |
|
| 4 | SPEEDOMETER COMP | 37210K2FN01 |
|
| 4 | SPEEDOMETER COMP | 37210K2FN91 |
|
| 4 | SPEEDOMETER COMP | 37210K2FN81 |
|
| 5 | LENS ASSY | 37211K2FN01 |
|
| 6 | CASE UNDER ASSY | 37212K2FN01 |
|
| 7 | COVER B, SPDMT (MT GN BL) | 53206K2FN00ZK |
|
| 7 | COVER B, SPDMT (MA JB MT) | 53206K2FN00ZU |
|
| 7 | COVER B, SPDMT (MA SD SL) | 53206K2FN00ZM |
|
| 7 | COVER B, SPDMT (MT GN BL) | 53206K2FN00ZK |
|
| 7 | COVER B, SPDMT (VI BE) | 53206K2FN00ZJ |
|
| 7 | COVER B, SPDMT (MT CR SL) | 53206K2FN00ZN |
|
| 7 | COVER B, SPDMT (BLK) | 53206K2FN00ZL |
|
| 7 | COVER B, SPDMT (RO WH) | 53206K2FN00YA |
|
| 7 | Cover B Spdmt (MA BL MT) | 53206K2FN00YE |
|
| 8 | Cover A Spdmt (MT BU SL) | 53205K2FNH0MBS |
|
| 8 | Cover A Spdmt (MA JB MT) | 53205K2FN00MJB |
|
| 8 | Cover A SPDMT (MA SD SL) | 53205K2FN00MSS |
|
| 8 | Cover A Spdmt (BLK) | 53205K2FN00FMB |
|
| 8 | Cover A SPDMT (VI BE) | 53205K2FN00VBE |
|
| 8 | Cover A Spdmt (MA BL MT) | 53205K2FN00MIB |
|
| 8 | Cover A Spdmt (MT GN BL) | 53205K2FN00MGB |
|
| 8 | Cover A Spdmt (RO WH) | 53205K2FN00RSW |
|
| 9 | Cover Ring SPDMT (PL BL ME) | 53207K2FN00PBL |
|
| 9 | Cover Ring Speedometer (MT SA GR) | 53207K2FN00MSG |
|
| 9 | Cover Ring Speedometer (MA PR CR) | 53207K2FN00MPC |
|
| 9 | Cover Ring SPDMT | 53207K2FN00VRD |
|
| 9 | COVER RINGSPDMT (MT CR SL) | 53207K2FN00MCS |
|
| 9 | Cover Ring SPDMT (MA JB MT) | 53207K2FN00MJB |
|
| 9 | Cover Ring SPDMT (AS BK MT) | 53207K2FN00ASB |
|
| 9 | Cover Ring Speedometer (MT SO RED) | 53207K2FN00MSR |
|
| 9 | Cover Ring Speedometer (MT GN BL) | 53207K2FN00MGB |
|
| 9 | Cover Ring Speedometer (MA SD SL) | 53207K2FN00MSS |
|
| 9 | Cover Ring Speedometer (MA BL MT) | 53207K2FN00MIB |
|
| 10 | EMBLEM, WING MARK | 86150KPG901 |
|
| 10 | EMBLEM,PRODUCT (UEHARA) | 86150KPG902 |
|
| 10 | EMBLEM,PRODUCT | 86150KTJC60 |
|
| 11 | SCREW PAN 5X16 | 90107K93N00 |
|
| 12 | SCREW TAPPING 5X16 | 9390325310 |
|
| 13 | SCREW TAPPING 4X12 | 9390334380 |
|
