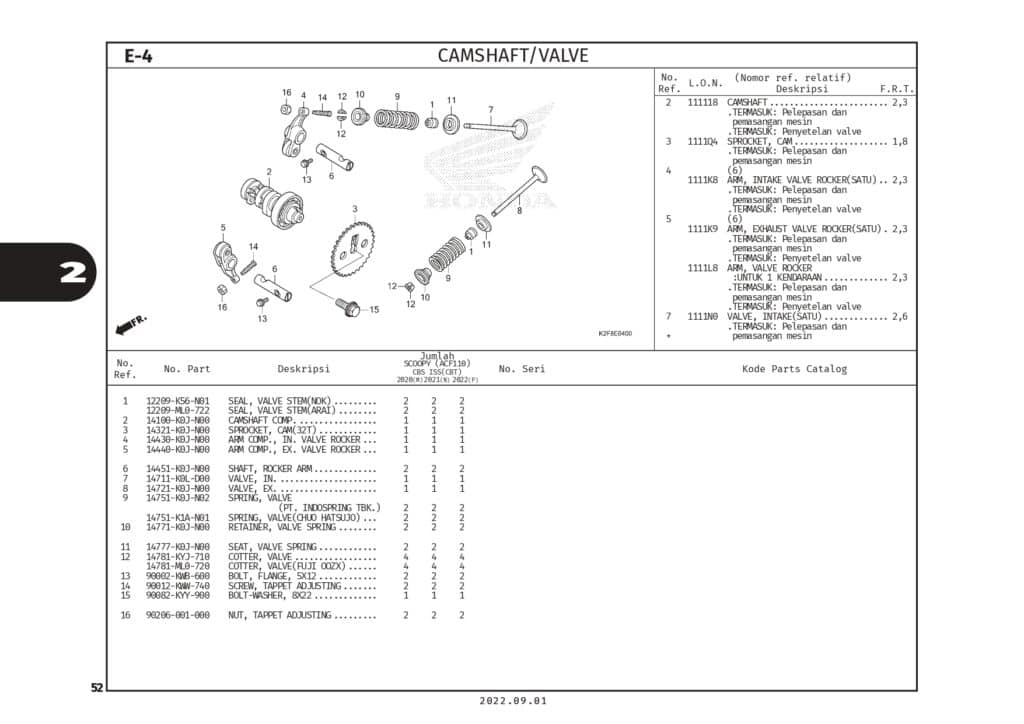

E-4 Camshaft/Valve – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	SEAL, VALVE STEM(NOK) Part Number : `12209K56N01`
1	SEAL,VLV.STEM Part Number : `12209ML0722`
2	SHAFT COMP,CAM Part Number : `14100K0JN00`
3	SPROCKET,CAM Part Number : `14321K0JN00`
4	ARM COMP,IN VALVE ROCKER Part Number : `14430K1AN00`
4	ARM COMP,IN VALVE ROCKER Part Number : `14430K0JN00`
5	ARM COMP,EXH VALVE ROCKER Part Number : `14440K1AN00`
5	ARM COMP,EXH VALVE ROCKER Part Number : `14440K0JN00`
6	SHAFT,ROCKER ARM Part Number : `14451K0JN00`
7	VALVE,INLET Part Number : `14711K0LD00`
8	VALVE,EXHAUST Part Number : `14721K0JN00`
9	SPG,VALVE Part Number : `14751K0JN02`
9	SPG,VALVE Part Number : `14751K1AN01`
10	RETAINER,VALVE SPRING Part Number : `14771K0JN00`
11	SEAT,VALVE SPG Part Number : `14777K0JN00`
12	COTTER,VALVE Part Number : `14781KYJ710`
12	COTTER,VALVE Part Number : `14781ML0720`
13	BOLT FLANGE 5X12 Part Number : `90002KWB600`
14	SCREW TAPPET ADJUSTING Part Number : `90012KWW740`
15	BOLT,WASHER 8X22 Part Number : `90082KYY900`
16	NUT,TAPPET ADJUST Part Number : `90206001000`
