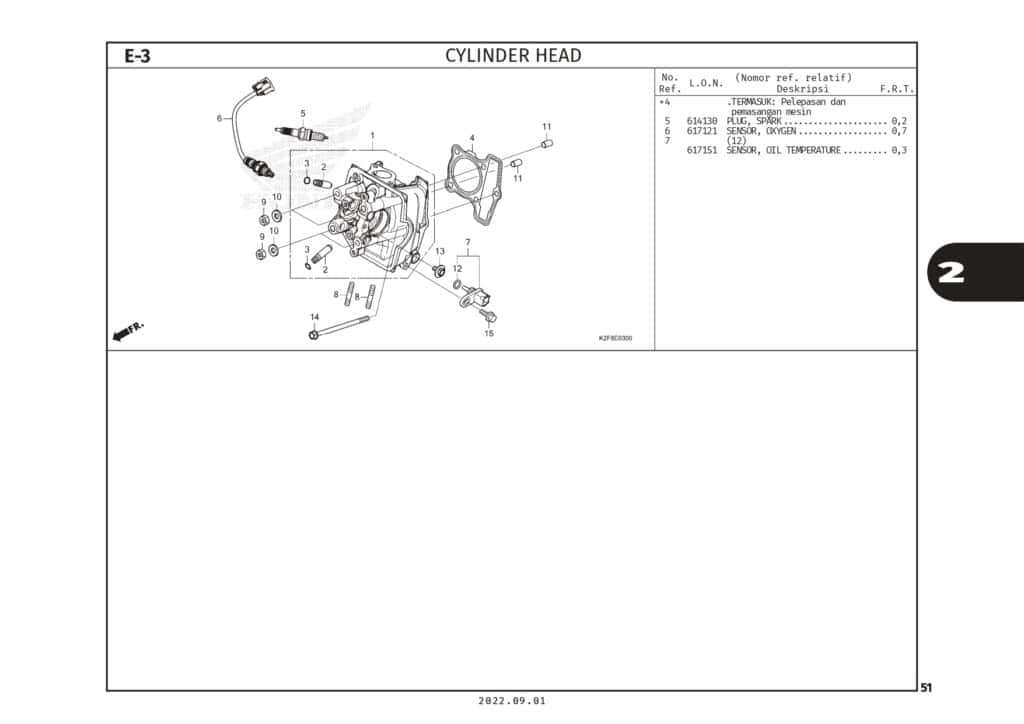

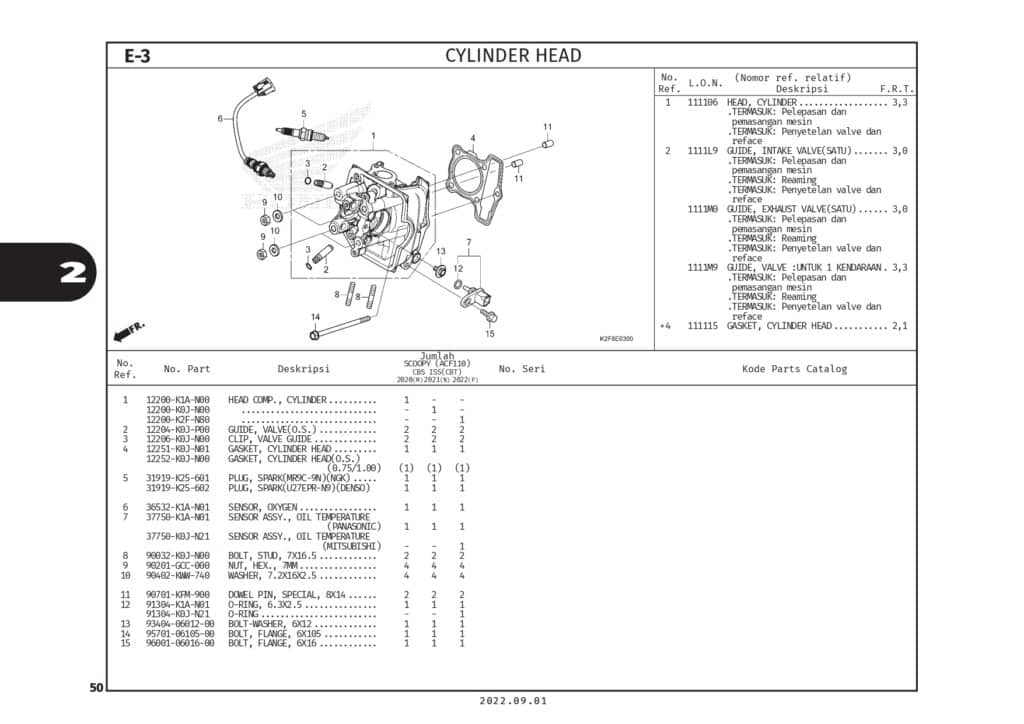

E-3 Cylinder Head – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	HEAD COMP,CYLINDER Part Number : `12200K1AN00`
1	HEAD COMP,CYLINDER Part Number : `12200K0JN00`
1	HEAD COMP,CYLINDER Part Number : `12200K2FN80`
2	GUIDE,VALVE(OVER SIZE) Part Number : `12204K0JP00`
3	CLIP,VALVE GUIDE Part Number : `12206K0JN00`
4	GASKET,CYLINDER HEAD Part Number : `12251K0JN01`
4	GASKET,CYLINDER HEAD(OS) Part Number : `12252K0JN00`
5	SPARK PLUG MR9C9N (NGK) Part Number : `31919K25601`
5	SPARK PLUG U27EPR-N9 (DS) Part Number : `31919K25602`
6	SENSOR,OXYGEN Part Number : `36532K1AN01`
7	SENSOR ASSY,T-OIL Part Number : `37750K1AN01`
7	SENSOR ASSY,T-OIL Part Number : `37750K0JN21`
8	BOLT,STUD 7X16.5 Part Number : `90032K0JN00`
9	NUTHEX 7MM Part Number : `90201GCC000`
10	WASHER 7.2X16X2.5 Part Number : `90402KWW740`
11	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
12	O-RING,6.3X2.5 Part Number : `91304K1AN01`
12	O-RING,6.3X2.5 Part Number : `91304K0RV00`
13	BOLT WASHER 6X12 Part Number : `934040601200`
14	BOLT FLANGE 6X105 Part Number : `957010610500`
15	BOLT FLANGE SH 6X16 Part Number : `960010601600`
