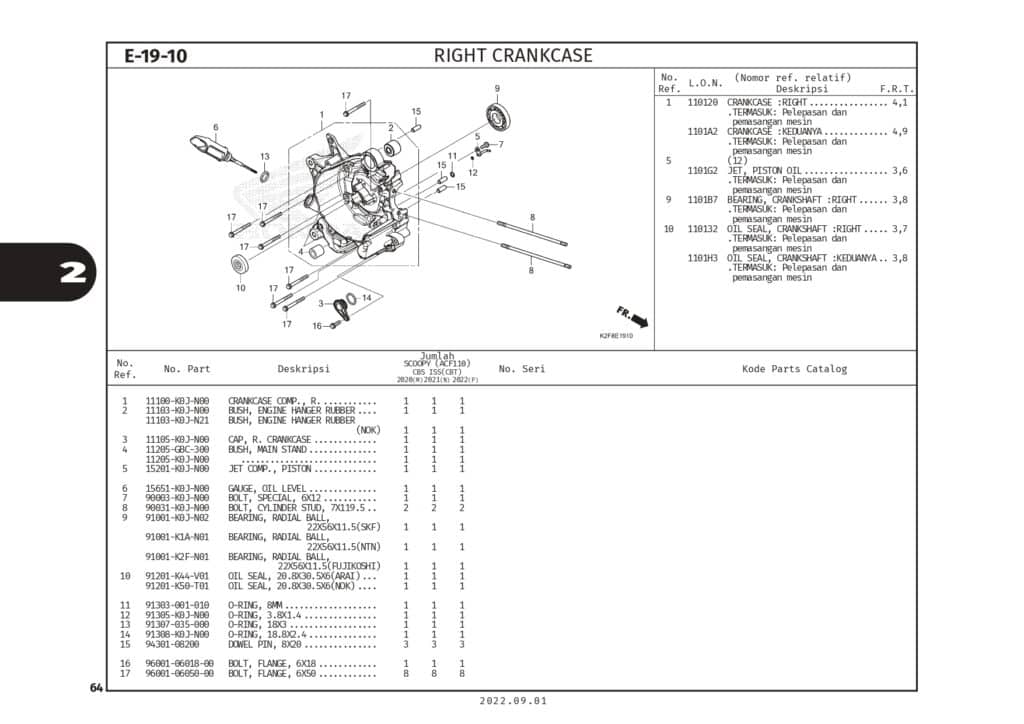

E-19-10 Right Crankcase – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100K0JN00`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN00`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN21`
3	CAP,R CRANK CASE Part Number : `11105K0JN00`
4	BUSH M STAND Part Number : `11205GBC300`
4	BUSH,M STAND Part Number : `11205K0JN00`
5	JET COMP,PISTON Part Number : `15201K0JN00`
6	GAUGE,OIL LEVEL Part Number : `15651K0JN00`
7	BOLT,SPL 6X12 Part Number : `90003K0JN00`
8	BOLT,STUD CYLN Part Number : `90031K0JN00`
9	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K0JN02`
9	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K1AN01`
9	BRG,BALL,RADIAL 22X56X11.5 Part Number : `91001K2FN01`
9	BRG,BALL,RADIAL 22X56X11.5 Part Number : `91001K1AN81`
10	OIL SEAL,20.8X30.5X6 Part Number : `91201K44V01`
10	OIL SEAL,20.8X30.5X6 Part Number : `91201K50T01`
11	O-RING 8MM Part Number : `91303001010`
12	O-RING,3.8X1.4 Part Number : `91305K0JN00`
13	O-RING, 18X3 Part Number : `91307035000`
14	O-RING,18.8X2.4 Part Number : `91308K0JN00`
15	DOWEL PIN, 8X20 Part Number : `9430108200`
16	BOLT FLANGE SH 6X18 Part Number : `960010601800`
17	BOLT FLANGE 6X50 Part Number : `960010605000`
