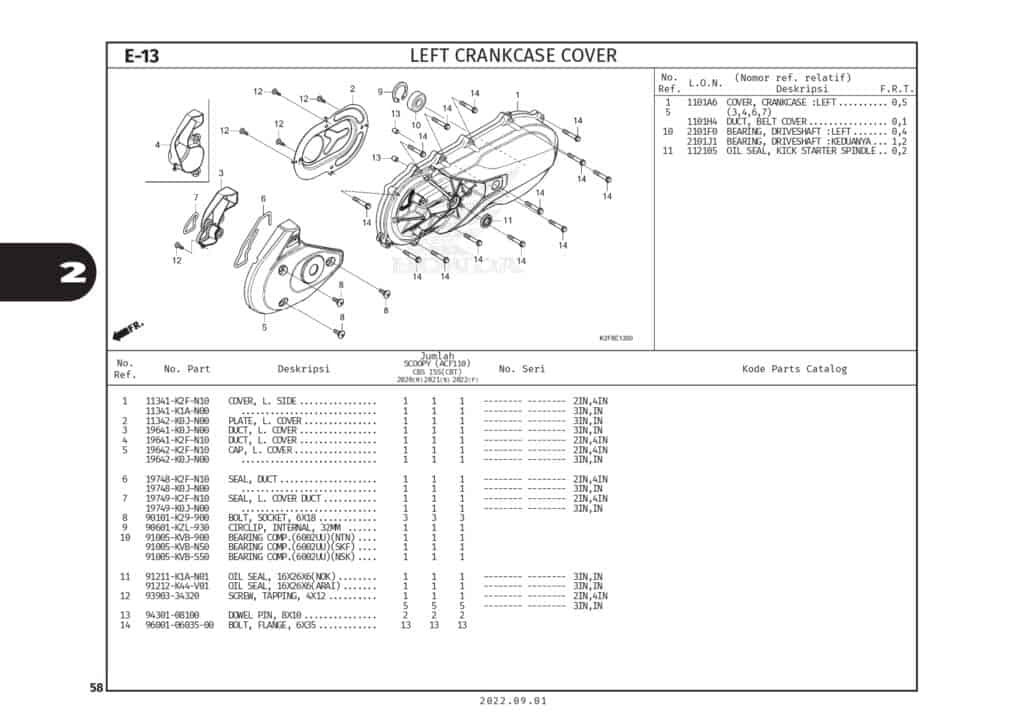

E-13 Left Crankcase Cover – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	COVER,L SIDE Part Number : `11341K2FN10`
1	COVER,L SIDE Part Number : `11341K1AN00`
2	PLATE,L COVER Part Number : `11342K0JN00`
3	DUCT,L COVER Part Number : `19641K0JN00`
4	DUCT,L COVER Part Number : `19641K2FN10`
5	CAP,L COVER Part Number : `19642K2FN10`
5	CAP,L COVER Part Number : `19642K0JN00`
6	SEAL,DUCT Part Number : `19748K2FN10`
6	SEAL,DUCT Part Number : `19748K0JN00`
7	SEAL,L COVER DUCT Part Number : `19749K2FN10`
7	SEAL,L COVER DUCT Part Number : `19749K0JN00`
8	BOLT SOCKET 6X18 Part Number : `90101K29900`
8	BOLT SOCKET 6X18 Part Number : `90001KWR000`
9	CIRCLIP IN.32 Part Number : `90601KZL930`
10	BRG,COMP DRIVE SHAFT Part Number : `91005KVBN50`
10	BRG,COMP DRIVE SHAFT Part Number : `91010K1AN80`
11	OIL, SEAL 16X26X6 Part Number : `91211K1AN01`
11	OIL SEAL, 16X26X6 Part Number : `91212K44V01`
12	SCREW TAPPING 4X12 Part Number : `9390334320`
13	PIN DOWEL 8X10 Part Number : `9430108100`
14	BOLT FLANGE 6X35 Part Number : `960010603500`
