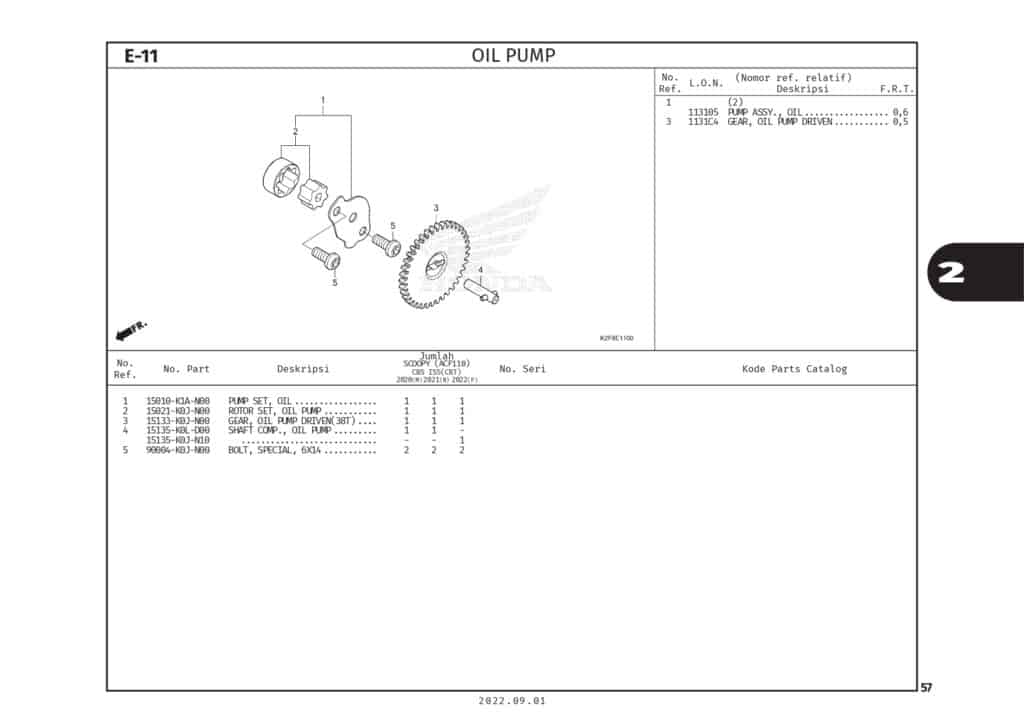

E-11 Oil Pump – Katalog Honda Scoopy eSP K2F
Technical Diagram
Daftar Suku Cadang
# Informasi Produk Visual
1
OIL PUMP SET
Part Number : 15010K1AN00
OIL PUMP SET
2
ROTOR SET,OIL PUMP
Part Number : 15021K0JN00
ROTOR SET,OIL PUMP
3
GEAR,OIL PUMP DRIVEN
Part Number : 15133K0JN00
GEAR,OIL PUMP DRIVEN
4
SHAFT COMP,OIL PUMP
Part Number : 15135K0LD00
SHAFT COMP,OIL PUMP
4
SHAFT COMP,OIL PUMP
Part Number : 15135K0JN10
SHAFT COMP,OIL PUMP
5
BOLT,SPL 6X14
Part Number : 90004K0JN00
BOLT,SPL 6X14
