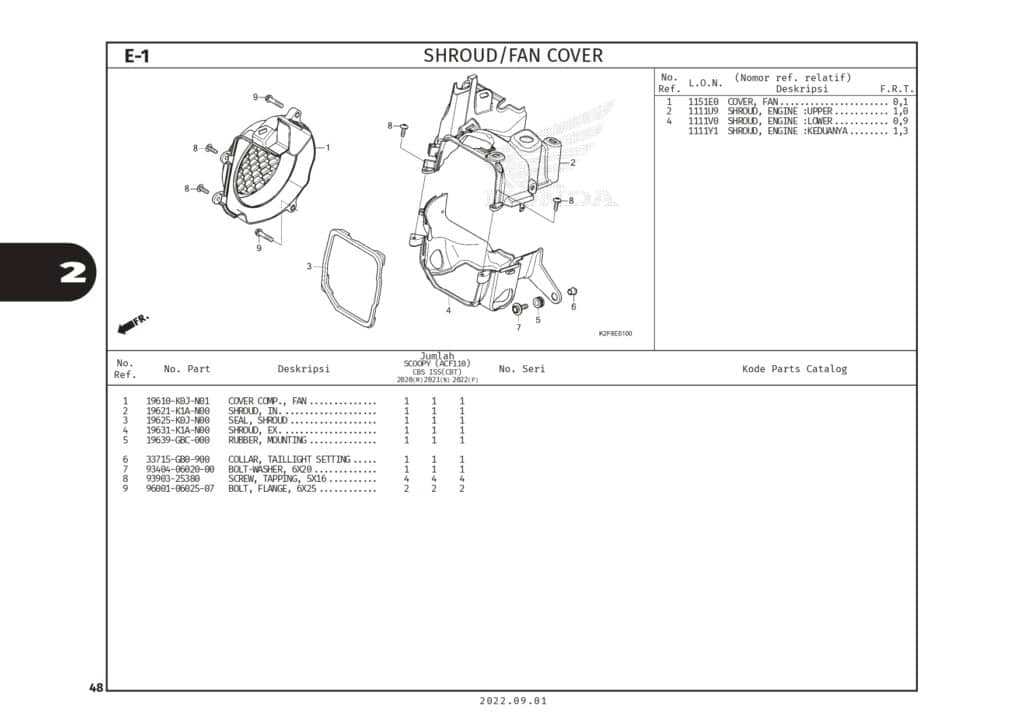

E-1 Shroud/Fan Cover – Katalog Honda Scoopy eSP K2F

#	Informasi Produk	Visual
1	COVER COMP,COOLING FAN Part Number : `19610K0JN01`
2	SHROUD,INLET Part Number : `19621K1AN00`
3	SEAL,SHROUD Part Number : `19625K0JN00`
4	SHROUD,EXHAUST Part Number : `19631K1AN00`
5	RUBBER MOUNT Part Number : `19639GBC000`
6	COLLAR TAILLIGHT SETTING Part Number : `33715GB0900`
7	BOLT WASHER 6X20 Part Number : `934040602000`
7	BOLT WASHER 6X20 Part Number : `934040602008`
8	SCREW, TAPPING, 5X16 Part Number : `9390325380`
9	BOLT,FLANGE 6X25 Part Number : `960010602507`
