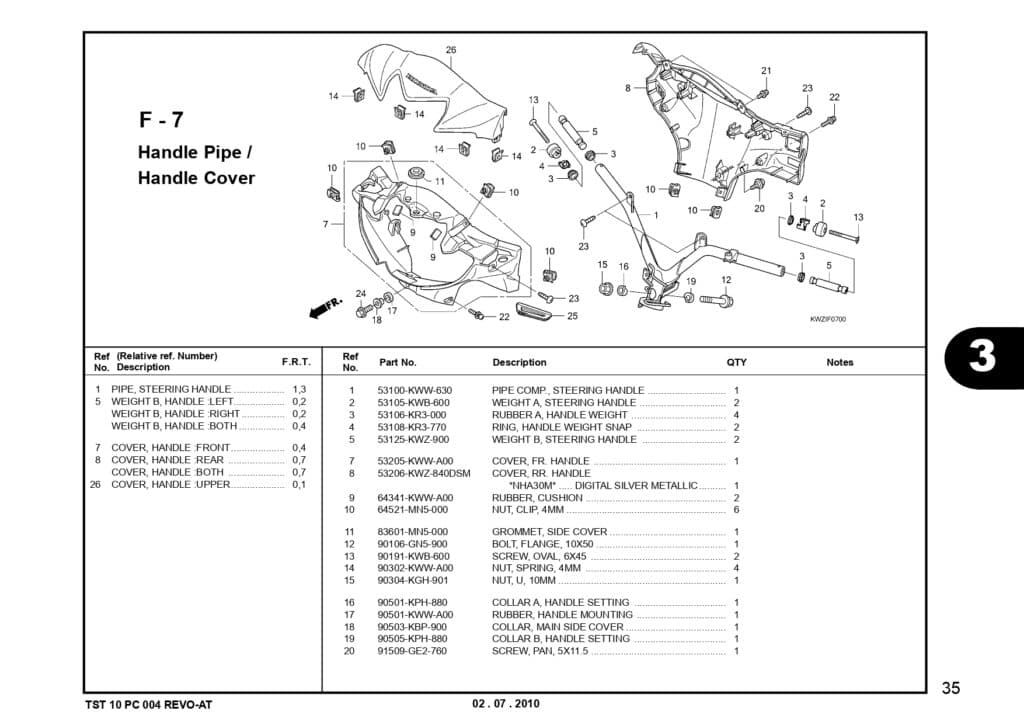

F-7 Handle Pipe Handle Cover – Katalog Suku cadang Honda Revo AT

#	Informasi Produk	Visual
1	PIPE COMP STRG HANDLE Part Number : `53100KWW630`
2	WEIGHT A STRG HDL Part Number : `53105KWB600`
3	RUBBER A HANDLE WEIGHT Part Number : `53106KR3000`
4	RING HDL WHT SNAP Part Number : `53108KR3770`
5	WEIGHT B STRG HDL Part Number : `53125KWZ900`
7	53205KWWA00 Part Number : `53205KWWA00`
8	COVER HDL RR(DG SL MT) Part Number : `53206KWZ840DSM`
9	RUBBER CUSHION Part Number : `64341KWWA00`
10	NUT CLIP 4MM Part Number : `64521MN5000`
11	GROMMET SIDE COVER Part Number : `83601MN5000`
12	BOLT FLANGE 10X50 Part Number : `90106GN5900`
13	SCREW OVAL 6X45 Part Number : `90191KWB600`
14	NUT SPRING 4MM Part Number : `90302KWWA00`
15	NUT U10MM Part Number : `90304KGH901`
16	COLLAR A HDL SET Part Number : `90501KPH880`
17	RUBBER COVER HDL MT Part Number : `90501KWWA00`
18	COLLAR MAIN SIDE COVER Part Number : `90503KBP900`
19	COLLAR B HDL SET Part Number : `90505KPH880`
20	SCREW PAN 5X11.5 Part Number : `91509GE2760`
21	SCREW WASHER 4X12 Part Number : `938910401207`
22	SCREW WASHER 4X16 Part Number : `938910401608`
23	SCREW, TAPPING, 4X16 Part Number : `9390324480`
24	BOLT FLANGE SH 6X16 Part Number : `960010601600`
25	RUBBER CAP HDL FR COVER Part Number : `53208KWZ840`
26	COVER HDL TOP(AF BK MT) Part Number : `53203KWWA00AFB`
26	COVER HDL TOP(PR OD VL) Part Number : `53203KWWA00POV`
26	COVER HDL TOP(CN SC RD) Part Number : `53203KWWA00CSR`
