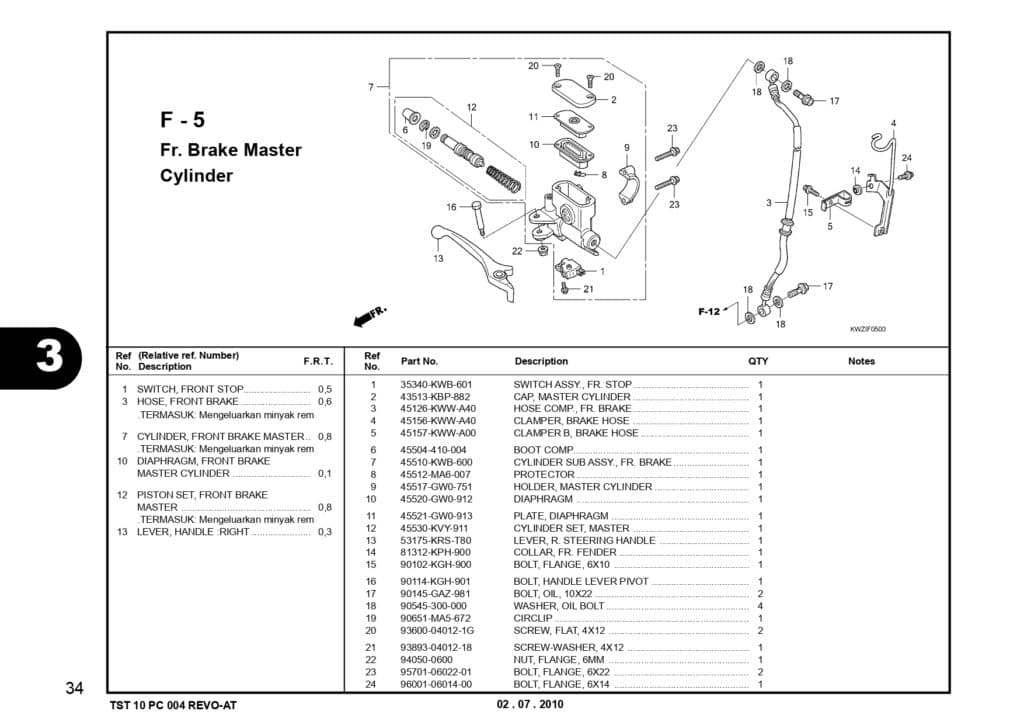

F-5 Fr Brake Master Cylinder – Katalog Suku cadang Honda Revo AT

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340KWB601`
2	CAP M/C Part Number : `43513KBP881`
3	HOSE COMP FR BRK Part Number : `45126KWWA40`
4	CLAMPER BRAKE HOSE Part Number : `45156KWWA40`
5	CLAMPER B BRK HOSE Part Number : `45157KWWA00`
6	BOOT COMP Part Number : `45504410004`
7	CYLINDER SUB ASSY F Part Number : `45510KWB600`
8	PROTECTOR Part Number : `45512MA6006`
9	HOLDER M/C Part Number : `45517GW0751`
10	DIAPHRAGM Part Number : `45520GW0911`
11	PLATE DIAPHRAGM Part Number : `45521GW0913`
12	CYLINDER SET MASTER Part Number : `45530KVY911`
13	LEVER R STRG HDL Part Number : `53175KRST80`
14	COLLAR FR FENDER Part Number : `81312KPH900`
15	BOLT FLANGE 6X10 Part Number : `90102KGH900`
16	BOLT HANDLE LEVER Part Number : `90114KGH900`
16	Bolt Handle Lever Part Number : `90114KGH900`
17	BOLT OIL 10X22 Part Number : `90145GAZ981`
18	WASHER OIL BOLT Part Number : `90545300000`
19	CIRCLIP Part Number : `90651MA5672`
20	SCREW FLAT, 4X12 Part Number : `93600040121G`
21	SCREW WASHER 4X12 Part Number : `938930401217`
22	NUT,FLANGE 6MM Part Number : `9405006000`
23	BOLT FLANGE 6X22 Part Number : `957010602200`
24	BOLT FLANGE 6X14 Part Number : `960010601400`
