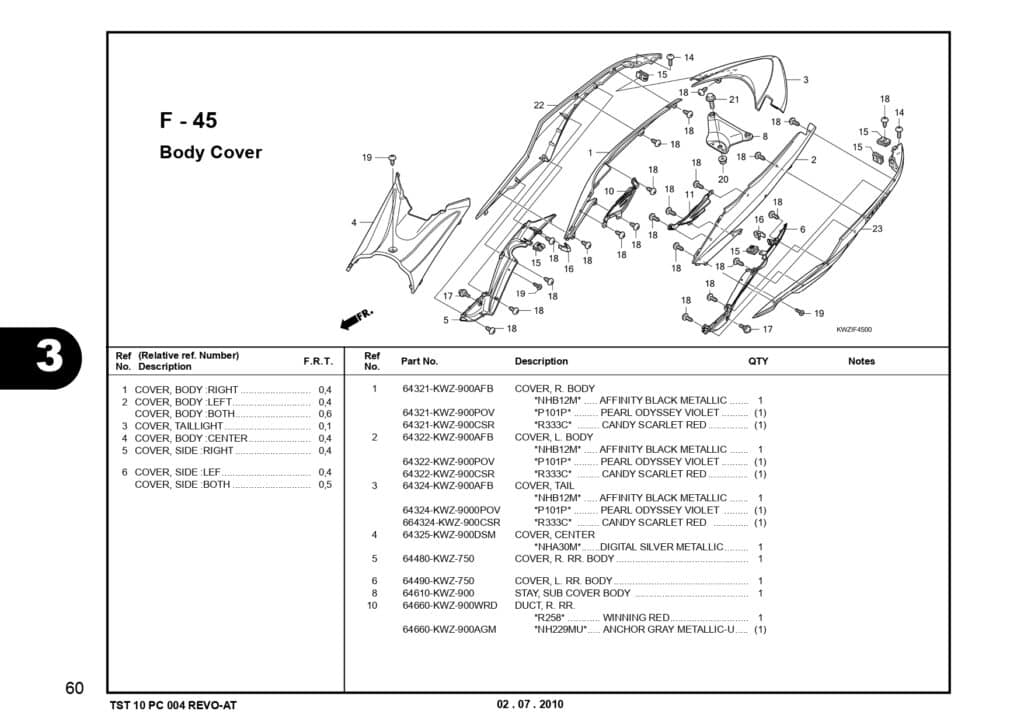

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER R BODY(AF BK MT) | 64321KWZ900AFB | - |
| 1 | COVER R BODY(PR OD VL) | 64321KWZ900POV | - |
| 1 | COVER R BODY(CN SC RD) | 64321KWZ900CSR | - |
| 2 | COVER L BODY(AF BK MT) | 64322KWZ900AFB | - |
| 2 | COVER L BODY(PR OD VL) | 64322KWZ900POV | - |
| 2 | COVER L BODY(CN SC RD) | 64322KWZ900CSR | - |
| 3 | COVER TAIL(AF BK MT) | 64324KWZ900AFB | - |
| 3 | 64324KWZ9000POV | 64324KWZ9000POV | - |
| 3 | 64322KWZ900CSR | 64322KWZ900CSR | - |
| 4 | COVER CENTER(DG SL MT) | 64325KWZ900DSM | - |
| 5 | COVER R BODY RR | 64480KWZ750 | - |
| 6 | COVER L BODY RR | 64490KWZ750 | - |
| 8 | STAY COVER SUB BODY | 64610KWZ900 | - |
| 10 | DUCT R RR(WN RD) | 64660KWZ900WRD | - |
| 10 | DUCT R RR(AN GY MT) | 64660KWZ900AGM | - |
| 11 | DUCT L RR(WN RD) | 64670KWZ900WRD | - |
| 11 | DUCT L RR(AN GY MT) | 64670KWZ900AGM | - |
| 14 | SCREW 6X12 | 90107KGH600 |
|
| 15 | NUT SPRING 4MM | 90302GW3980 |
|
| 16 | CLIP SNAP FIT (P0) | 90666SDAA01 |
|
| 17 | SCREW PAN 5X11.5 | 91509GE2760 |
|
| 18 | SCREW TAPPING 4X12 | 9390334320 |
|
| 19 | SCREW TAPPING 4X12 | 9390334380 |
|
| 20 | NUT FLANGE 8MM | 9405008000 |
|
| 21 | BOLT,FLANGE 8X14 | 957010801400 |
|
| 22 | COVER R SUB BODY(DG SL MT) | 64600KWZ900DSM | - |
| 23 | COVER L SUB BODY(DG SL MT) | 64650KWZ900DSM | - |
