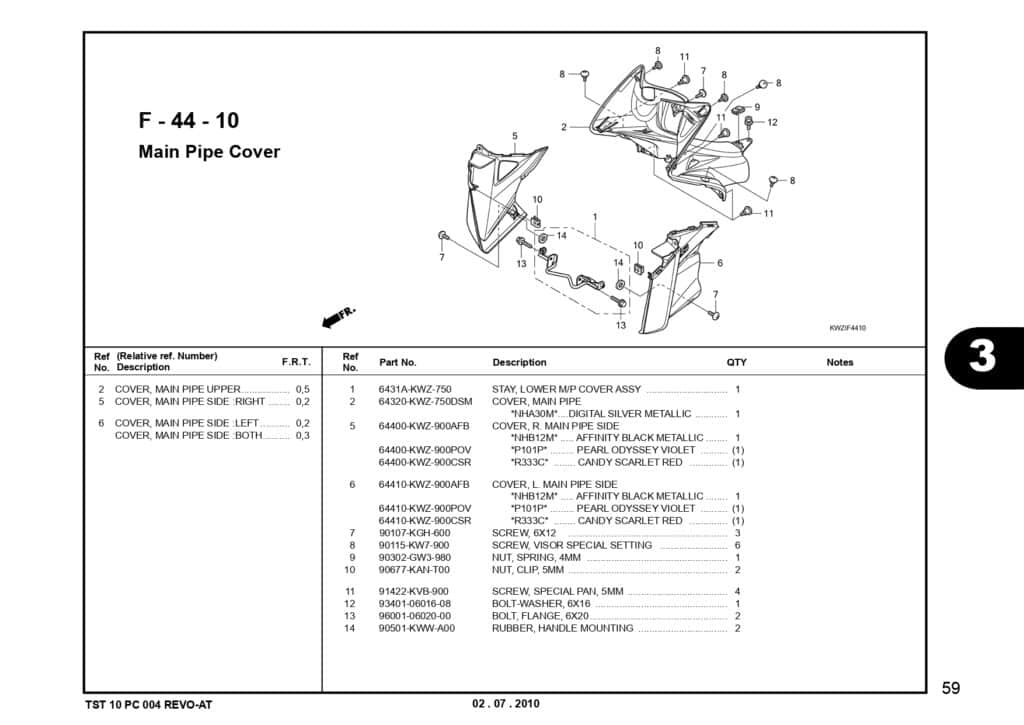

F-44-10 Main Pipe Cover – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	STAY LOWER M/P COVER ASSY Part Number : `6431AKWZ750`
2	COVER M/P (DG SL MT) Part Number : `64320KWZ750DSM`
5	COVER R M/P SD(AF BK MT) Part Number : `64400KWZ900AFB`
5	COVER R M/P SD(PR OD VL) Part Number : `64400KWZ900POV`
5	COVER R M/P SD(CN SC RD) Part Number : `64400KWZ900CSR`
6	COVER L M/P SD(AF BK MT) Part Number : `64410KWZ900AFB`
6	COVER L M/P SD(PR OD VL) Part Number : `64410KWZ900POV`
6	COVER L M/P SD(CN SC RD) Part Number : `64410KWZ900CSR`
7	SCREW 6X12 Part Number : `90107KGH600`
8	SCREW VISOR SPC. Part Number : `90115KW7900`
9	NUT SPRING 4MM Part Number : `90302GW3980`
10	NUT CLIP 5MM. Part Number : `90677KANT00`
11	SCREW SPECIAL PAN 5MM Part Number : `91422KVB900`
12	BOLT WASHER 6X16 Part Number : `934010601608`
13	BOLT FLANGE 6X20 Part Number : `960010602000`
14	RUBBER COVER HDL MT Part Number : `90501KWWA00`
