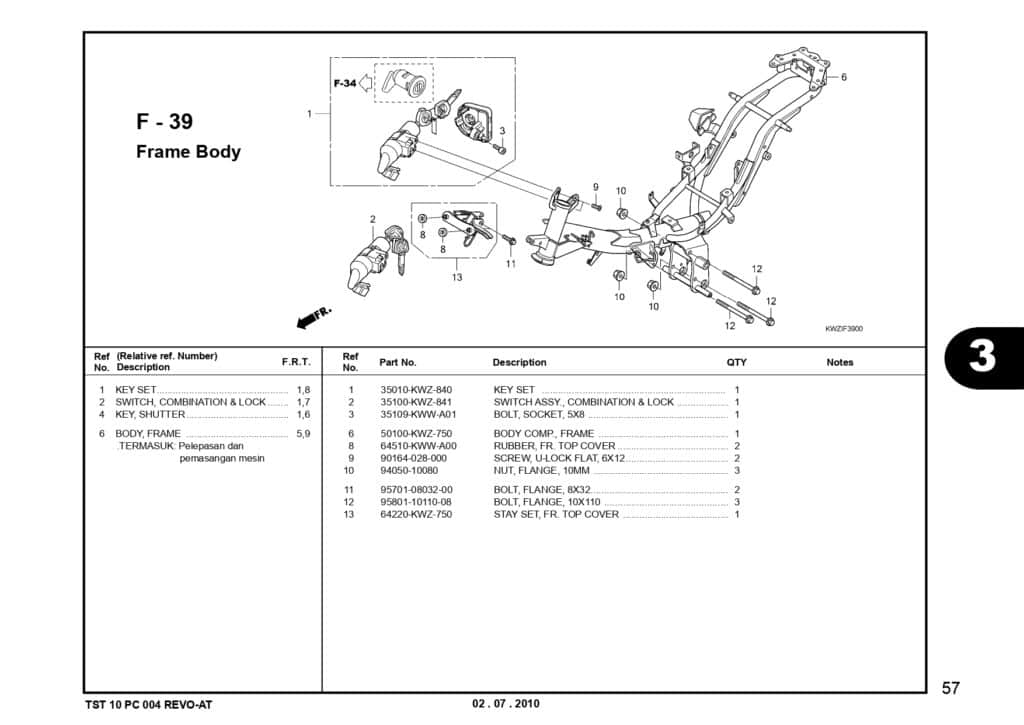

F-39 Frame Body – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	KEY SET Part Number : `35010KWZ840`
2	SWITCH ASSY COMB & LOCK Part Number : `35100KWZ841`
3	SOCKET BOLT (5X8) Part Number : `35109KWWA01`
6	FRAME BODY Part Number : `50100KWZ750`
8	RUBBER FR TOP COVER Part Number : `64510KWWA00`
9	SCREW LOCK /K4 Part Number : `90164028000`
10	NUT FLANGE 10MM Part Number : `9405010080`
11	BOLT FLANGE 8X32 Part Number : `957010803200`
12	BOLT FLANGE 10X110 Part Number : `958011011008`
13	STAY SET FR TOP COVER Part Number : `64220KWZ750`
