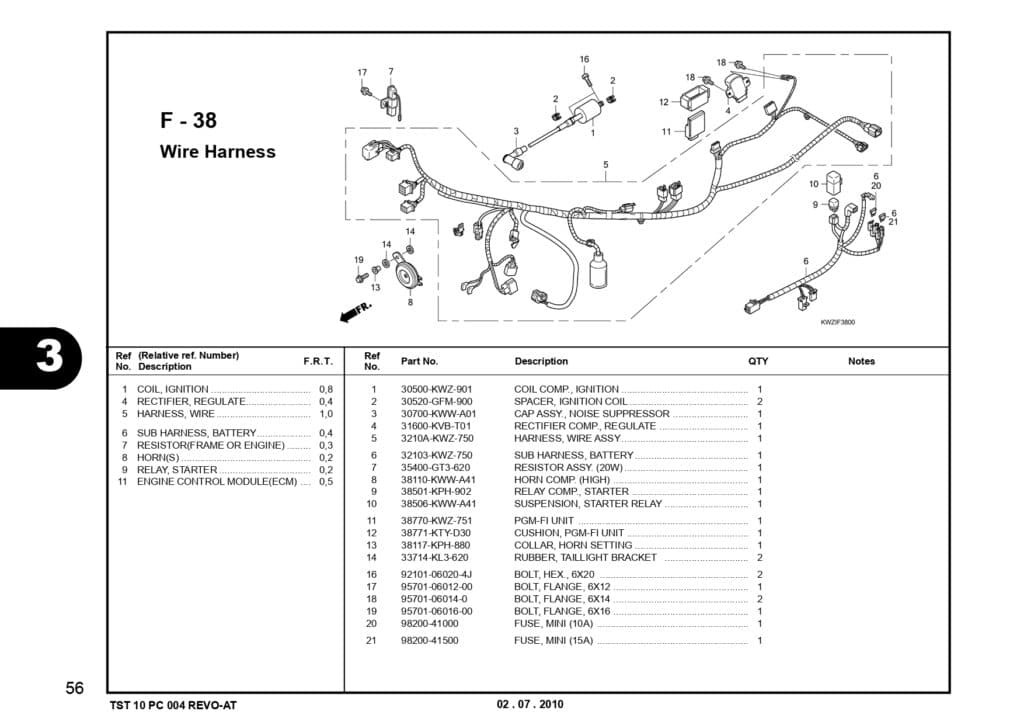

F-38 Wire Harness – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	COIL COMP IGN Part Number : `30500KWZ901`
2	SPACER IGN COIL Part Number : `30520GFM900`
3	CAP ASSY NOISE SUPPRESSOR Part Number : `30700KWWA01`
4	REGULATOR REC COMP Part Number : `31600KVBT01`
5	HARNESS WIRE ASSY Part Number : `3210AKWZ750`
6	SUB HARNESS BATTERY Part Number : `32103KWZ750`
7	RESISTOR ASSY Part Number : `35400GT3620`
8	HORN COMP Part Number : `38110KWWA41`
9	RELAY COMP START Part Number : `38501KPH901`
10	SUSP,START RELAY Part Number : `38506KWWA41`
11	UNIT COMP,PGM-FI Part Number : `38770KWZ751`
12	CUSHION PGM-FI/IGN UNIT Part Number : `38771KTYD30`
13	COLLAR HORN SETTING Part Number : `38117KPH880`
14	RUBTAIL/LT BRKT. Part Number : `33714KL3620`
16	BOLT HEX 6X20 Part Number : `92101060204J`
17	BOLT FLANGE 6X12 Part Number : `957010601200`
18	BOLT FLANGE 6X14 Part Number : `957010601400`
19	BOLT FLANGE 6X16 Part Number : `957010601600`
20	FUSE, MINI(10A) Part Number : `9820041000`
21	FUSE F (15A) Part Number : `9820041500`
