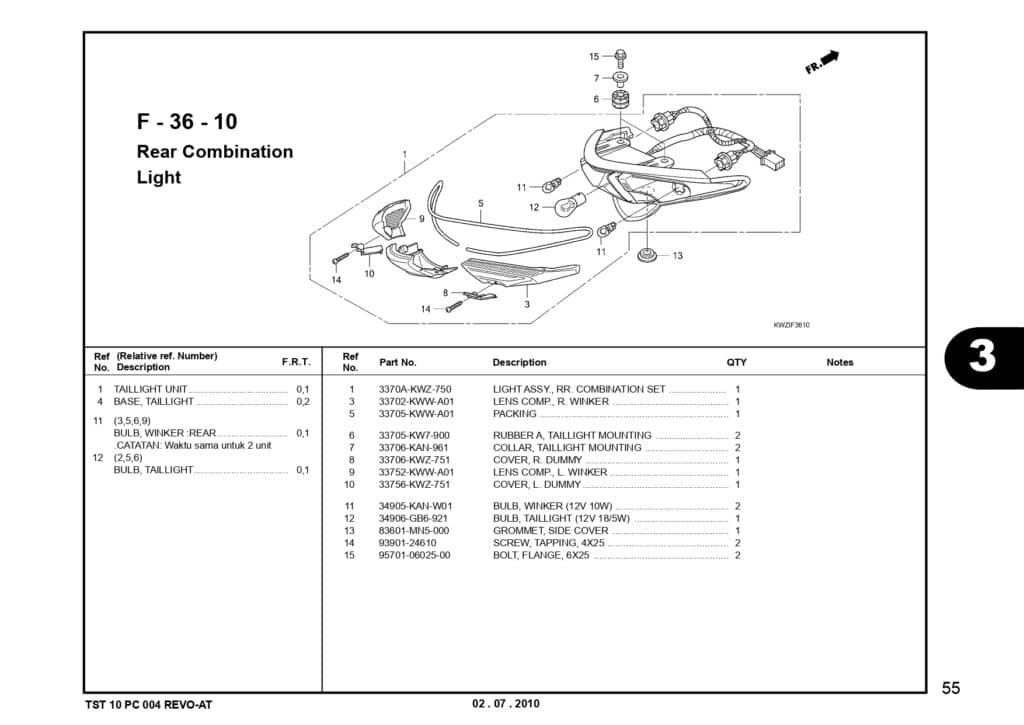

F-36-10 Rear Combination Light – Katalog Suku Cadang Honda Revo AT
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
LIGHT ASSY RR COMB SET |
3370AKWZ750 |
-
|
| 3 |
LENS WINKER R |
33702KWWA01 |
-
|
| 5 |
PACKING |
33705KWWA01 |
-
|
| 6 |
RUBBER TAILLIGHT |
33705KW7900 |
|
| 7 |
COLLAR TAIL LIGHT MOUNT |
33706KAN961 |
-
|
| 8 |
COVER R DUMMY |
33706KWZ751 |
-
|
| 9 |
LENS WINKER L |
33752KWWA01 |
-
|
| 10 |
COVER L DUMMY |
33756KWZ751 |
-
|
| 11 |
WB BULB (12V10W-YLT13) |
34905KANW01 |
|
| 12 |
BULB TAILLIGHT |
34906GB6921 |
|
| 13 |
GROMMET SIDE COVER |
83601MN5000 |
|
| 14 |
SCREW TAPPING (4X25) |
9390124610 |
-
|
| 15 |
BOLT FLANGE 6X25 |
957010602500 |
|
