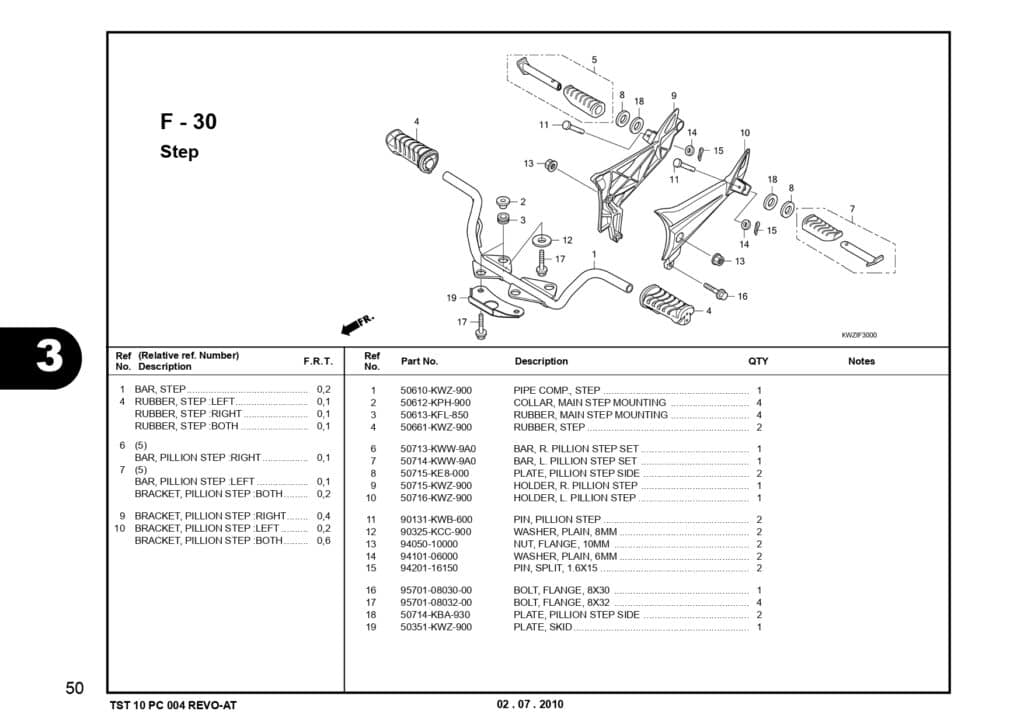

F-30 Step – Katalog Suku Cadang Honda Revo AT

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 PIPE COMP STEP 50610KWZ900 -
2 COLLAR MAIN STEP MOUNT 50612KPH900 -
3 RUBBER MAIN STEP MOUNT 50613KFL850 RUBBER MAIN STEP MOUNT
4 RUBBER STEP 50661KWZ900 -
6 BAR R PILLION STEP S 50713KWW9A0 -
7 BAR L PILLION STEP S 50714KWW9A0 -
8 PLATE, PILLION STEP SIDE 50715KE8000 PLATE, PILLION STEP SIDE
9 HOLDER R. PILLION STEP 50715KWZ900 -
10 HOLDER L. PILLION STEP 50716KWZ900 -
11 PIN PILLION STEP 90131KWB600 PIN PILLION STEP
12 WASHER PLAIN 8MM 90325KCC900 -
13 NUT FLANGE10MM 9405010000 NUT FLANGE10MM
14 WASHER PLAIN 6MM 9410106000 WASHER PLAIN 6MM
15 PIN COTTER 16X15 9420116150 PIN COTTER 16X15
16 BOLT FLANGE 8X30 957010803000 BOLT FLANGE 8X30
17 BOLT FLANGE 8X32 957010803200 BOLT FLANGE 8X32
18 PLATE PILL.ST. 50714KBA930 -
19 PLATE SKID 50351KWZ900 -
