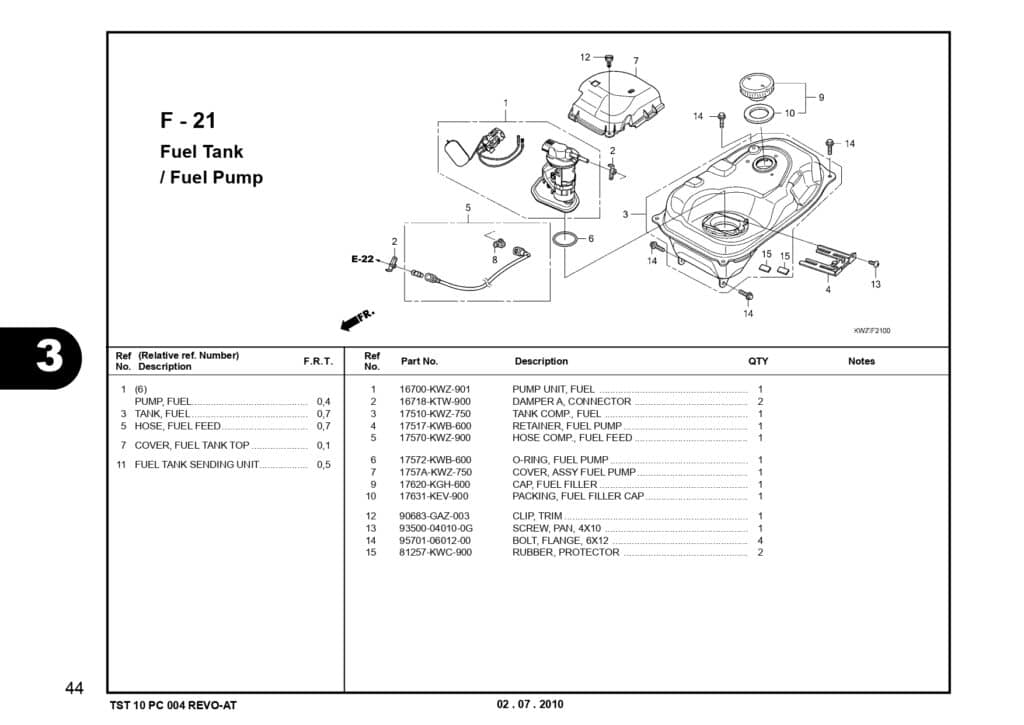

F-21 Fuel Tank Fuel Pump – Katalog Suku Cadang Honda Revo AT

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 UNIT ASSY,FUEL PUMP 16700KWZ904 -
2 DAMPER A CONNECTOR 16718KTW900 DAMPER A CONNECTOR
3 FUEL TANK 17510KWZ750 -
4 RETAINER,FUEL PUMP 17517KWB600 -
5 17570KWZ900 17570KWZ900 -
6 O-RING,FUEL PUMP 17572KWB600 -
7 COVER ASSY FUEL PUMP 1757AKWZ750 -
9 CAP FUEL FILLER 17620KGH600 CAP FUEL FILLER
10 PACKING FUEL FILLER CAP 17631KEV900 PACKING FUEL FILLER CAP
12 CLIP,TRIM 90683GAZ003 CLIP,TRIM
13 SCREW, PAN, 4X10 93500040100G -
14 BOLT FLANGE 6X12 957010601200 BOLT FLANGE 6X12
15 RUBBER PROTECTOR 81257KWC900 RUBBER PROTECTOR
