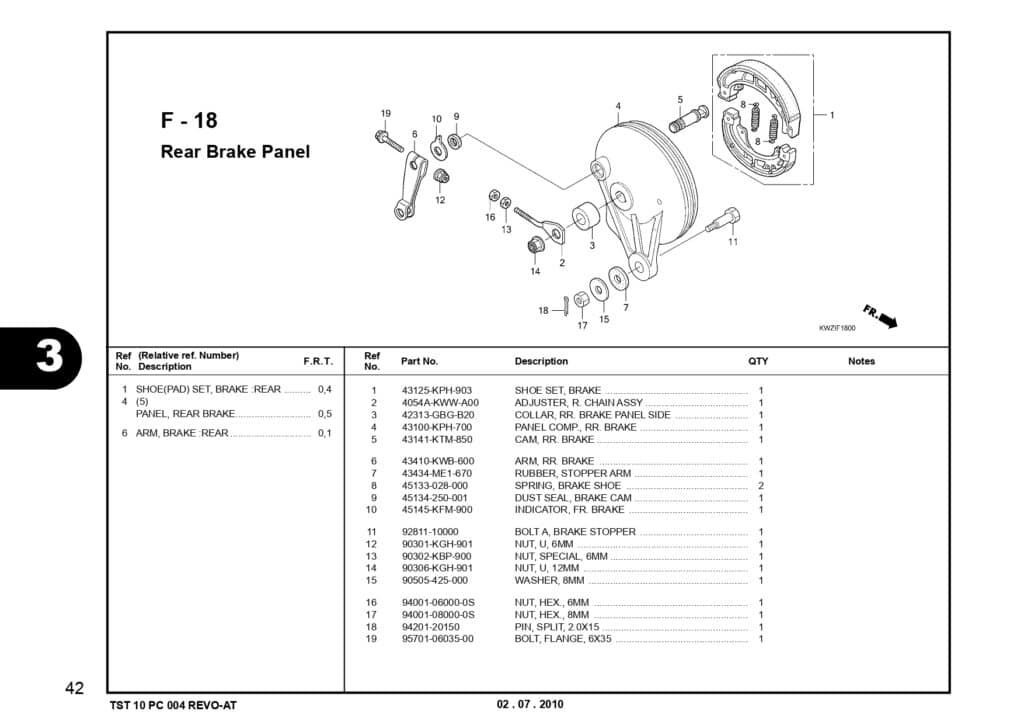

F-18 Rear Brake Master – Katalog Suku cadang Honda Revo AT

#	Informasi Produk	Visual
1	SHOE COMP BRAKE (NA) Part Number : `43125KPH903`
2	ADJUSTER R CHAIN ASSY Part Number : `4054AKWWA00`
3	COLLAR RR BRAKE PANEL Part Number : `42313GBGB20`
4	PANEL COMP RR BRK Part Number : `43100KPH700`
5	CAM RR BRAKE Part Number : `43141KTM850`
6	ARM REAR BRAKE Part Number : `43410KWB600`
7	RUBBER STOP ARM Part Number : `43434ME1670`
8	SPRING BRAKE SHOE Part Number : `45133028000`
9	SEAL BRAKE CAM DUST Part Number : `45134250001`
10	INDICATOR FR BRK Part Number : `45145KFM900`
11	BOLT A BRK STPR Part Number : `9281110001`
12	NUT U 6MM Part Number : `90301KGH901`
13	NUT SPECIAL 6MM Part Number : `90302KBP900`
14	NUT,U,12MM Part Number : `90306KGH901`
15	WASHER 8MM Part Number : `90505425000`
16	NUT HEX 6MM Part Number : `94001060000S`
17	NUT HEX 8MM Part Number : `94001080000S`
18	PIN COTTER 2.0X15 Part Number : `9420120150`
19	BOLT FLANGE 6X35 Part Number : `957010603500`
