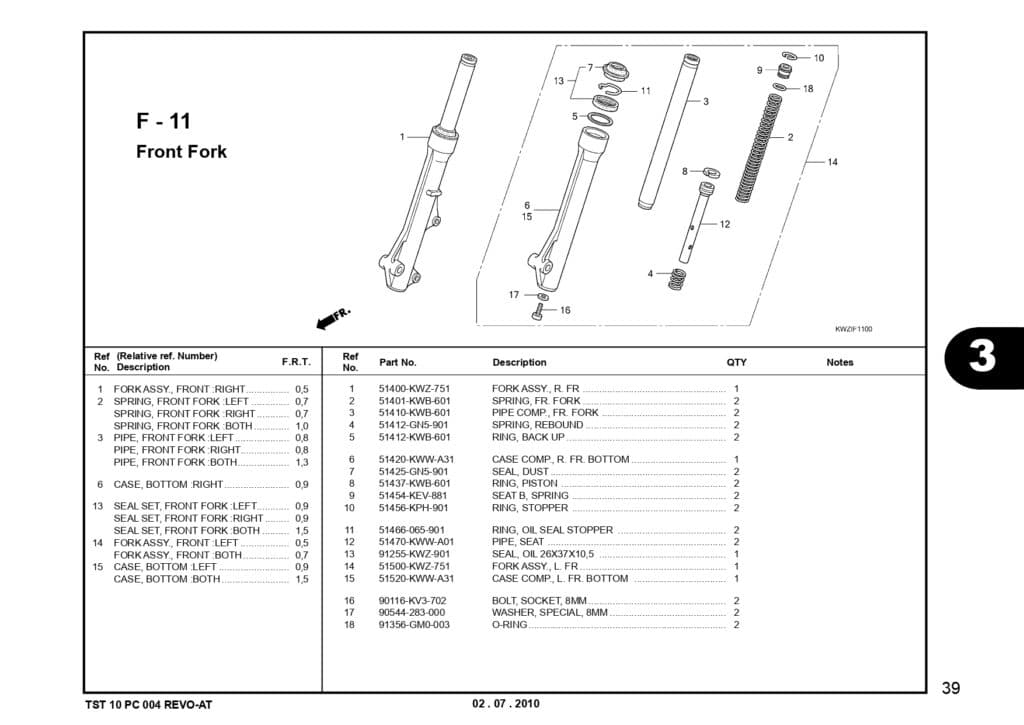

F-11 Front Fork – Katalog Suku cadang Honda Revo AT

#	Informasi Produk	Visual
1	FORK ASSY R FR Part Number : `51400KWZ751`
2	SPRING FR FORK Part Number : `51401KWB601`
3	PIPE COMP FR FORK Part Number : `51410KWB601`
4	SPG REBOUND Part Number : `51412GN5901`
5	RING BACK UP Part Number : `51412KWB601`
6	CASE COMP R FR BOTTOM Part Number : `51420KWWA31`
7	DUST SEAL FR FORK Part Number : `51425GN5901`
8	RING PISTON Part Number : `51437KWB601`
9	SEAT B SPRING Part Number : `51454KEV881`
10	RIMG,STOPPER Part Number : `51456KPH901`
11	RING OIL SEAL Part Number : `51466065901`
12	PIPE,SEAT Part Number : `51470KWWA01`
13	SEAL OIL (26X37X10.5) Part Number : `91255KWZ901`
14	FORK ASSY L FR Part Number : `51500KWZ751`
15	CASE COPM L FR BOTTOM Part Number : `51520KWWA31`
16	BOLT,SOCKET 8MM Part Number : `90116KV3701`
17	WASHER SPECIAL (8MM) Part Number : `90544283000`
18	O RING Part Number : `91356GM0003`
