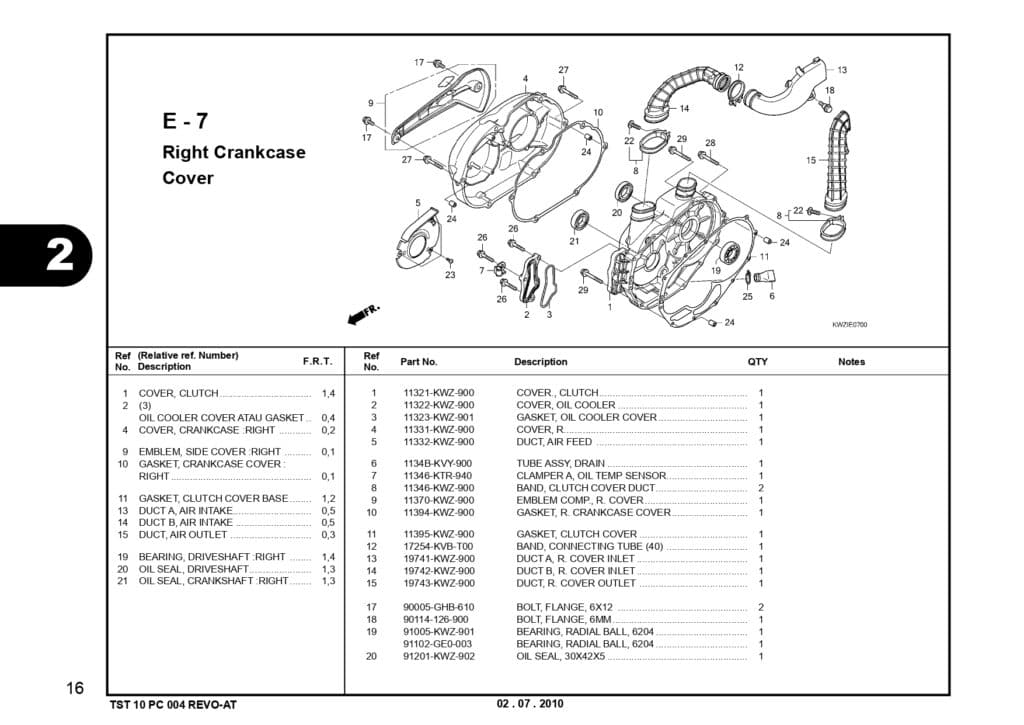

E-7 Right Crankcase Cover – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	COVER CLUTCH Part Number : `11321KWZ900`
2	COVER OIL COOLER Part Number : `11322KWZ900`
3	GASKET,OIL COOLER COVER Part Number : `11323KWZ901`
4	COVER RIGHT Part Number : `11331KWZ900`
5	DUCT AIR FEED Part Number : `11332KWZ900`
6	TUBE DRAIN ASSY Part Number : `1134BKVY900`
7	CLAMPER A OIL TEMP SNSR Part Number : `11346KTR940`
8	BAND CLUTCH COVER DUCT Part Number : `11346KWZ900`
9	EMBLEM COMP R COVER Part Number : `11370KWZ900`
10	GASKET R CRANKCASE COVER Part Number : `11394KWZ900`
11	GASKET CLUTCH COVER Part Number : `11395KWZ900`
12	BAND 40 CONN.TUBE Part Number : `17254KVBT00`
13	DUCT A R COVER INLET Part Number : `19741KWZ900`
14	19742KWZ900 Part Number : `19742KWZ900`
15	DUCT R COVER OUTLET Part Number : `19743KWZ900`
17	BOLT FLANGE 6X12 Part Number : `90005GHB610`
18	BOLT FLANGE 6MM Part Number : `90114126900`
19	BEARING BALL RAD 6204 SPL Part Number : `91005KWZ901`
19	BEARING BALL RADIAL 6204 Part Number : `91102GE0003`
20	OIL SEAL,30X42X5 Part Number : `91201KWZ902`
21	OIL SEAL 27X37X7 Part Number : `91203459771`
22	SCREW PAN 4X25 Part Number : `93500040250G`
23	SCREW TAPPING 4X8 Part Number : `9390334120`

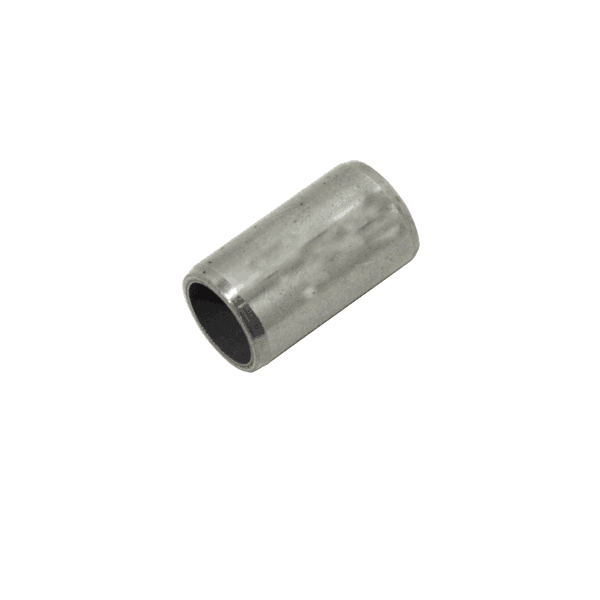

24	Pin Dowel 8x14 Part Number : `9430108140`
25	CLIP, TUBE(C12) Part Number : `9500280000`
26	BOLT FLANGE 6X25 Part Number : `960010602500`
27	BOLT FLANGE 6X35 Part Number : `960010603500`
28	BOLT FLANGE 6X40 Part Number : `960010604000`
29	BOLT FLANGE 6X45 Part Number : `960010604500`
