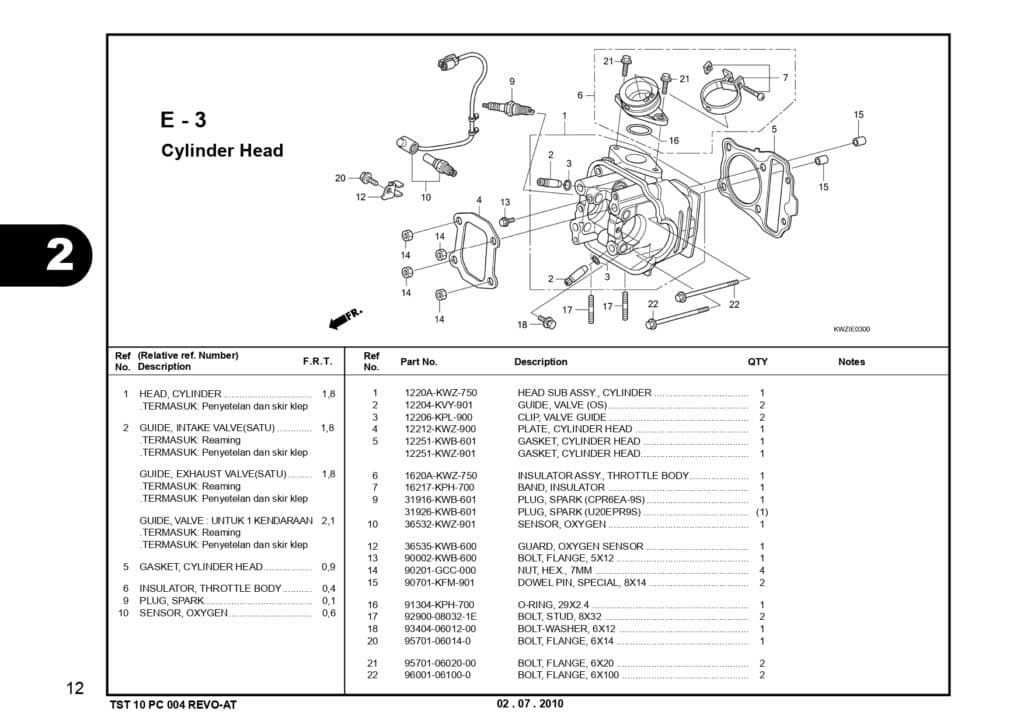

E-3 Cylinder Head – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	HEAD CYLINDER SUB ASSY Part Number : `1220AKWZ750`
2	GUIDE VALVE Part Number : `12204KVY901`
3	CLIP VALVE GUIDE Part Number : `12206KPL900`
4	PLATE CYL HEAD Part Number : `12212KWZ900`
5	GASKET CYLINDER HEAD Part Number : `12251KWB601`
5	12251KWZ901 Part Number : `12251KWZ901`
6	INSULATOR ASSY,THROTTLE B Part Number : `1620AKWZ750`
7	BAND ISULATOR Part Number : `16217KPH700`
9	SPARK PLUG CPR6EA9S (NGK) Part Number : `31916KWB601`
9	SPARK PLUG U20EPR9S (DS) Part Number : `31926KWB601`
10	SENSOR OXYGEN Part Number : `36532KWZ901`
12	GUARD O2 SENSOR Part Number : `36535KWB600`
13	BOLT FLANGE 5X12 Part Number : `90002KWB600`
14	NUTHEX 7MM Part Number : `90201GCC000`
15	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
16	O-RING, 29 X 2.4 Part Number : `91304KPH700`
17	BOLT,STUD 8X32 Part Number : `92900080320E`
17	Bolt Stud 8X32 Part Number : `92900080320E`
18	BOLT WASHER 6X12 Part Number : `934040601200`
20	957010601400 Part Number : `95701060140`
21	BOLT FLANGE 6X20 Part Number : `957010602000`
22	BOLT, FLANGE SH 6X100 Part Number : `960010610000`
