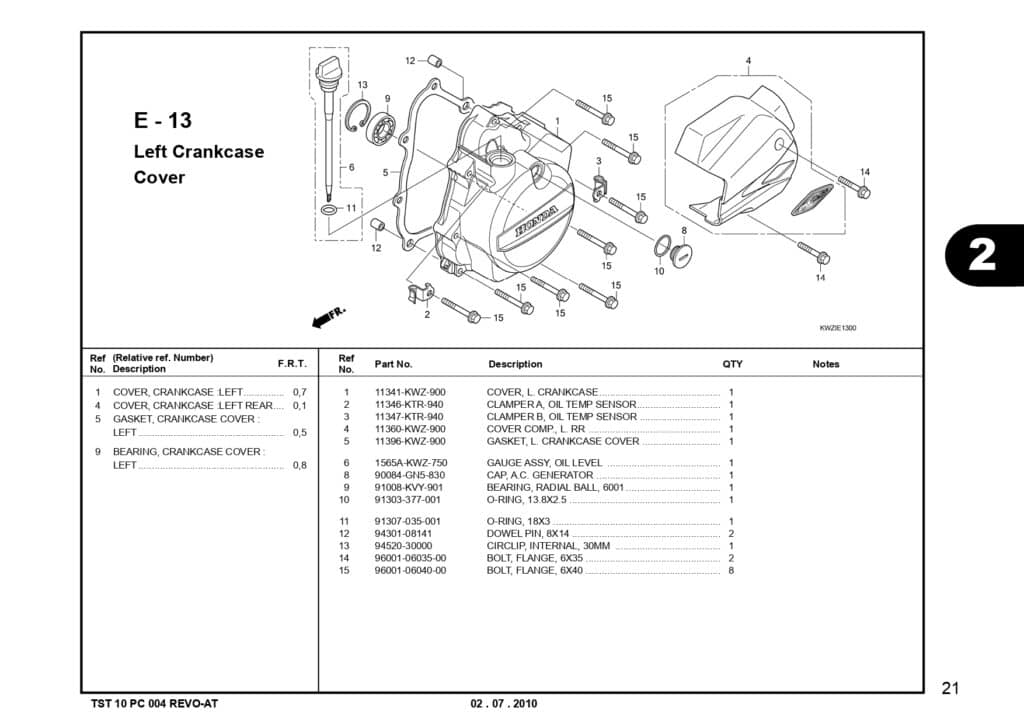

E-13 Left Crankcase Cover – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	COVER L CRANK CASE Part Number : `11341KWZ900`
2	CLAMPER A OIL TEMP SNSR Part Number : `11346KTR940`
3	CLAMPER B OIL TEMP SNSR Part Number : `11347KTR940`
4	COVER COMP L RR Part Number : `11360KWZ900`
5	GASKET L CRANKCASE COVER Part Number : `11396KWZ900`
6	GAUGE ASSY OIL LEVEL Part Number : `1565AKWZ750`
8	CAP AC GEN Part Number : `90084GN5830`
9	BEARING BALL RADIAL 6001 Part Number : `91008KVY901`
10	O RING 13.8 X 2.5 Part Number : `91303377001`
11	O-RING, 18X3 Part Number : `91307035000`
11	O Ring 18x3 Part Number : `91307035000`

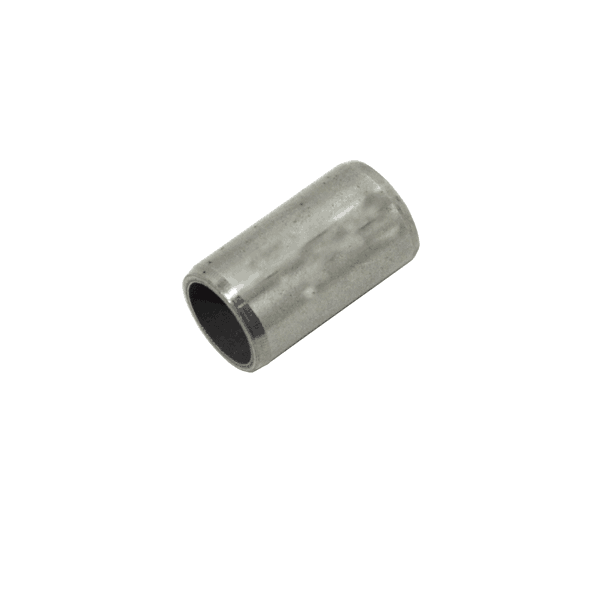

12	PIN DOWEL 8X14 Part Number : `9430108140`
13	CIRCLIP INT 30MM Part Number : `9452030000`
14	BOLT FLANGE 6X35 Part Number : `960010603500`
15	BOLT FLANGE 6X40 Part Number : `960010604000`
