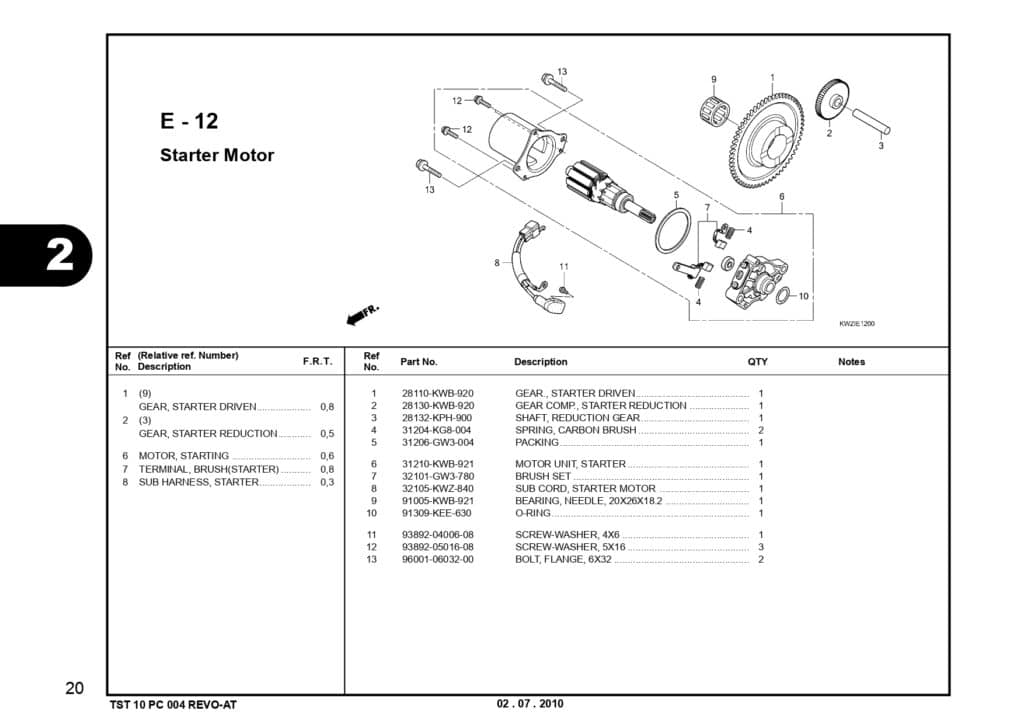

E-12 Starter Motor – Katalog Suku Cadang Honda Revo AT

#	Informasi Produk	Visual
1	GEAR COMP STATER DRIVEN Part Number : `28110KWB920`
2	GEAR COMP STARTER REDUCT Part Number : `28130KWB920`
3	SHAFT REDUCTION RR Part Number : `28132KPH900`
4	SPRING BRUSH Part Number : `31204KG8004`
5	PACKING Part Number : `31206GW3004`
6	MOTOR UNIT START Part Number : `31210KWB921`
7	BRUSH SET Part Number : `32101GW3780`
8	SUB CORD STARTER MOTOR Part Number : `32105KWZ840`
9	BEARING NEEDLE 19X23X17 Part Number : `91005KWB921`
10	O RING Part Number : `91309KEE630`
11	SCREW,WASHER 4X6 Part Number : `938920400608`
12	SCREW WASHER (5X16) Part Number : `938920501608`
13	BOLT FLANGE 6X32 Part Number : `960010603200`
