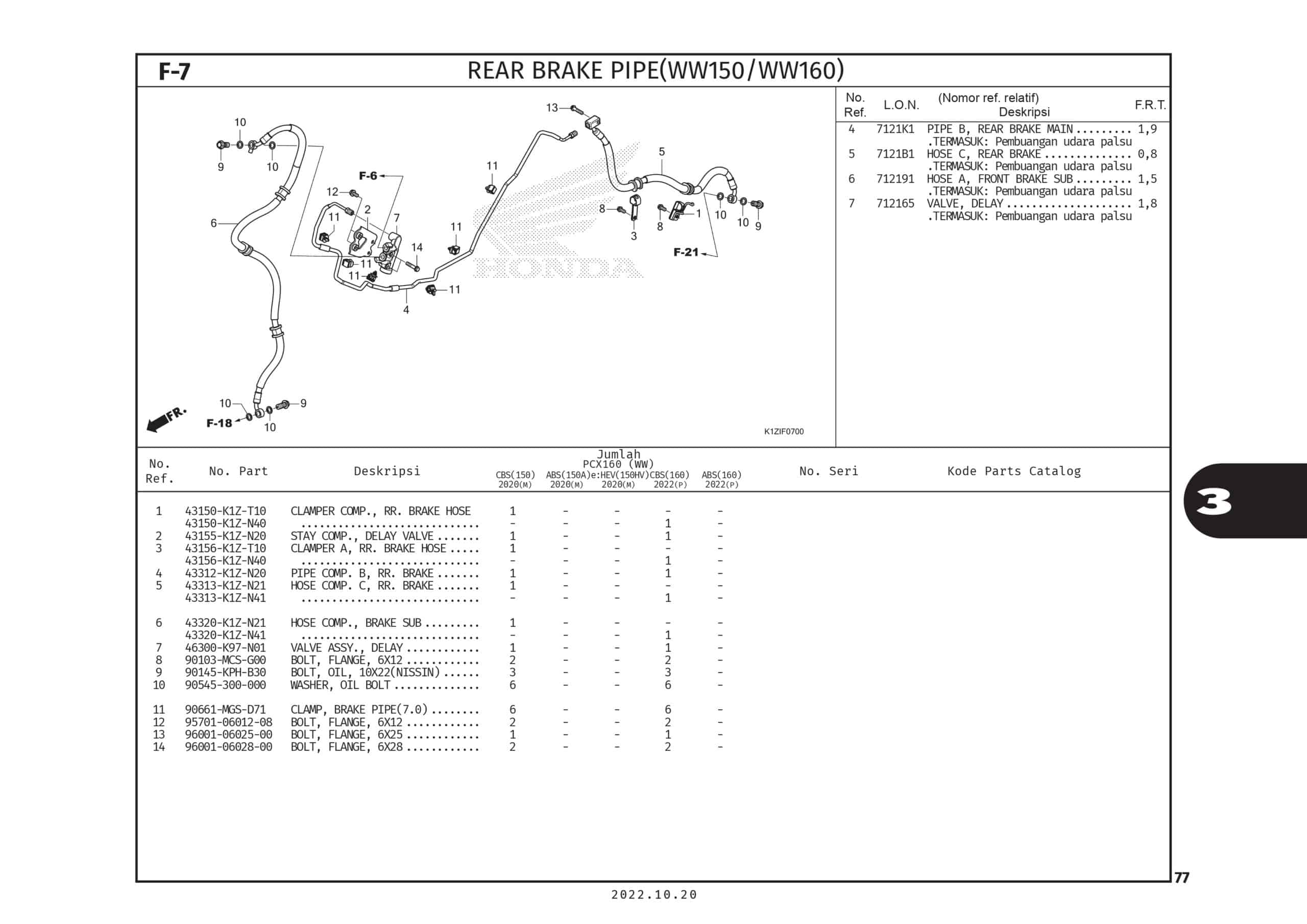

F-7 Rear Brike Pipe – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	CLAMPER COMP., RR. BRAKE HOSE Part Number : `43150K1ZT10`
1	CLAMPER COMP,RR BRAKE HOSE Part Number : `43150K1ZN40`
2	STAY COMP., DELAY VALVE Part Number : `43155K1ZN20`
3	CLAMPER A, RR. BRAKE HOSE Part Number : `43156K1ZT10`
3	CLAMPER A,RR BRAKE HOSE Part Number : `43156K1ZN40`
4	PIPE COMP. B, RR. BRAKE Part Number : `43312K1ZN20`
5	HOSE COMP. C, RR. BRAKE Part Number : `43313K1ZN21`
5	HOSE COMP C,RR BRAKE Part Number : `43313K1ZN41`
6	HOSE COMP., BRAKE SUB Part Number : `43320K1ZN21`
6	HOSE COMP,BRAKE SUB Part Number : `43320K1ZN41`
7	VALVE ASSY., DELAY Part Number : `46300K97N01`
8	BOLT, FLANGE, 6X12 Part Number : `90103MCSG00`
9	BOLT, OIL, 10X22(NISSIN) Part Number : `90145KPHB30`
10	WASHER, OIL BOLT Part Number : `90545300000`
11	CLAMP, BRAKE PIPE(7.0) Part Number : `90661MGSD71`
12	BOLT, FLANGE, 6X12 Part Number : `957010601208`
13	BOLT, FLANGE, 6X25 Part Number : `960010602500`
14	BOLT, FLANGE, 6X28 . Part Number : `960010602800`
