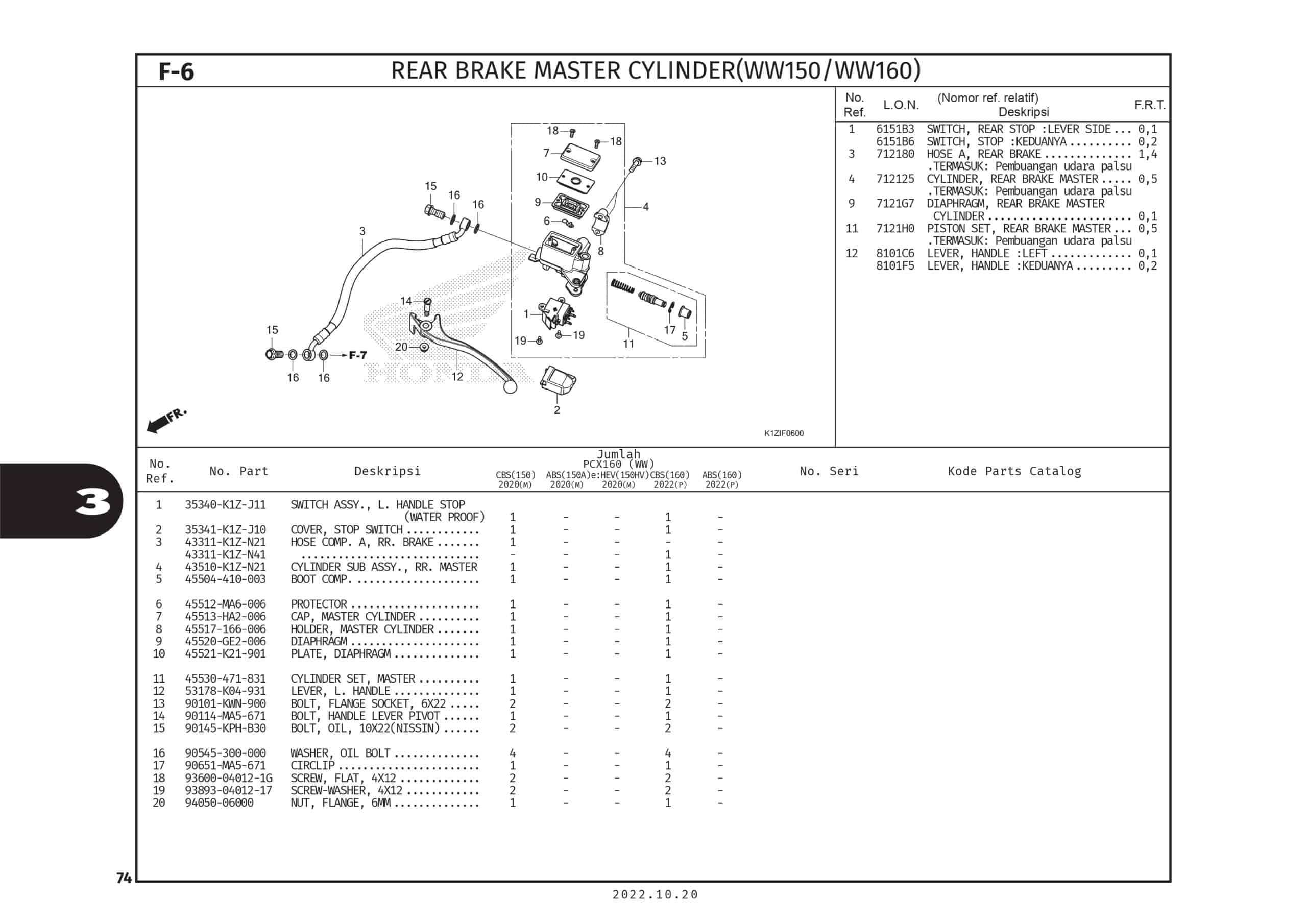

F-6 Rear Brake Master Cylinder (WW150) – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	SWITCH ASSY., L. HANDLE STOP (WATER PROOF) Part Number : `35340K1ZJ11`
2	COVER, STOP SWITCH Part Number : `35341K1ZJ10`
3	HOSE COMP. A, RR. BRAKE Part Number : `43311K1ZN21`
3	HOSE COMP A,RR BRAKE Part Number : `43311K1ZN41`
4	CYLINDER SUB ASSY., RR. MASTER Part Number : `43510K1ZN21`
4	CYLINDER SUB ASSY., RR. MASTER Part Number : `43510K1ZJ11`
5	BOOT COMP Part Number : `45504410003`
6	PROTECTOR Part Number : `45512MA6006`
7	CAP, MASTER CYLINDER Part Number : `45513HA2006`
8	HOLDER, MASTER CYLINDER Part Number : `45517166006`
9	DIAPHRAGM Part Number : `45520GE2006`
10	PLATE, DIAPHRAGM Part Number : `45521K21901`
11	CYLINDER SET, MASTER Part Number : `45530471831`
11	CYLINDER SET, MASTER Part Number : `45530KET920`
12	LEVER, L. HANDLE Part Number : `53178K04931`
13	BOLT, FLANGE SOCKET, 6X22 Part Number : `90101KWN900`
14	BOLT, HANDLE LEVER PIVOT Part Number : `90114MA5671`
15	BOLT, OIL, 10X22(NISSIN) Part Number : `90145KPHB30`
16	WASHER, OIL BOLT Part Number : `90545300000`
17	CIRCLIP Part Number : `90651MA5671`
18	SCREW, FLAT, 4X12 Part Number : `93600040121G`
19	SCREW-WASHER, 4X12 Part Number : `938930401217`
20	NUT, FLANGE, 6MM Part Number : `9405006000`
