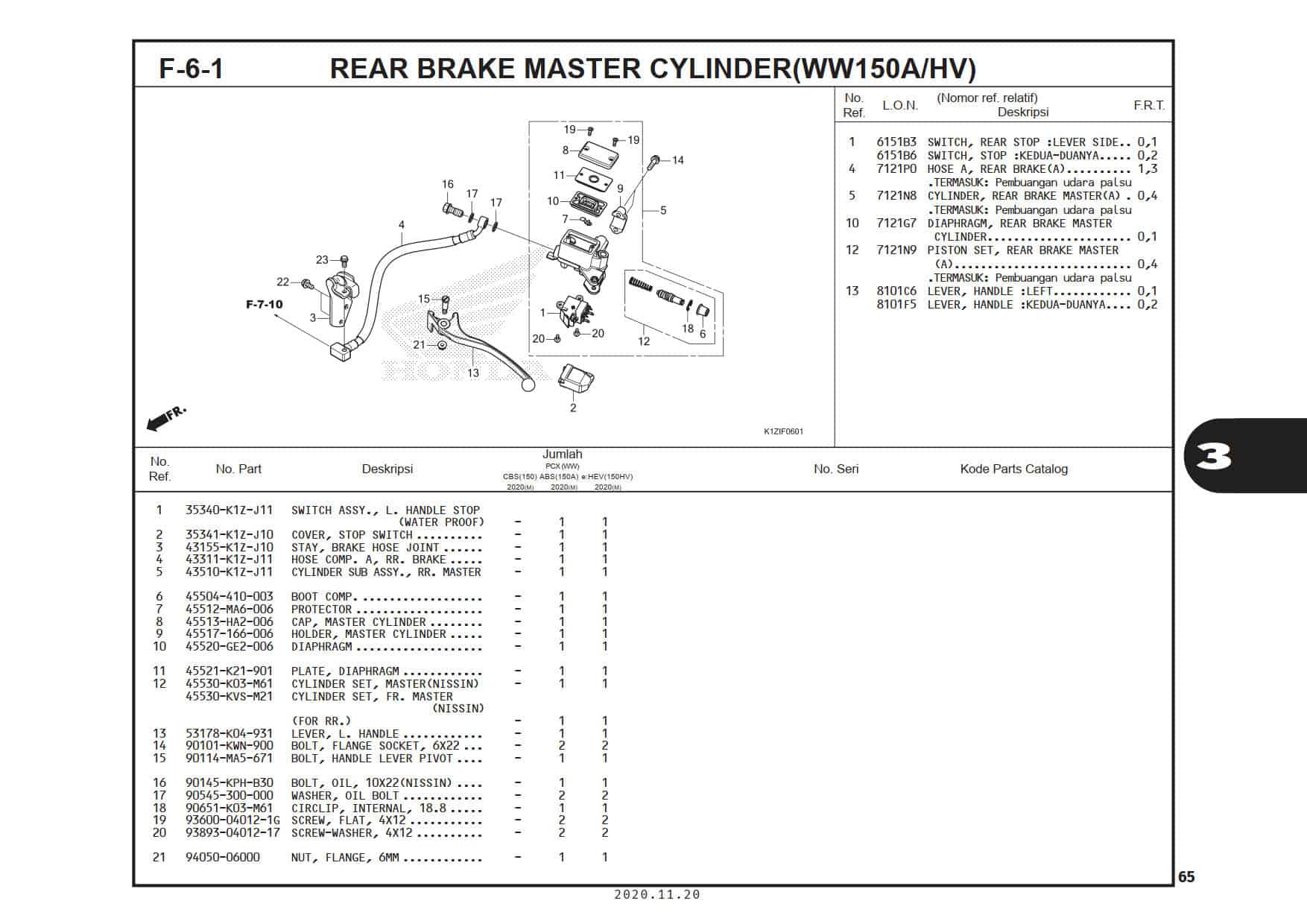

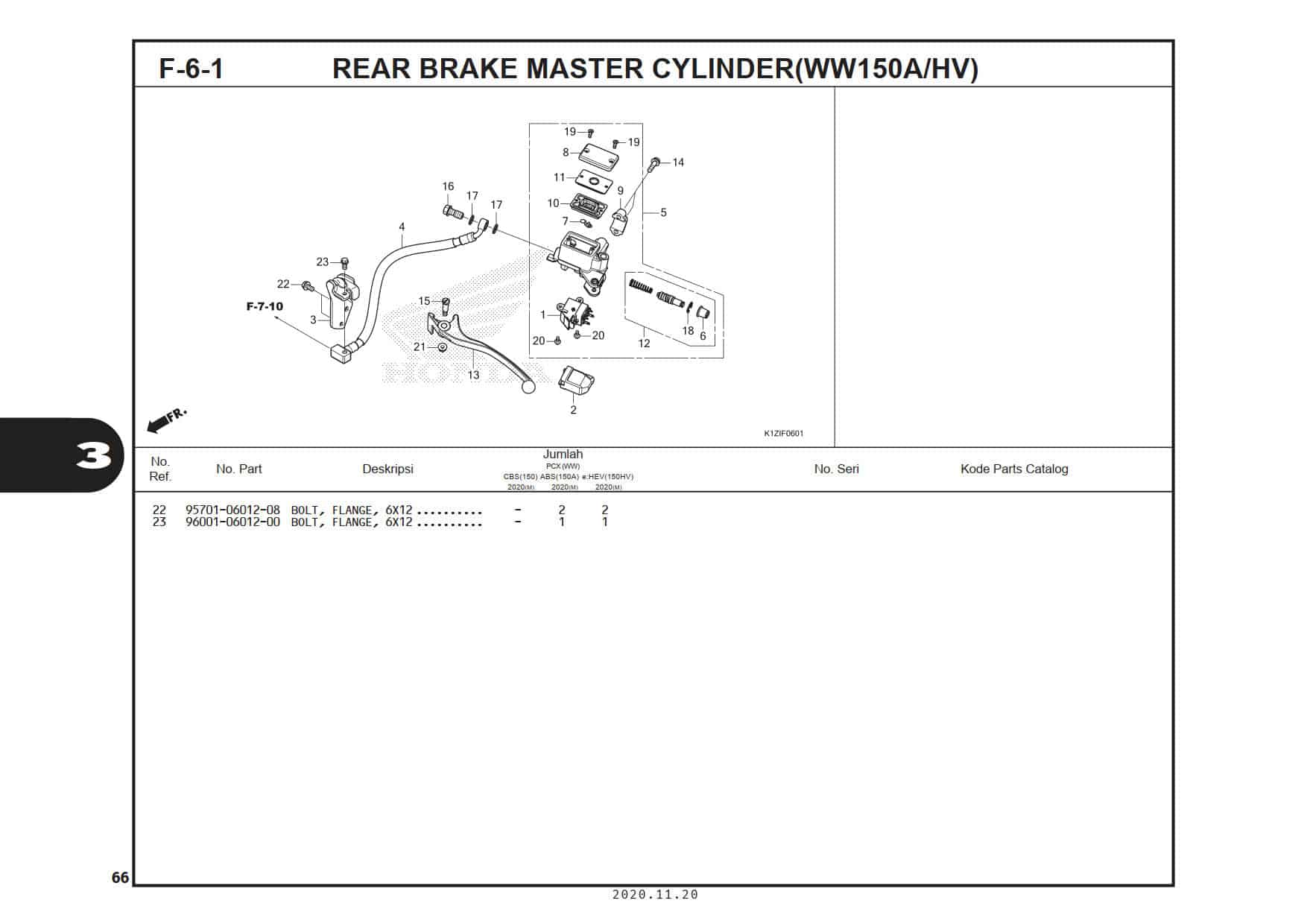

F-6-1 Rear Brake Master Cylinder (WW150A/HV) – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	SWITCH ASSY., L. HANDLE STOP (WATER PROOF) Part Number : `35340K1ZJ11`
2	COVER, STOP SWITCH Part Number : `35341K1ZJ10`
3	STAY, BRAKE HOSE JOINT Part Number : `43155K1ZJ10`
4	HOSE COMP. A, RR. BRAKE Part Number : `43311K1ZJ11`
5	CYLINDER SUB ASSY., RR. MASTER Part Number : `43510K1ZJ11`
6	BOOT COMP Part Number : `45504410003`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP, MASTER CYLINDER Part Number : `45513HA2006`
9	HOLDER, MASTER CYLINDER Part Number : `45517166006`
10	DIAPHRAGM Part Number : `45520GE2006`
11	PLATE, DIAPHRAGM Part Number : `45521K21901`
12	CYLINDER SET, MASTER(NISSIN) Part Number : `45530K03M61`
12	CYLINDER SET, FR. MASTER Part Number : `45530KVSM21`
13	LEVER, L. HANDLE Part Number : `53178K04931`
14	BOLT, FLANGE SOCKET, 6X22 Part Number : `90101KWN900`
15	BOLT, HANDLE LEVER PIVOT Part Number : `90114MA5671`
16	BOLT, OIL, 10X22(NISSIN) Part Number : `90145KPHB30`
17	WASHER, OIL BOLT Part Number : `90545300000`
18	CIRCLIP, INTERNAL, 18.8 Part Number : `90651K03M61`
19	SCREW, FLAT, 4X12 Part Number : `93600040121G`
20	SCREW-WASHER, 4X12 Part Number : `938930401217`
21	NUT, FLANGE, 6MM Part Number : `9405006000`
22	BOLT, FLANGE, 6X12 Part Number : `957010601208`
23	BOLT, FLANGE, 6X12 Part Number : `960010601200`
