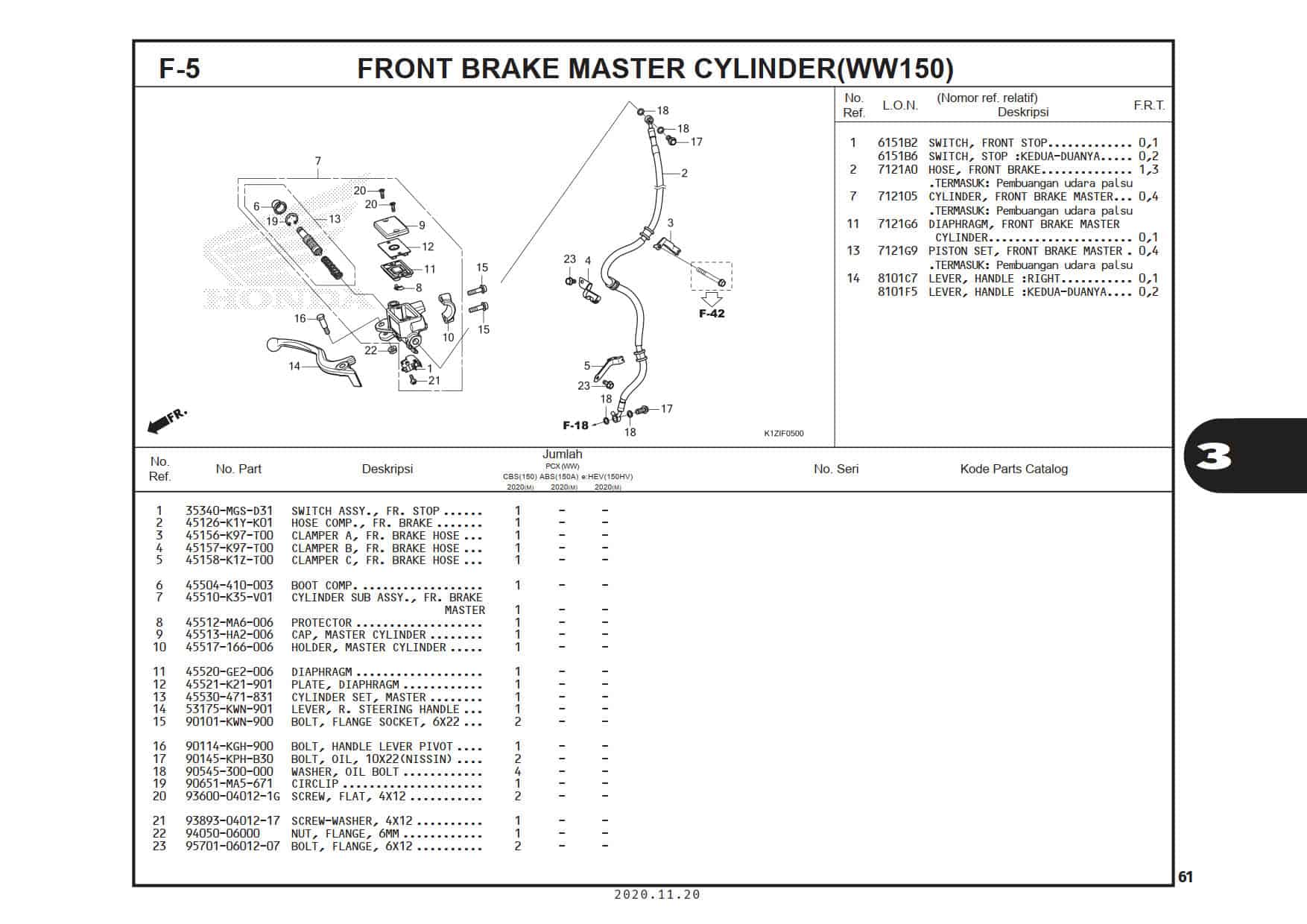

F-5 Front Brake Master Cylinder(WW150) – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	SWITCH ASSY., FR. STOP Part Number : `35340MGSD31`
1	SWITCH ASSY., FR. STOP Part Number : `35340MA5671`
2	Hose Comp Fr Brk Part Number : `45126K1YK41`
2	HOSE COMP., FR. BRAKE . Part Number : `45126K1YK01`
3	CLAMPER A, FR. BRAKE HOSE Part Number : `45156K97T00`
4	CLAMPER B, FR. BRAKE HOSE Part Number : `45157K97T00`
5	CLAMPER C, FR. BRAKE HOSE Part Number : `45158K1ZT00`
6	BOOT COMP Part Number : `45504410003`
7	CYLINDER SUB ASSY., FR. BRAKE MASTER Part Number : `45510K35V01`
8	PROTECTOR Part Number : `45512MA6006`
9	CAP, MASTER CYLINDER Part Number : `45513HA2006`
10	HOLDER, MASTER CYLINDER Part Number : `45517166006`
11	DIAPHRAGM Part Number : `45520GE2006`
12	PLATE, DIAPHRAGM Part Number : `45521K21901`
13	CYLINDER SET, MASTER Part Number : `45530471831`
13	CYLINDER SET, MASTER Part Number : `45530KET920`
14	LEVER, R. STEERING HANDLE Part Number : `53175KWN901`
15	BOLT, FLANGE SOCKET, 6X22 Part Number : `90101KWN900`
16	BOLT, HANDLE LEVER PIVOT Part Number : `90114KGH900`
17	BOLT, OIL, 10X22(NISSIN) Part Number : `90145KPHB30`
18	WASHER, OIL BOLT Part Number : `90545300000`
19	CIRCLIP Part Number : `90651MA5671`
20	SCREW, FLAT, 4X12 Part Number : `93600040121G`
21	SCREW-WASHER, 4X12 Part Number : `938930401217`
22	NUT, FLANGE, 6MM Part Number : `9405006000`
23	BOLT, FLANGE, 6X12 Part Number : `957010601207`
