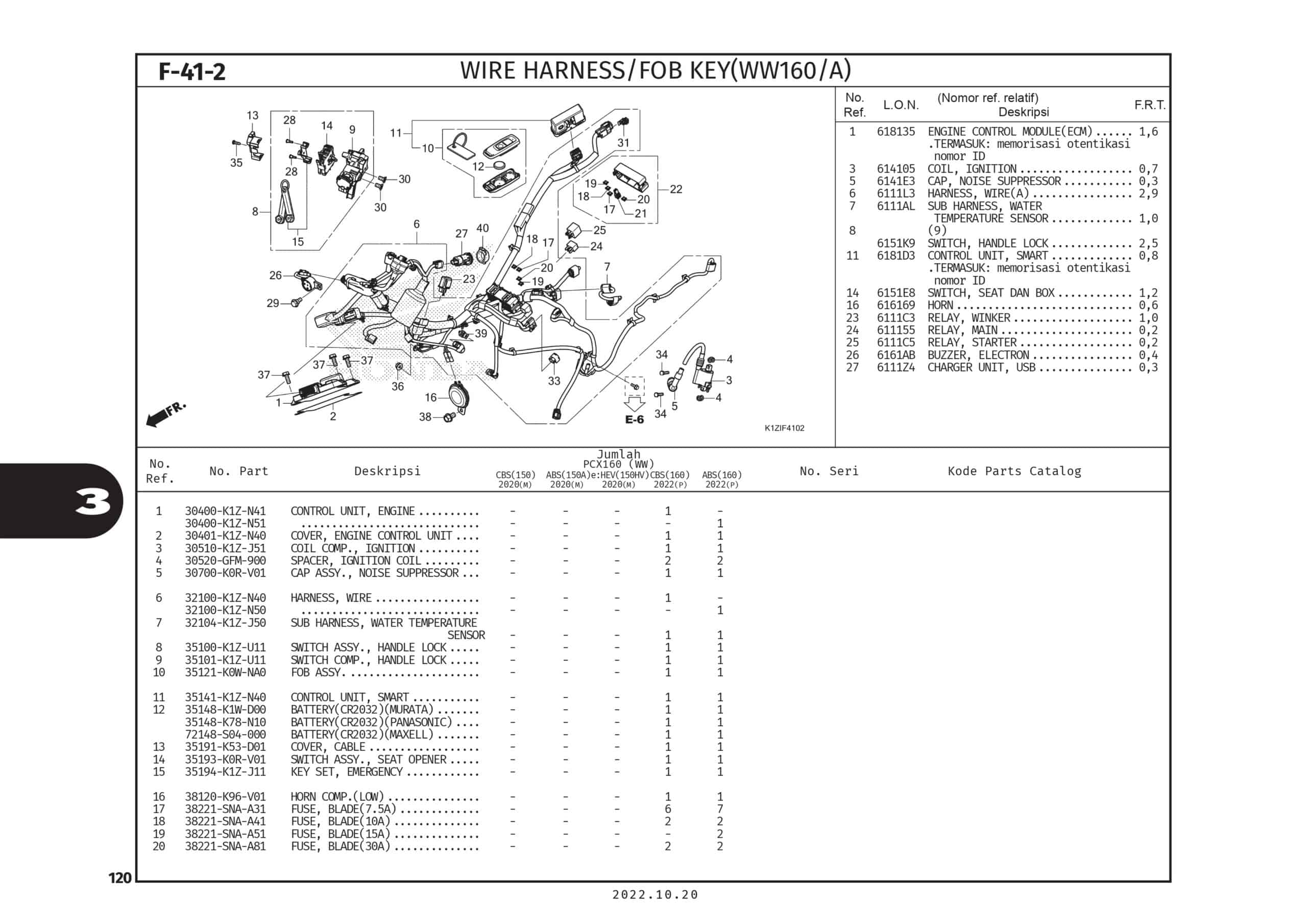

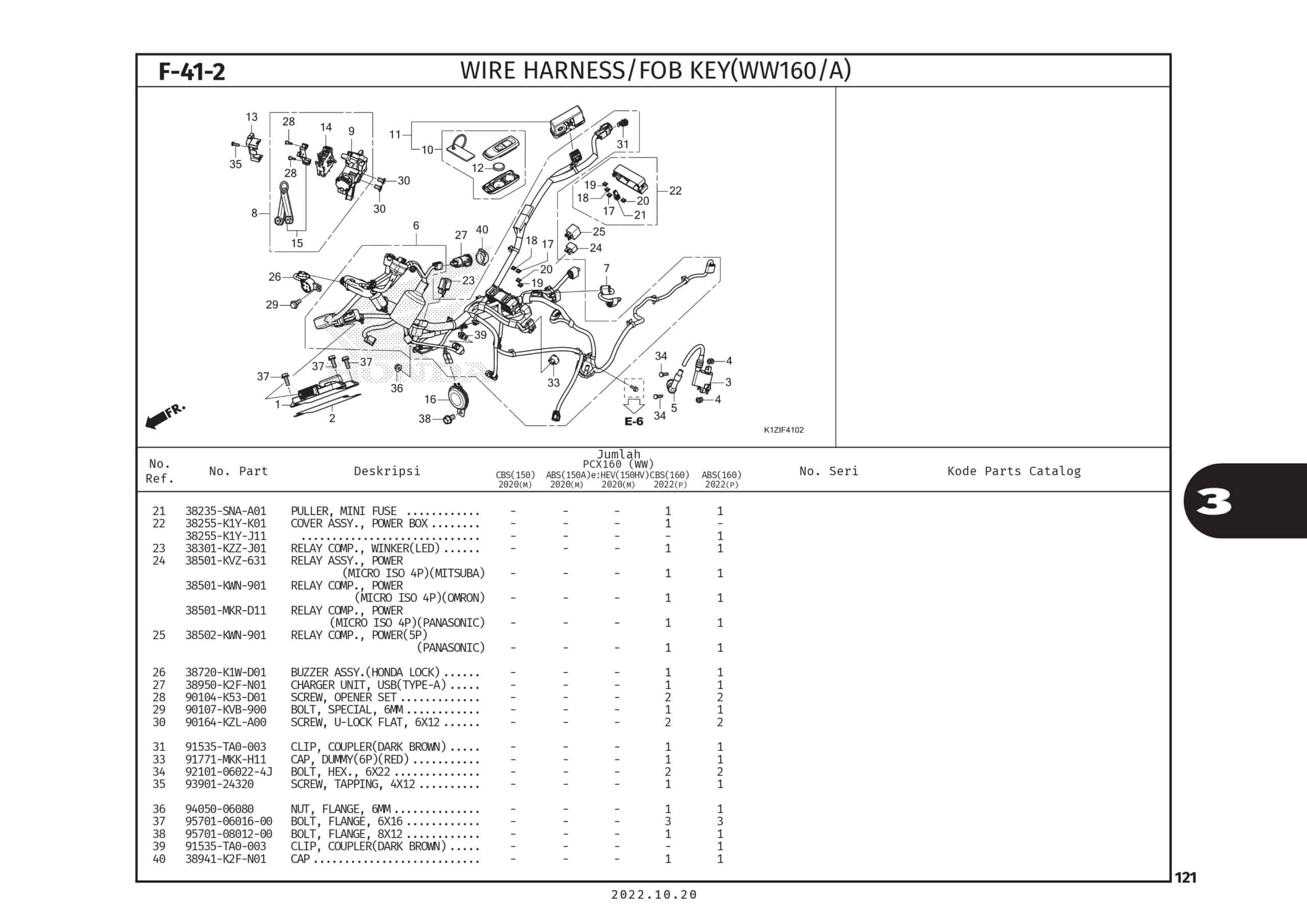

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ENG CONTROL UNIT | 30400K1ZN41 |
|
| 1 | ENG CONTROL UNIT | 30400K1ZN51 |
|
| 2 | COVER,ENG CONTL UNIT | 30401K1ZN40 |
|
| 3 | COIL COMP,IGN(MP39) | 30510K1ZJ51 |
|
| 4 | SPACER IGN COIL | 30520GFM900 |
|
| 5 | CAP ASSY., NOISE SUPPRESSOR | 30700K0RV01 |
|
| 6 | HARNESS WIRE | 32100K1ZN40 |
|
| 6 | HARNESS WIRE | 32100K1ZN50 |
|
| 7 | SUB HARNESS,TW SENSOR | 32104K1ZJ50 |
|
| 8 | SWITCH ASSY,HNDL LOCK | 35100K1ZU11 |
|
| 9 | SWITCH COMP,HNDL LOCK | 35101K1ZU11 |
|
| 10 | SET,FOB ASSY | 35121K0WNA0 |
|
| 11 | SET,SMART CONTROL UNIT | 35141K1ZN40 |
|
| 12 | BATTERY | 35148K78N10 |
|
| 13 | COVER CABLE | 35191K53D01 |
|
| 14 | SWITCH ASSY., SEAT OPENER | 35193K0RV01 |
|
| 15 | SET,EMERGENCY KEY | 35194K1ZJ11 |
|
| 16 | HORN COMP (LOW) | 38120K96V01 |
|
| 17 | FUSE, BLADE(7.5A) | 38221SNAA31 |
|
| 18 | FUSE, BLADE(10A) | 38221SNAA41 |
|
| 19 | FUSE, BLADE(15A) | 38221SNAA51 |
|
| 20 | FUSE, BLADE(30A) | 38221SNAA81 |
|
| 21 | PULLER MINI FUSE | 38235SNAA01 |
|
| 22 | COVER ASSY,POWER BOX | 38255K1YK01 |
|
| 22 | COVER ASSY,POWER BOX | 38255K1YJ11 |
|
| 23 | RELAY COMP,LED WIN | 38301KZZJ01 |
|
| 24 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 24 | RELAY COMP., POWER | 38501KWN901 |
|
| 24 | RELAY COMP,POWER | 38501MKPDN1 |
|
| 24 | RELAY COMP POWER | 38501MKRD11 | - |
| 25 | RELAY COMP,POWER | 38502KWN901 |
|
| 26 | BUZZER ASSY | 38720K1WD01 |
|
| 27 | UNIT COMP,USB CHARGE(TYP-A) | 38950K2FN01 |
|
| 28 | SCREW OPENER SET | 90104K53D01 |
|
| 29 | BOLT SPECIAL 6MM | 90107KVB900 |
|
| 30 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 31 | CLIP, COUPLER(DARK BROWN) | 91535TA0003 |
|
| 33 | DUMMY WPC 6P 025M | 91771MKKH11 |
|
| 34 | BOLT, HEX., 6X22 | 92101060224J |
|
| 35 | SCREW,TAPP 4X12 | 9390124320 |
|
| 36 | NUT,FLANGE 6MM | 9405006080 |
|
| 37 | BOLT FLANGE 6X16 | 957010601600 |
|
| 38 | BOLT, FLANGE, 8X12 | 957010801200 |
|
| 39 | CLIP, COUPLER(DARK BROWN) | 91535TA0003 |
|
| 40 | CAP | 38941K2FN01 |
|
