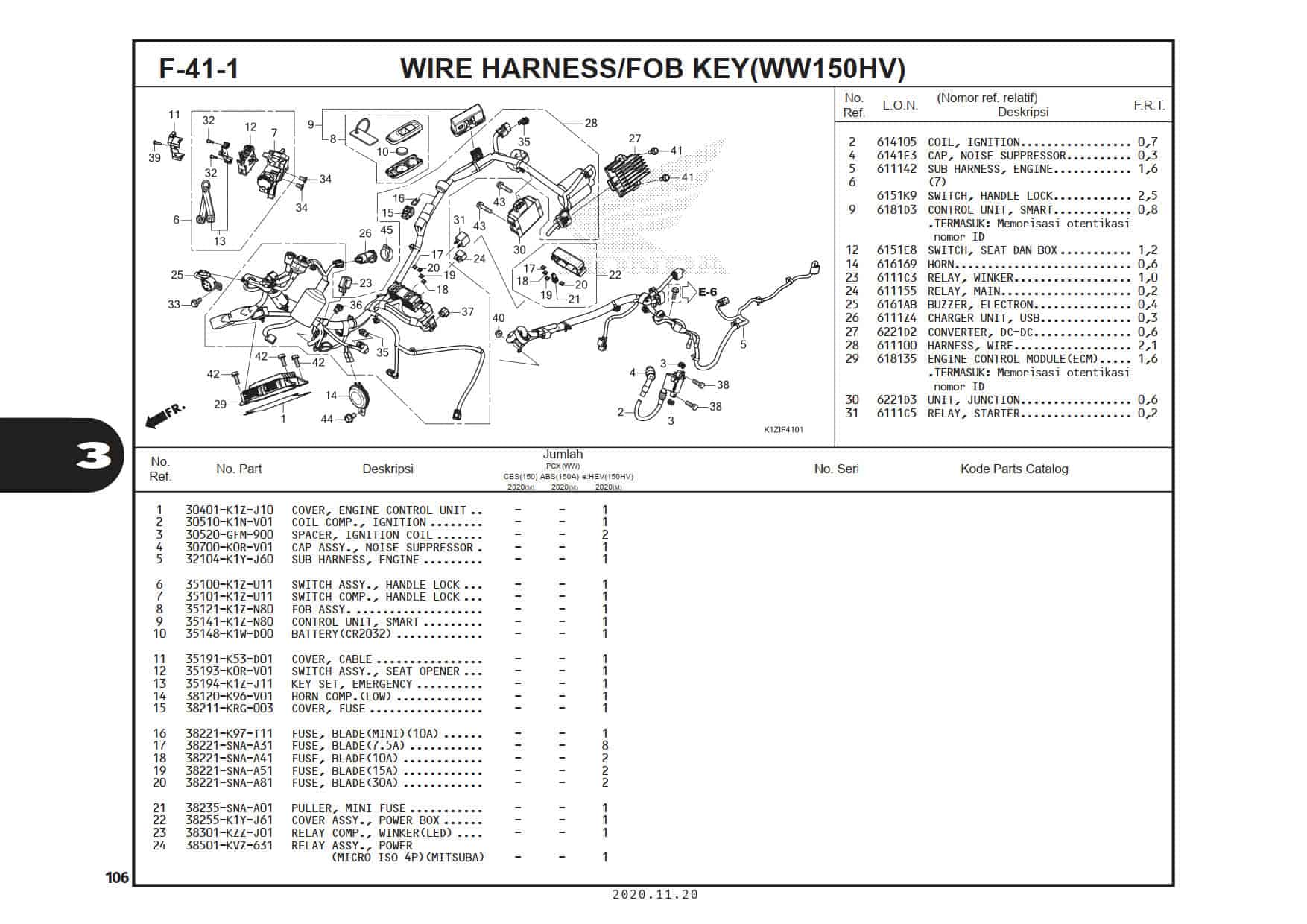

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER,ENG CONTL UNIT | 30401K1ZJ10 |
|
| 2 | COIL COMP,IGN(MP39) | 30510K1NV01 | - |
| 2 | COIL COMP,IGN(MP39) | 30510K1ZJ51 |
|
| 3 | SPACER IGN COIL | 30520GFM900 |
|
| 4 | CAP ASSY., NOISE SUPPRESSOR | 30700K0RV01 |
|
| 5 | SUB HARNESS,ENG | 32104K1YJ60 | - |
| 6 | SWITCH ASSY,HNDL LOCK | 35100K1ZU11 |
|
| 7 | SWITCH COMP,HNDL LOCK | 35101K1ZU11 |
|
| 8 | SET,FOB ASSY | 35121K1ZN80 | - |
| 9 | SET,SMART CONTROL UNIT | 35141K1ZN80 | - |
| 10 | BATTERY | 35148K78N10 |
|
| 11 | COVER CABLE | 35191K53D01 |
|
| 12 | SWITCH ASSY., SEAT OPENER | 35193K0RV01 |
|
| 13 | SET,EMERGENCY KEY | 35194K1ZJ11 |
|
| 14 | HORN COMP (LOW) | 38120K96V01 |
|
| 15 | FUSER COVER | 38211KRG003 | - |
| 16 | BLADE FUSE(MINI)10A | 38221K97T11 | - |
| 17 | FUSE, BLADE(7.5A) | 38221SNAA31 |
|
| 18 | FUSE, BLADE(10A) | 38221SNAA41 |
|
| 19 | FUSE, BLADE(15A) | 38221SNAA51 |
|
| 20 | FUSE, BLADE(30A) | 38221SNAA81 |
|
| 21 | PULLER MINI FUSE | 38235SNAA01 |
|
| 22 | COVER ASSY,POWER BOX | 38255K1YJ61 | - |
| 23 | RELAY COMP,LED WIN | 38301KZZJ01 |
|
| 24 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 24 | RELAY COMP,P0WER | 38501MKPDN1 |
|
| 25 | BUZZER ASSY | 38720K1WD01 |
|
| 26 | UNIT COMP,USB CHARGE(TYP-A) | 38950K2FN01 |
|
| 27 | CONVERTER ASSY,12V DC-DC | 5A800K97T12 | - |
| 27 | CONVERTER ASSY,12V DC-DC | 5A800K97T11 | - |
| 28 | HARNESS WIRE | 5D100K1ZN80 | - |
| 29 | PWR DRIVE UNIT | 5E100K1ZN81 | - |
| 30 | JUNCTION UNIT | 5E200K97T11 | - |
| 31 | RELAY COMP,POWER(4P) | 5E402K97T11 | - |
| 32 | SCREW OPENER SET | 90104K53D01 |
|
| 33 | BOLT SPECIAL 6MM | 90107KVB900 |
|
| 34 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 35 | CLIP, COUPLER(DARK BROWN) | 91535TA0003 |
|
| 36 | CLIP, COUPLER(BLACK) | 91565SEL003 |
|
| 37 | CAP, DUMMY(6P)(RED) | 91771MKKH11 |
|
| 38 | BOLT, HEX., 6X22 | 92101060224J |
|
| 39 | SCREW,TAPP 4X12 | 9390124320 |
|
| 40 | NUT,FLANGE 6MM | 9405006080 |
|
| 41 | BOLT FLANGE 6X14 | 957010601400 |
|
| 42 | BOLT FLANGE 6X16 | 957010601600 |
|
| 43 | BOLT FLANGE 6X25 | 957010602500 |
|
| 44 | BOLT, FLANGE, 8X12 | 957010801200 |
|
| 45 | CAP | 38941K2FN01 |
|
