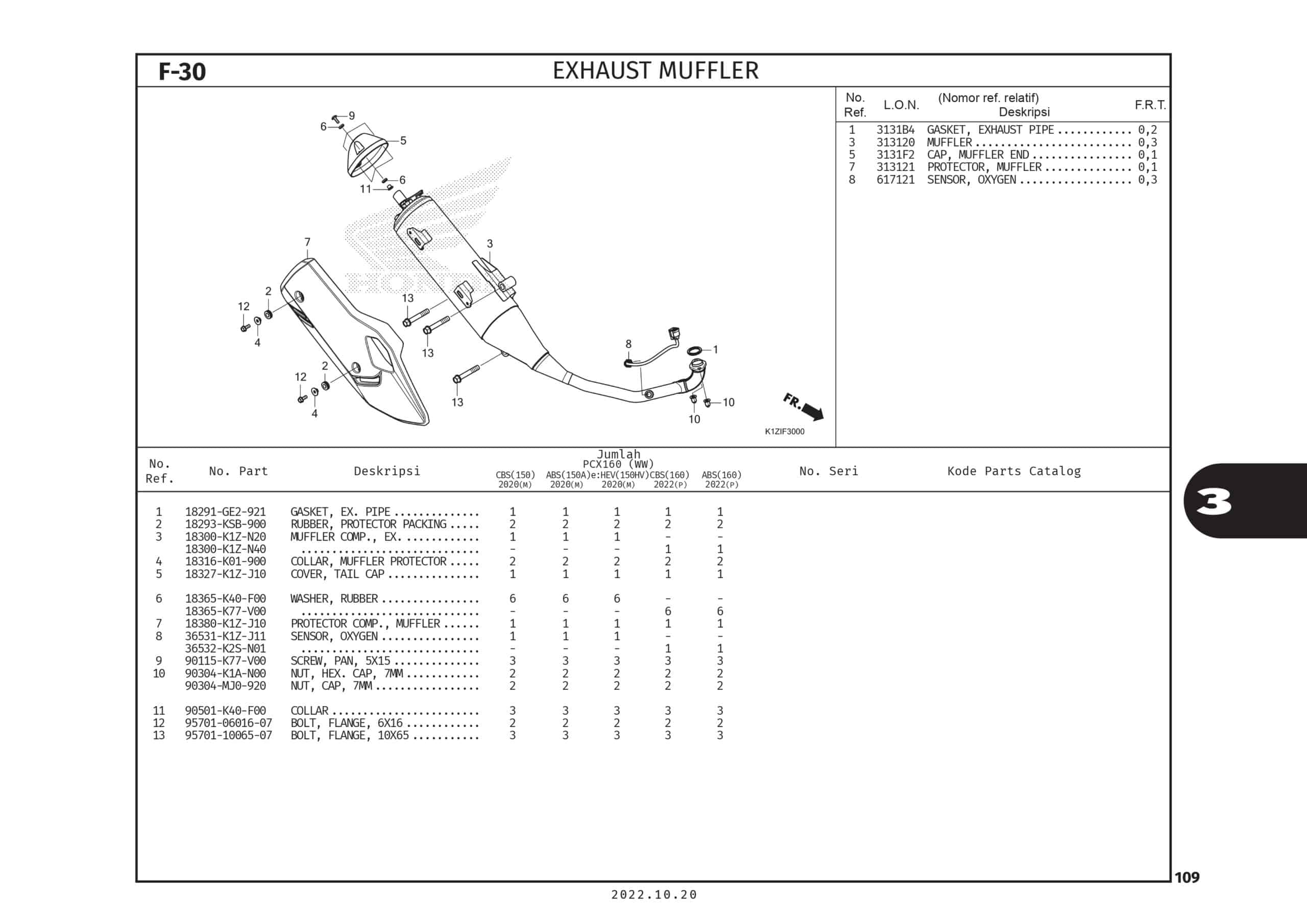

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | GASKET,EXH PIPE | 18291GE2921 |
|
| 2 | RUBBER PKG PROTECTOR | 18293KSB900 |
|
| 3 | MUFFLER COMP | 18300K1ZN21 |
|
| 3 | MUFFLER COMP,EXH | 18300K1ZN40 |
|
| 4 | COLLAR MUFF PROTE | 18316K01900 |
|
| 5 | COVER,TAIL CAP | 18327K1ZJ10 |
|
| 6 | WASHER RUBBER | 18365K40F00 |
|
| 6 | WASHER RUBBER | 18365K77V00 | - |
| 7 | PROTECTOR COMP,MUFFLER | 18380K1ZJ10 |
|
| 8 | SENSOR,OXYGEN | 36531K1ZJ11 |
|
| 8 | SENSOR,OXYGEN | 36532K2SN01 |
|
| 9 | SCREW PAN 5X15 | 90115K77V00 |
|
| 10 | NUT HEX CAP 7MM | 90304K1AN00 |
|
| 10 | NUT HEX CAP 7MM | 90304MJ0920 |
|
| 11 | COLLAR | 90501K40F00 |
|
| 12 | BOLT FLANGE 6X16 | 957010601607 |
|
| 13 | BOLT, FLANGE, 10X65 | 957011006507 |
|
