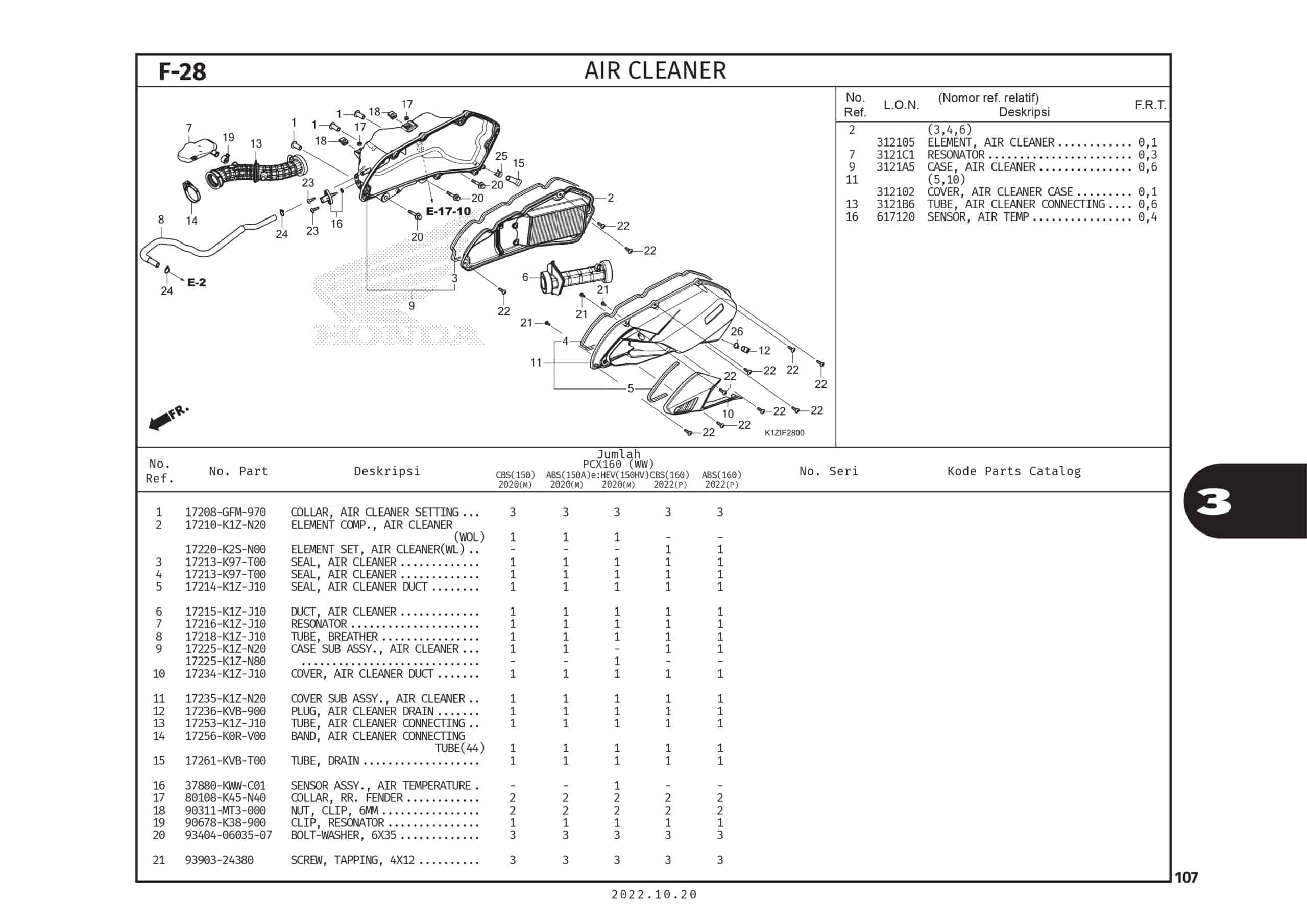

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COLLAR, AIR CLEANER SETTING | 17208GFM970 |
|
| 2 | ELEMENT COMP,AIR/C | 17210K1ZN20 |
|
| 2 | ELEMENT COMP,AIR/C | 17220K2SN00 |
|
| 3 | SEAL,AIR/C | 17213K97T00 |
|
| 4 | SEAL,AIR/C | 17213K97T00 |
|
| 5 | SEAL,AIR/C DUCT | 17214K1ZJ10 |
|
| 6 | DUCT,AIR/C | 17215K1ZJ10 |
|
| 7 | RESONATOR | 17216K1ZJ10 |
|
| 8 | TUBE,BREATHER | 17218K1ZJ10 |
|
| 9 | CASE SUB ASSY,AIR/C | 17225K1ZN20 |
|
| 9 | CASE SUB ASSY,AIR/C | 17225K1ZN80 |
|
| 10 | COVER,AIR/C DUCT | 17234K1ZJ10 |
|
| 11 | COVER SUB ASSY,AIR/C | 17235K1ZN20 |
|
| 12 | PLUG A/C DRAIN | 17236KVB900 |
|
| 13 | TUBE,AIR/C CONNECTING | 17253K1ZJ10 |
|
| 14 | BAND, AIR CLEANER CONNECTING | 17256K0RV00 |
|
| 15 | TUBE DRAIN | 17261KVBT00 |
|
| 16 | SENSOR ASSY., AIR TEMP | 37880KWWC01 |
|
| 17 | COLLAR RR FENDER | 80108K45N40 |
|
| 17 | COLLAR RR FENDER | 80108K1Z920 |
|
| 18 | NUT CLIP 6MM | 90311MT3000 |
|
| 19 | CLIP,RESONATOR | 90678K38900 |
|
| 20 | BOLT-WASH, 6X 35 | 934040603507 |
|
| 21 | SCREW TAPPING 4X12 | 9390324380 |
|
| 22 | SCREW,TAPP 5X2 | 9390325480 |
|
| 23 | SCREW, TAPPING, 5X20 | 93913255J0 |
|
| 24 | CLIP, TUBE(B12.5) | 9500202130 |
|
| 25 | CLAMP, TUBE(D12) | 950024120008 |
|
| 26 | CLIP, TUBE(C12) | 9500280000 |
|
