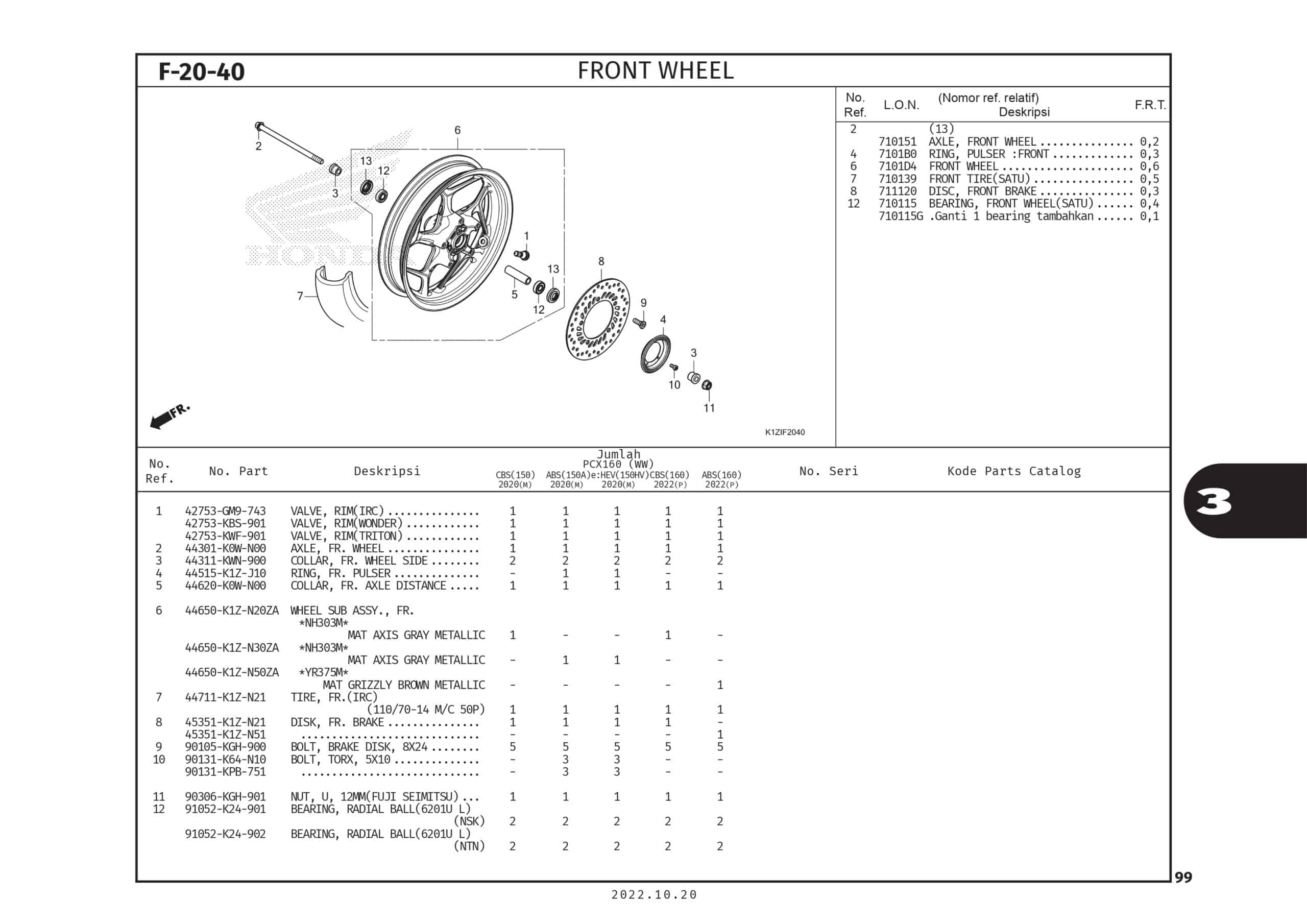

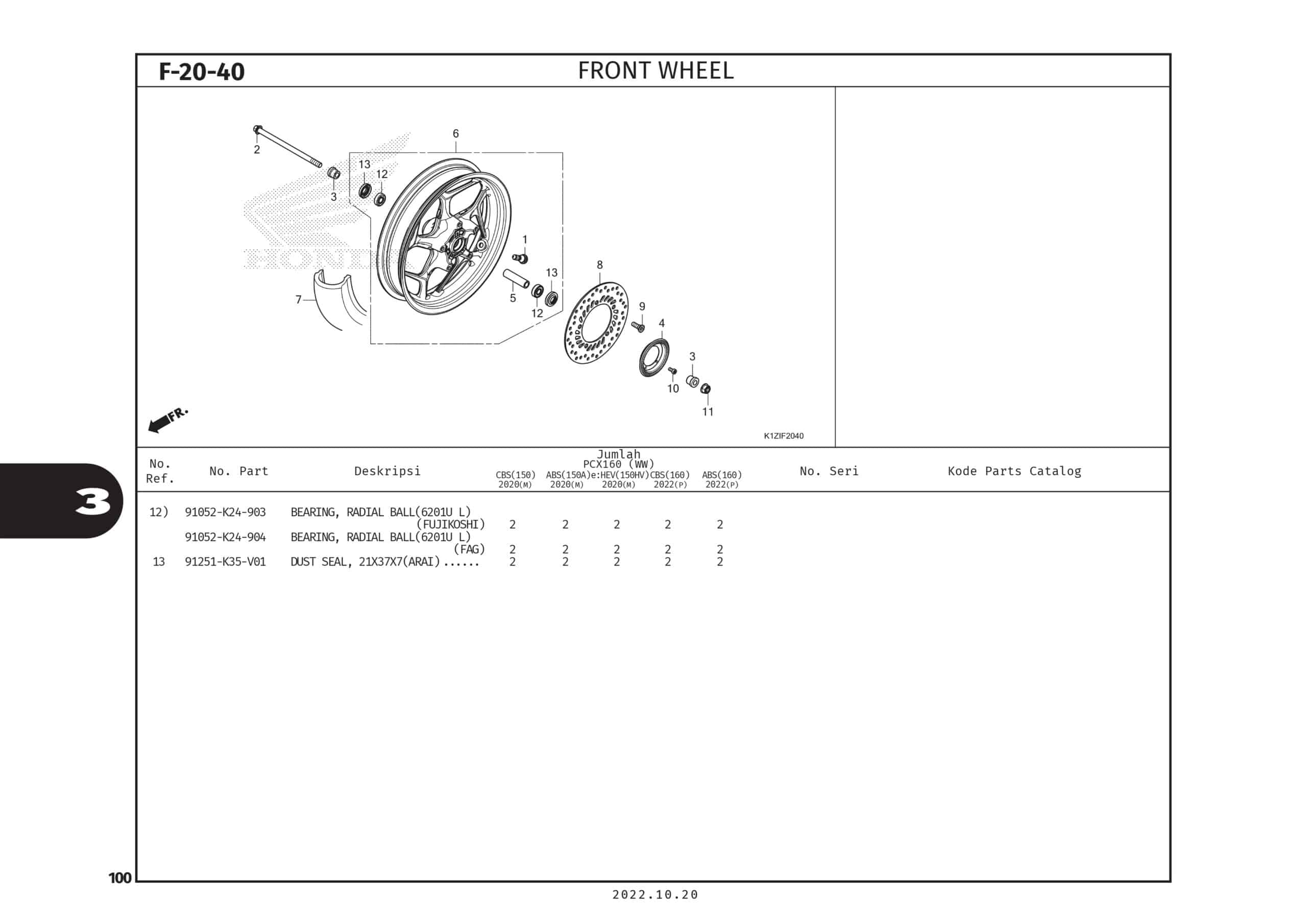

F-20-40 Front Wheel – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	VALVE, RIM(IRC) Part Number : `42753GM9743`
1	VALVE, RIM(WONDER) Part Number : `42753KBS901`
1	VALVE, RIM(TRITON) Part Number : `42753KWF901`
2	AXLE, FR. WHEEL Part Number : `44301K0WN00`
3	COLLAR, FR. WHEEL SIDE Part Number : `44311KWN900`
4	RING, FR. PULSER Part Number : `44515K1ZJ10`
5	COLLAR, FR. AXLE DISTANCE Part Number : `44620K0WN00`
6	WHEEL SUB ASSY., FR. Part Number : `44620K0WN00`
6	WHEEL SUB ASSY,FRONT (GREY) Part Number : `44650K1ZN30ZA`
6	WHEEL SUB ASSY, FR. (BROWN) Part Number : `44650K1ZN50ZA`
7	TIRE, FR.(IRC) Part Number : `44711K1ZN21`
8	DISK, FR. BRAKE Part Number : `45351K1ZN21`
8	DISK,FRONT BRAKE Part Number : `45351K1ZN51`
9	BOLT, BRAKE DISK, 8X24 Part Number : `90105KGH900`
10	BOLT, TORX, 5X10 Part Number : `90131K64N10`
10	BOLT, TORX, 5X11 Part Number : `90131KPB751`
11	NUT, U, 12MM(FUJI SEIMITSU) Part Number : `90306KGH901`
12	BEARING, RADIAL BALL(6201U L) Part Number : `91052K24903`
12	BEARING, RADIAL BALL(6201U L) Part Number : `91052K24904`
12	BEARING, RADIAL BALL(6201) Part Number : `91052K03N41`
12	BEARING, RADIAL BALL(6201) Part Number : `HB6201RS`
13	DUST SEAL, 21X37X7(ARAI) Part Number : `91251K35V01`
