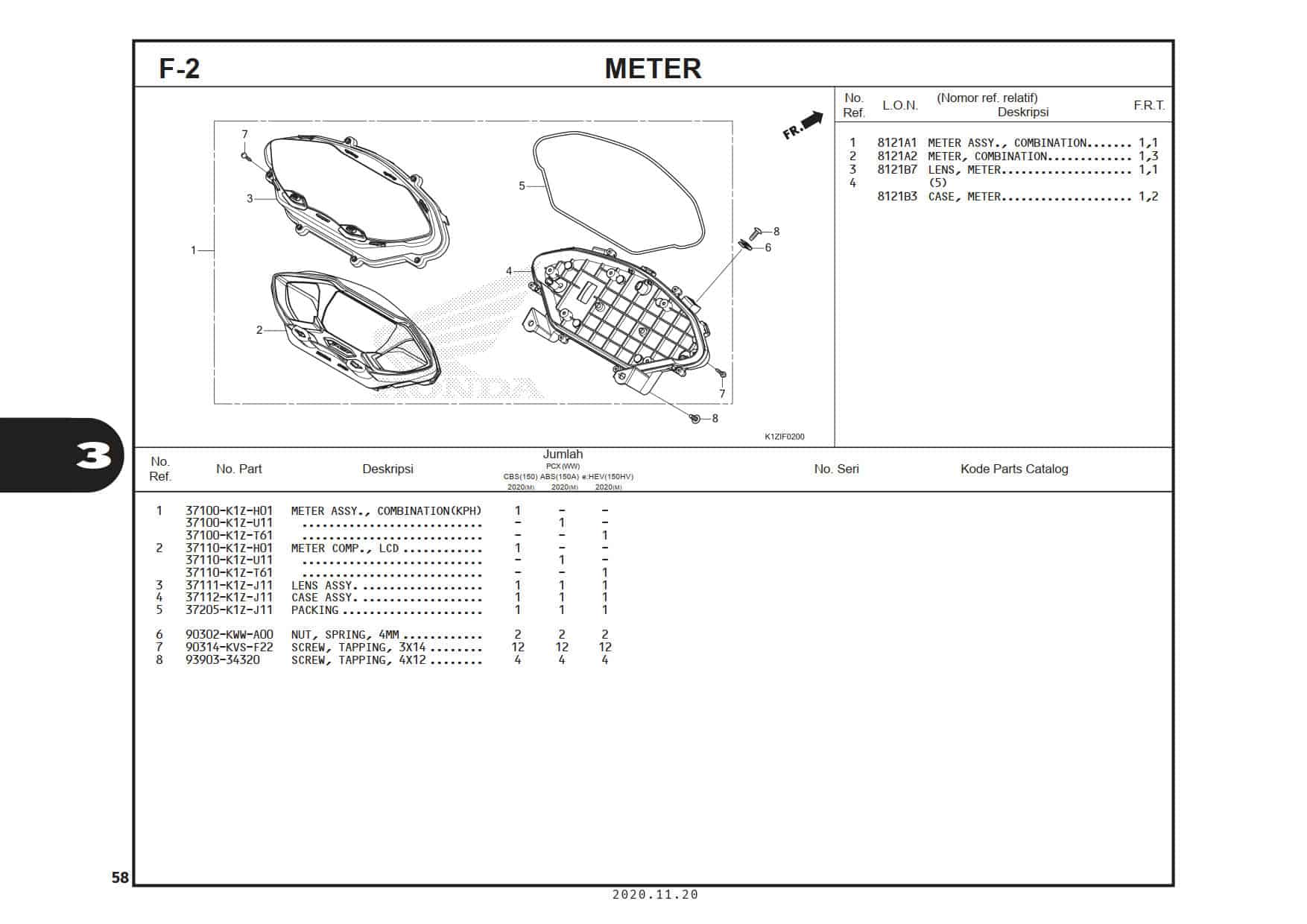

F-2 Meter – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	METER ASSY., COMBINATION(KPH) Part Number : `37100K1ZH01`
1	METER ASSY., COMBINATION Part Number : `37100K1ZH02`
1	METER ASSY., COMBINATION Part Number : `37100K1YK01`
1	METER ASSY., COMBINATION(KPH) Part Number : `37100K1ZU11`
1	METER ASSY., COMBINATION Part Number : `37100K1ZU12`
1	METER ASSY., COMBINATION(KPH) Part Number : `37100K1ZT61`
1	METER ASSY., COMBINATION Part Number : `37100K1YK11`
2	METER COMP., LCD Part Number : `37110K1ZH01`
2	METER COMP., LCD Part Number : `37110K1ZU11`
2	METER COMP., LCD Part Number : `37110K1ZT61`
3	LENS ASSY. Part Number : `37111K1ZJ11`
4	CASE ASSY. Part Number : `37112K1ZJ11`
5	PACKING Part Number : `37205K1ZJ11`
6	NUT, SPRING, 4MM Part Number : `90302KWWA00`
6	NUT, SPRING, 4MM Part Number : `90302K97600`
6	NUT, SPRING, 4MM Part Number : `90302SA4003`
7	SCREW, TAPPING, 3X14 Part Number : `90314KVSF22`
8	SCREW, TAPPING, 4X12 Part Number : `9390334320`
