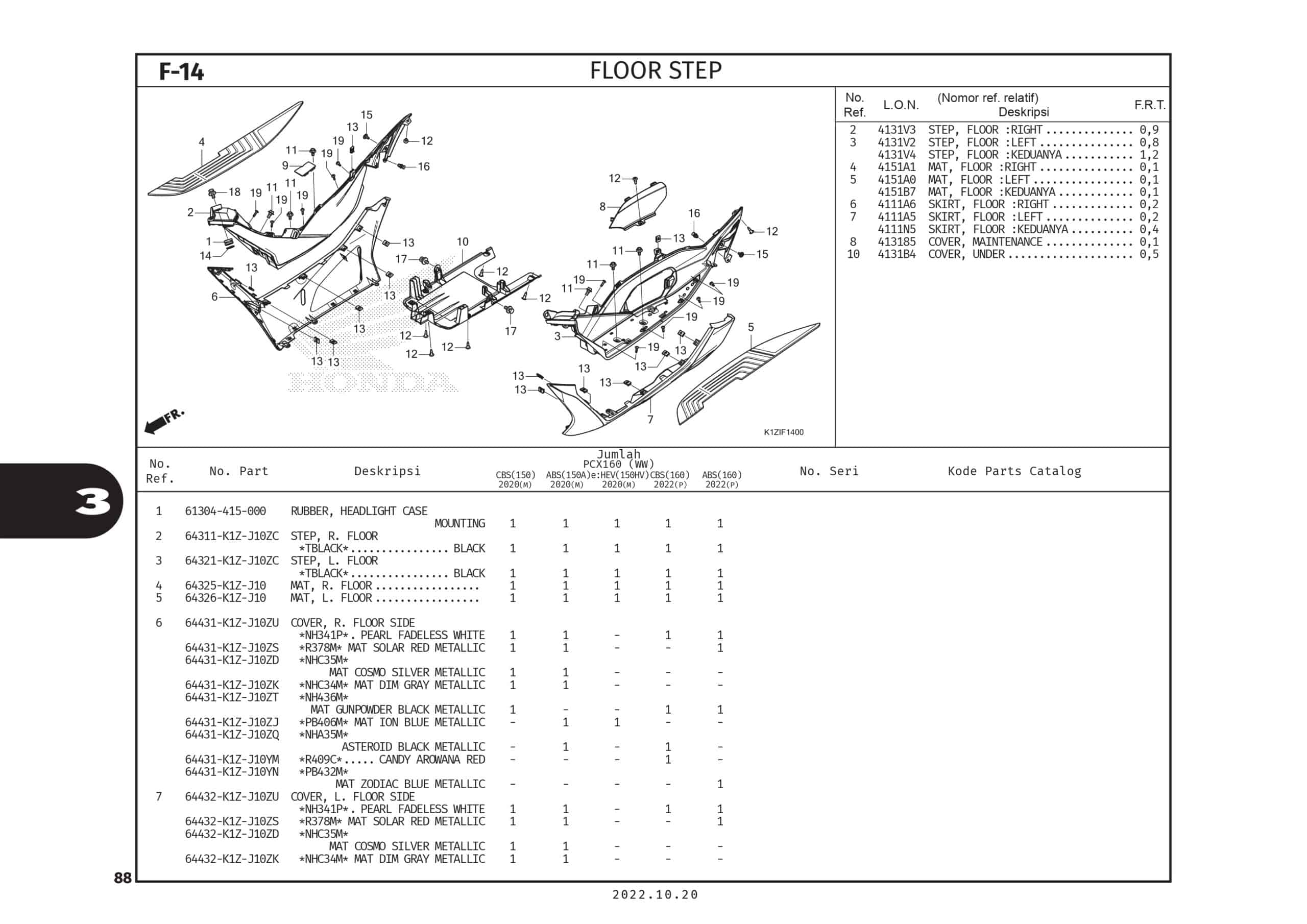

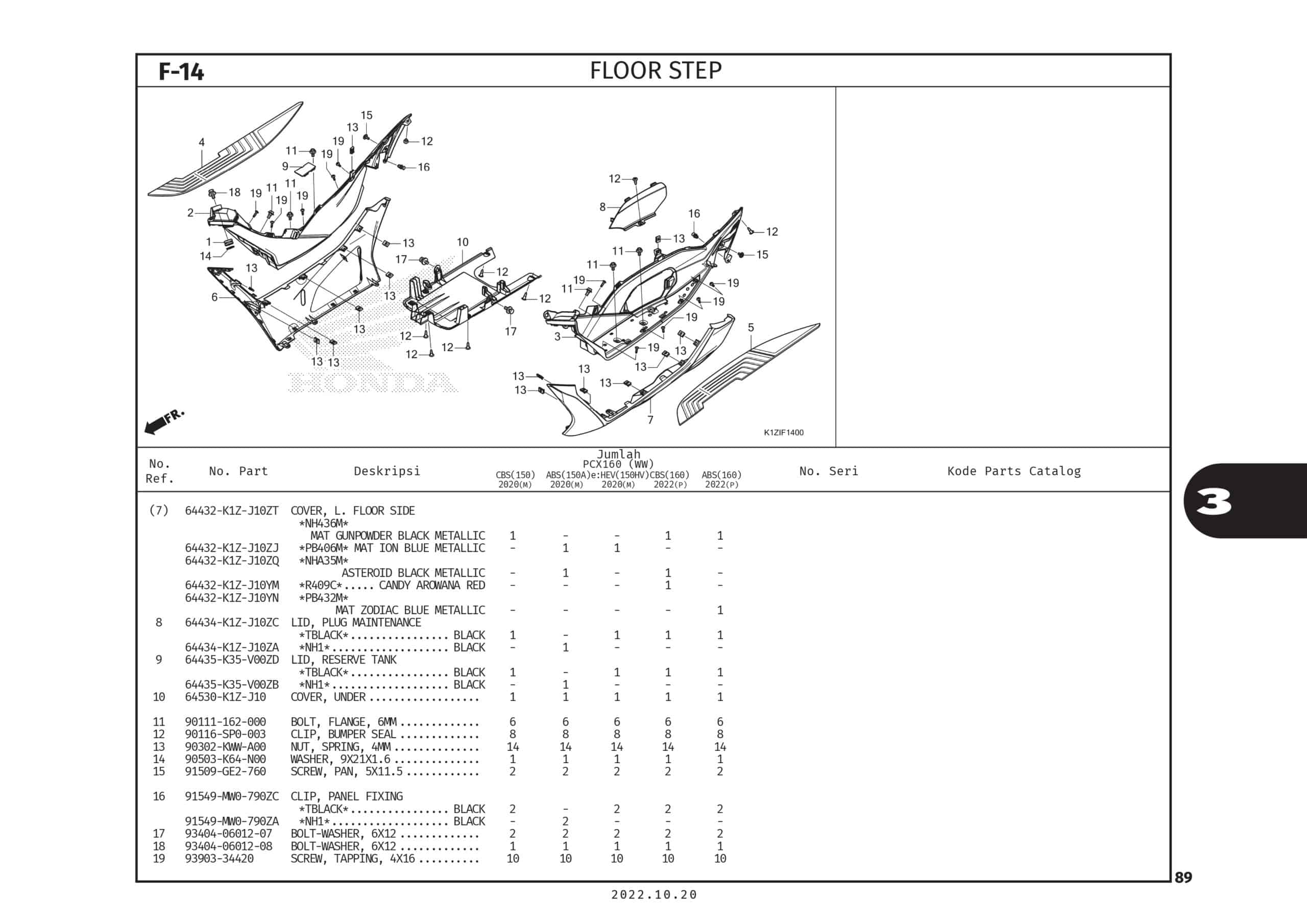

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER,HEADLIGHT | 61304415000 |
|
| 2 | STEP, R FLOOR | 64311K1ZJ10ZC |
|
| 3 | STEP, L FLOOR | 64321K1ZJ10ZC |
|
| 4 | MAT,R FLOOR | 64325K1ZJ10 |
|
| 5 | MAT,L FLOOR | 64326K1ZJ10 |
|
| 6 | COVER,R FLOOR SIDE (MT DI GR) | 64431K1ZJ10ZK |
|
| 6 | COVER,R FLOOR SIDE (MT SO RED) | 64431K1ZJ10ZS |
|
| 6 | COVER,R FLOOR SIDE (PL FD WH) | 64431K1ZJ10ZU |
|
| 6 | COVER,R FLOOR SIDE (MT GN BL) | 64431K1ZJ10ZT |
|
| 6 | COVER,R FLOOR SIDE (MA BL MT) | 64431K1ZJ10ZJ |
|
| 6 | COVER,R FLOOR SIDE (AS BK MT) | 64431K1ZJ10ZQ |
|
| 6 | COVER,R FLOOR SIDE (CA AR RD) | 64431K1ZJ10YM |
|
| 6 | COVER,R FLOOR SIDE (MT ZO BL) | 64431K1ZJ10YN |
|
| 6 | Cover Right Floor Side (CA AR RD) | 64431K1ZJ10YM |
|
| 7 | COVER,L FLOOR SIDE (MT DI GR) | 64432K1ZJ10ZK |
|
| 7 | COVER,L FLOOR SIDE (MT SO RED) | 64432K1ZJ10ZS |
|
| 7 | COVER,L FLOOR SIDE (PL FD WH) | 64432K1ZJ10ZU |
|
| 7 | COVER,L FLOOR SIDE (MT GN BL) | 64432K1ZJ10ZT |
|
| 7 | COVER,L FLOOR SIDE (MA BL MT) | 64432K1ZJ10ZJ |
|
| 7 | COVER,L FLOOR SIDE (CA AR RD) | 64432K1ZJ10YM |
|
| 7 | COVER,L FLOOR SIDE (MT ZO BL) | 64432K1ZJ10YN |
|
| 8 | Lid Plug Maintenance | 64434K1ZJ10ZC |
|
| 9 | LID, RESERVE TANK | 64435K35V00ZB |
|
| 10 | COVER,UNDER | 64530K1ZJ10 |
|
| 11 | BOLT FLANGE 6MM | 90111162000 |
|
| 12 | CLIP BUMPER HEX,6MM | 90116SP0003 |
|
| 12 | Clip Bumper Seal | 90116K2PV61 |
|
| 13 | NUT SPRING 4MM | 90302KWWA00 |
|
| 13 | NUT SPRING 4MM | 90302K97600 |
|
| 13 | NUT SPRING 4MM | 90302SA4003 |
|
| 14 | WASHER, 9X21X1.6 | 90503K64N00 |
|
| 15 | SCREW PAN 5X11.5 | 91509GE2760 |
|
| 16 | CLIP, PANEL FIXING NH1 BLACK | 91549MW0790ZA |
|
| 17 | BOLT WASHER 6X12 | 934040601207 |
|
| 18 | BOLT-WASH,6X12 | 934040601208 |
|
| 19 | SCREW TAPPING 4x16 | 9390334420 |
|
| 19 | SCREW TAPPING 4x16 | 9390334421 |
|
