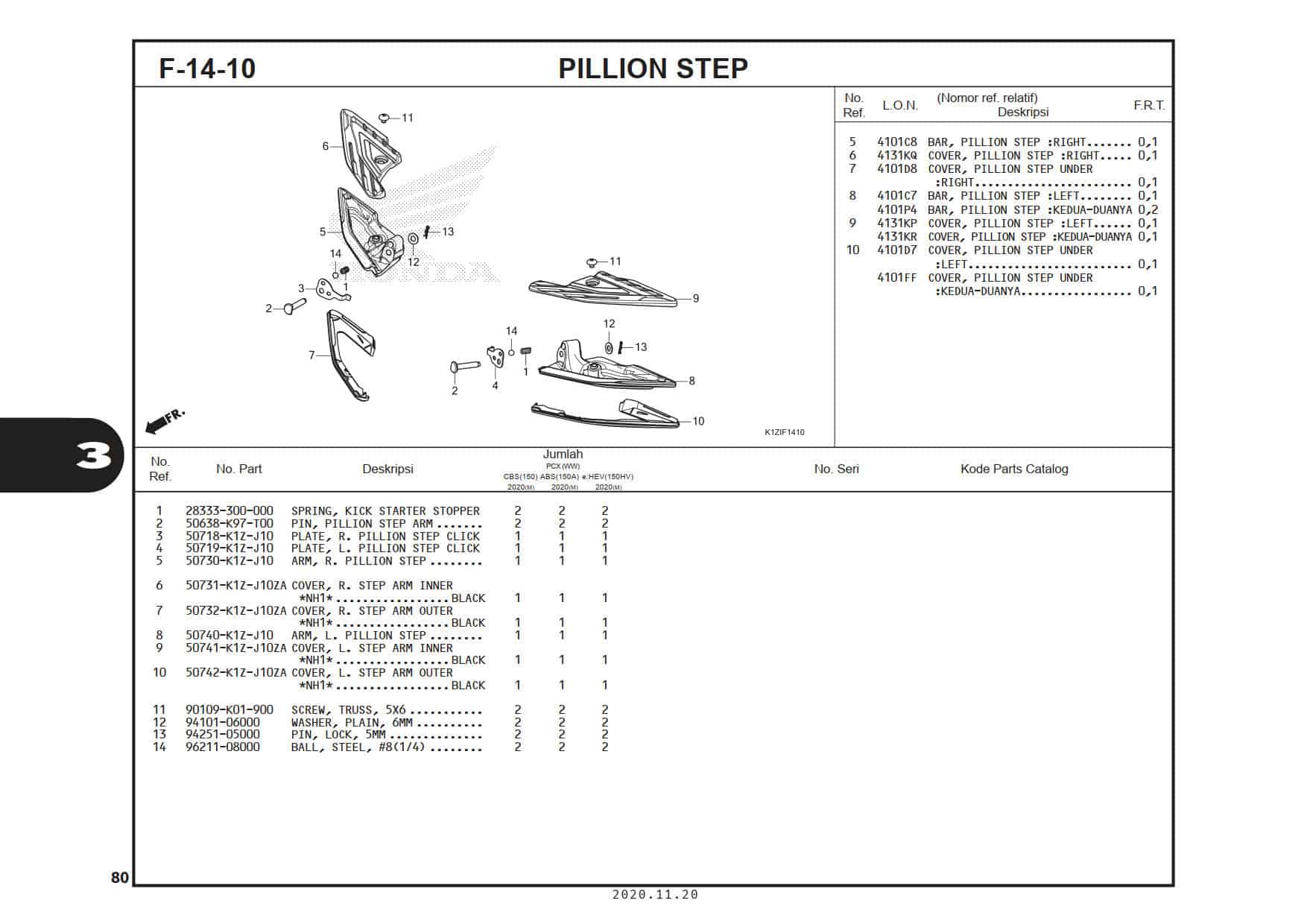

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SPRING, KICK STARTER STOPPER | 28333300000 |
|
| 2 | PIN, PILLION STEP ARM | 50638K97T00 |
|
| 3 | PLATE, R. PILLION STEP CLICK | 50718K1ZJ10 |
|
| 4 | PLATE, L. PILLION STEP CLICK | 50719K1ZJ10 |
|
| 5 | ARM, R. PILLION STEP . | 50730K1ZJ10 |
|
| 6 | COVER, R. STEP ARM INNER | 50731K1ZJ10ZB |
|
| 7 | COVER, R. STEP ARM OUTER | 50732K1ZJ10ZB |
|
| 8 | ARM, L. PILLION STEP | 50740K1ZJ10 |
|
| 9 | COVER, L. STEP ARM INNER | 50741K1ZJ10ZB |
|
| 10 | COVER, L. STEP ARM OUTER | 50742K1ZJ10ZB |
|
| 11 | SCREW, TRUSS, 5X6 | 90109K01900 |
|
| 12 | WASHER, PLAIN, 6MM | 9410106000 |
|
| 13 | PIN, LOCK, 5MM | 9425105000 |
|
| 14 | BALL, STEEL, #8(1/4) | 9621108000 |
|
