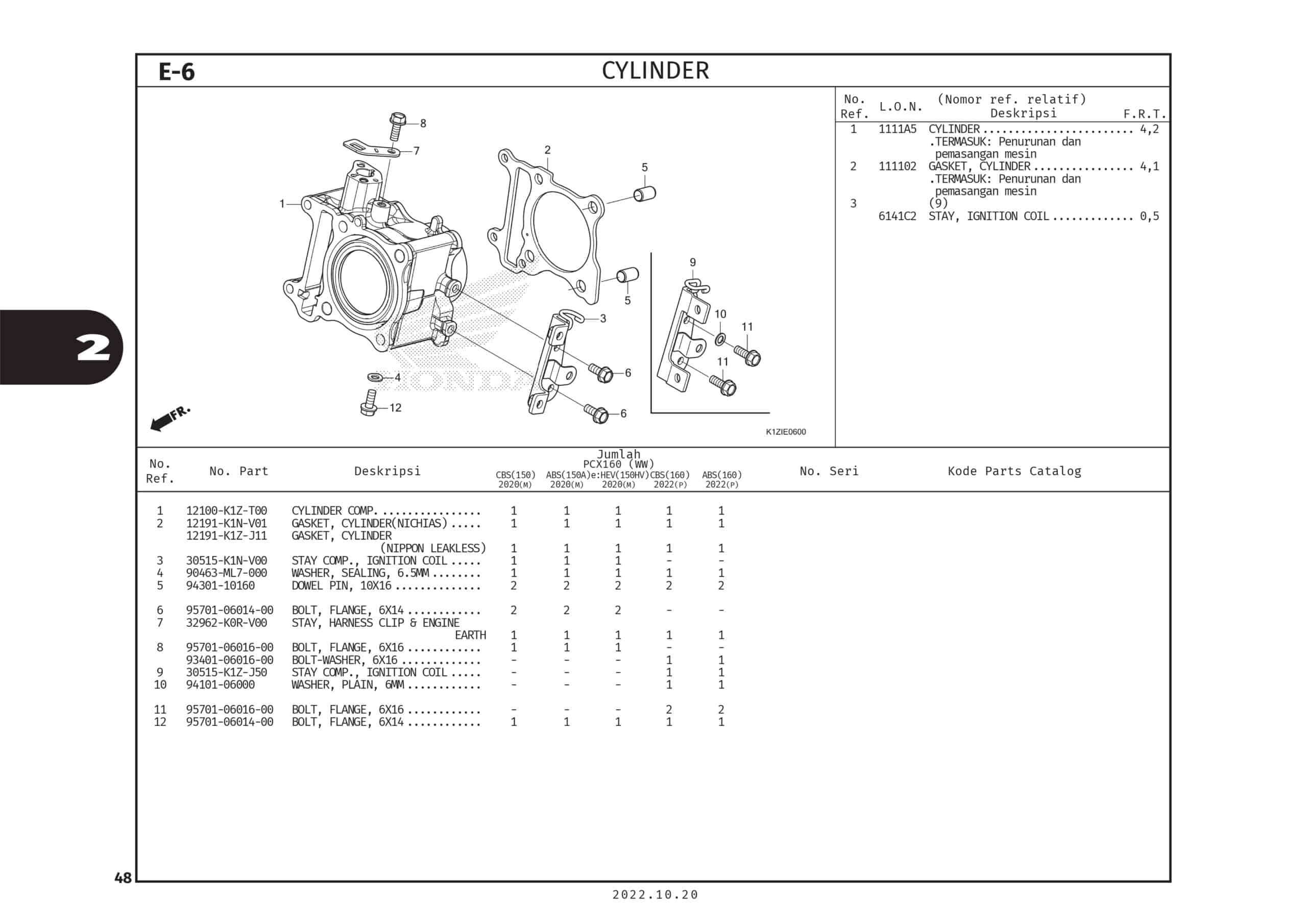

E-6 Cylinder – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	CYLINDER COMP Part Number : `12100K1ZT00`
2	GASKET,CYLINDER HEAD Part Number : `12191K1NV01`
2	GASKET, CYLINDER (NIPPON LEAKLESS) Part Number : `12191K1ZJ11`
3	STAY COMP., IGNITION COIL Part Number : `30515K1NV00`
4	WASHER, SEALING, 6.5MM . Part Number : `90463ML7000`
5	DOWEL PIN, 10X16 Part Number : `9430110160`
6	BOLT, FLANGE, 6X14 Part Number : `957010601400`
7	STAY, HARNESS CLIP & ENGINE EARTH Part Number : `32962K0RV00`
8	BOLT, FLANGE, 6X16 Part Number : `957010601600`
8	BOLT WASHER 6X16 Part Number : `934010601600`
9	STAY COMP,IGN COIL Part Number : `30515K1ZJ50`
10	WASHER PLAIN 6MM Part Number : `9410106000`
11	BOLT FLANGE 6X16 Part Number : `957010601600`
12	BOLT FLANGE 6X14 Part Number : `957010601400`
