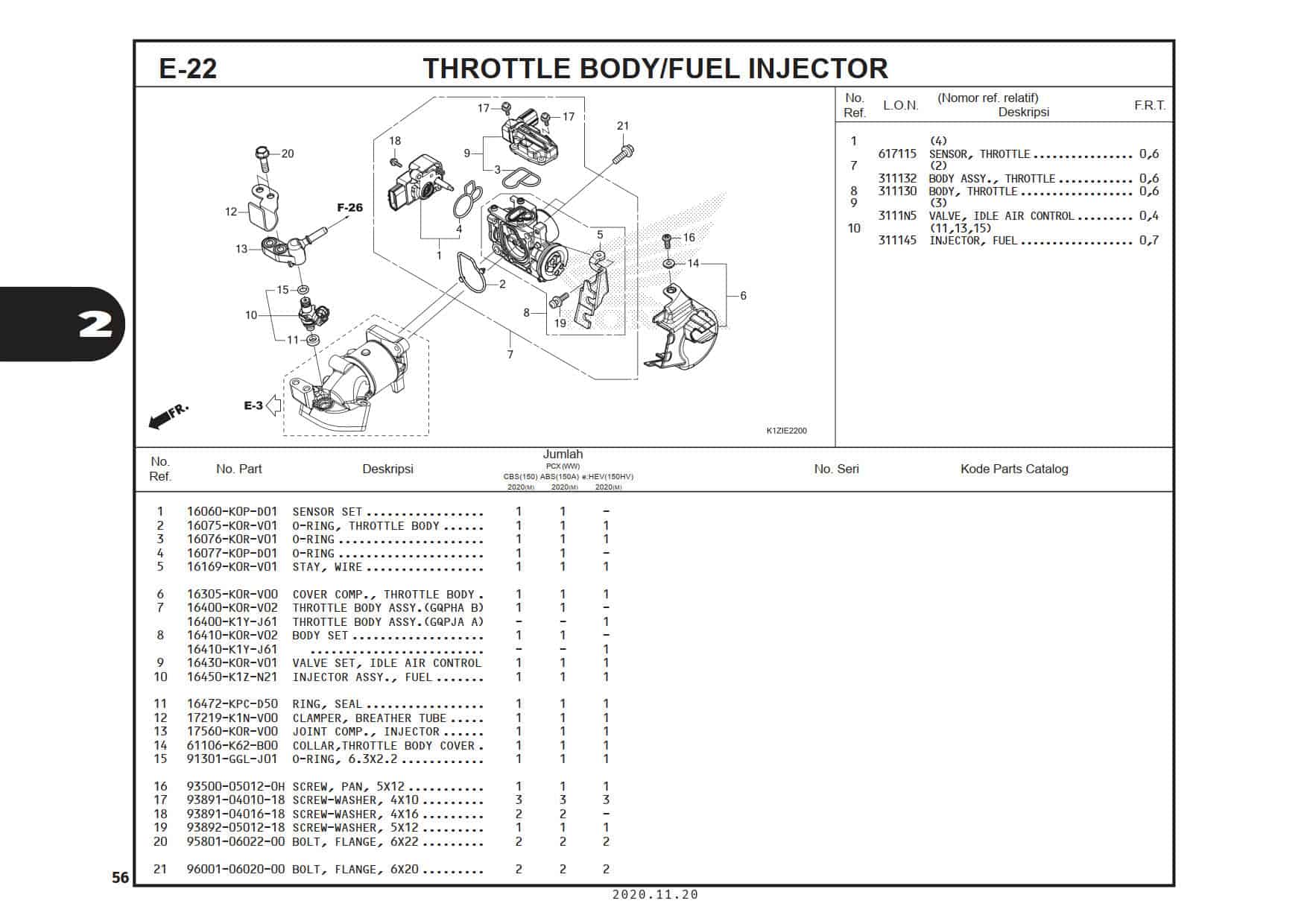

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SENSOR SET | 16060K0PD01 |
|
| 2 | O-RING, THROTTLE BODY | 16075K0RV01 |
|
| 3 | O-RING | 16076K0RV01 |
|
| 4 | O-RING | 16077K0PD01 |
|
| 5 | STAY, WIRE | 16169K0RV01 |
|
| 6 | COVER COMP., THROTTLE BODY | 16305K0RV00 |
|
| 7 | THROTTLE BODY ASSY.(GQPHA B) | 16400K0RV02 |
|
| 7 | THROTTLE BODY ASSY.(GQPJA A) | 16400K1YJ61 | - |
| 8 | BODY SET | 16410K0RV02 |
|
| 8 | BODY SET | 16410K1YJ61 | - |
| 9 | VALVE SET, IDLE AIR CONTROL | 16430K0RV01 |
|
| 10 | INJECTOR ASSY., FUEL | 16450K1ZN21 |
|
| 11 | RING, SEAL | 16472KPCD50 |
|
| 12 | CLAMPER, BREATHER TUBE | 17219K1NV00 |
|
| 13 | JOINT COMP., INJECTOR | 17560K0RV00 |
|
| 14 | COLLAR,THROTTLE BODY COVER | 61106K62B00 |
|
| 15 | O-RING, 6.3X2.2 | 91301GGLJ01 |
|
| 16 | SCREW, PAN, 5X12 | 93500050120H |
|
| 17 | SCREW-WASHER, 4X10 | 938910401018 |
|
| 18 | SCREW-WASHER, 4X16 | 938910401618 |
|
| 19 | SCREW-WASHER, 5X12 | 938920501218 |
|
| 20 | BOLT, FLANGE, 6X22 | 957010602200 |
|
| 21 | BOLT, FLANGE, 6X20 | 960010602000 |
|
