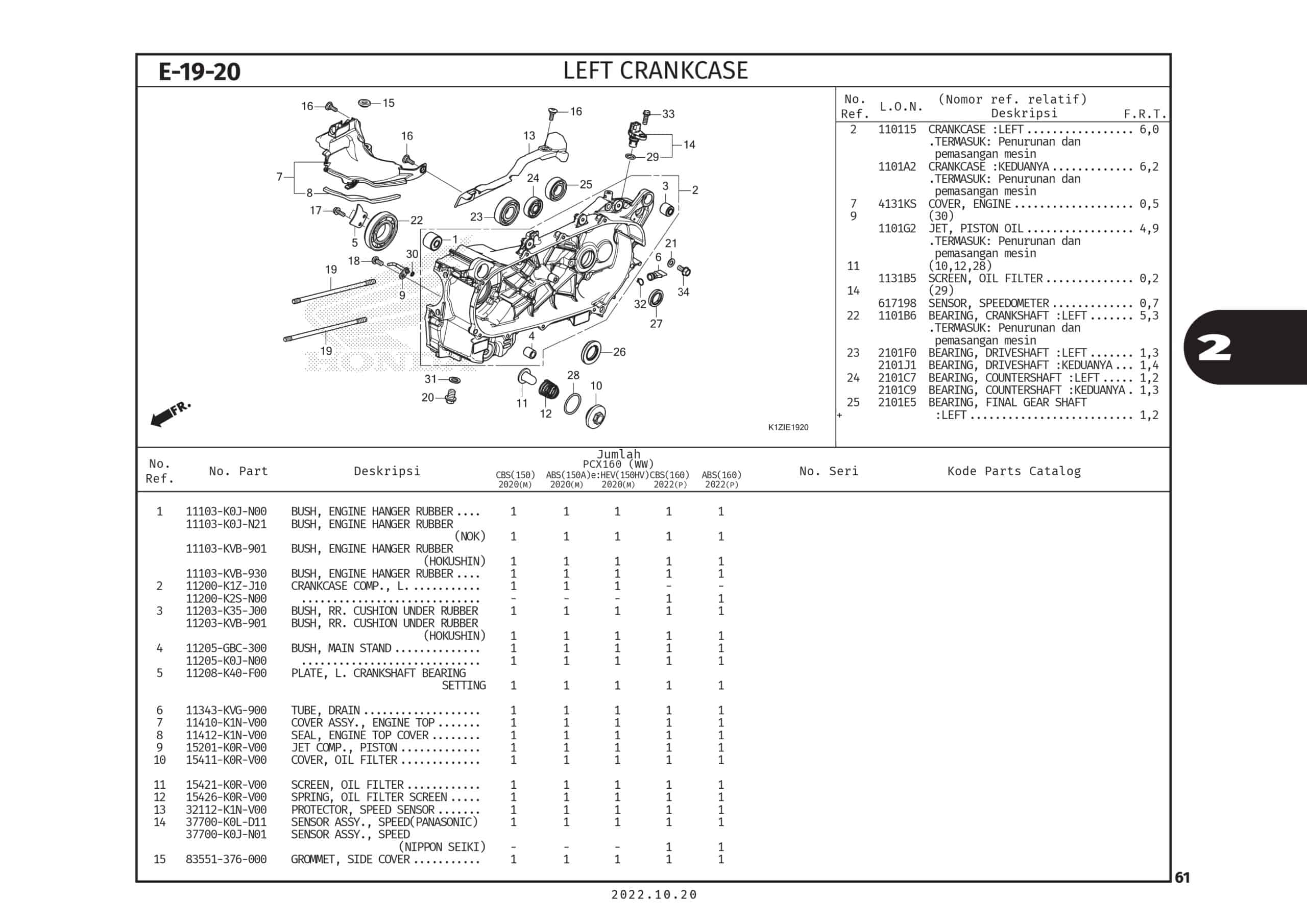

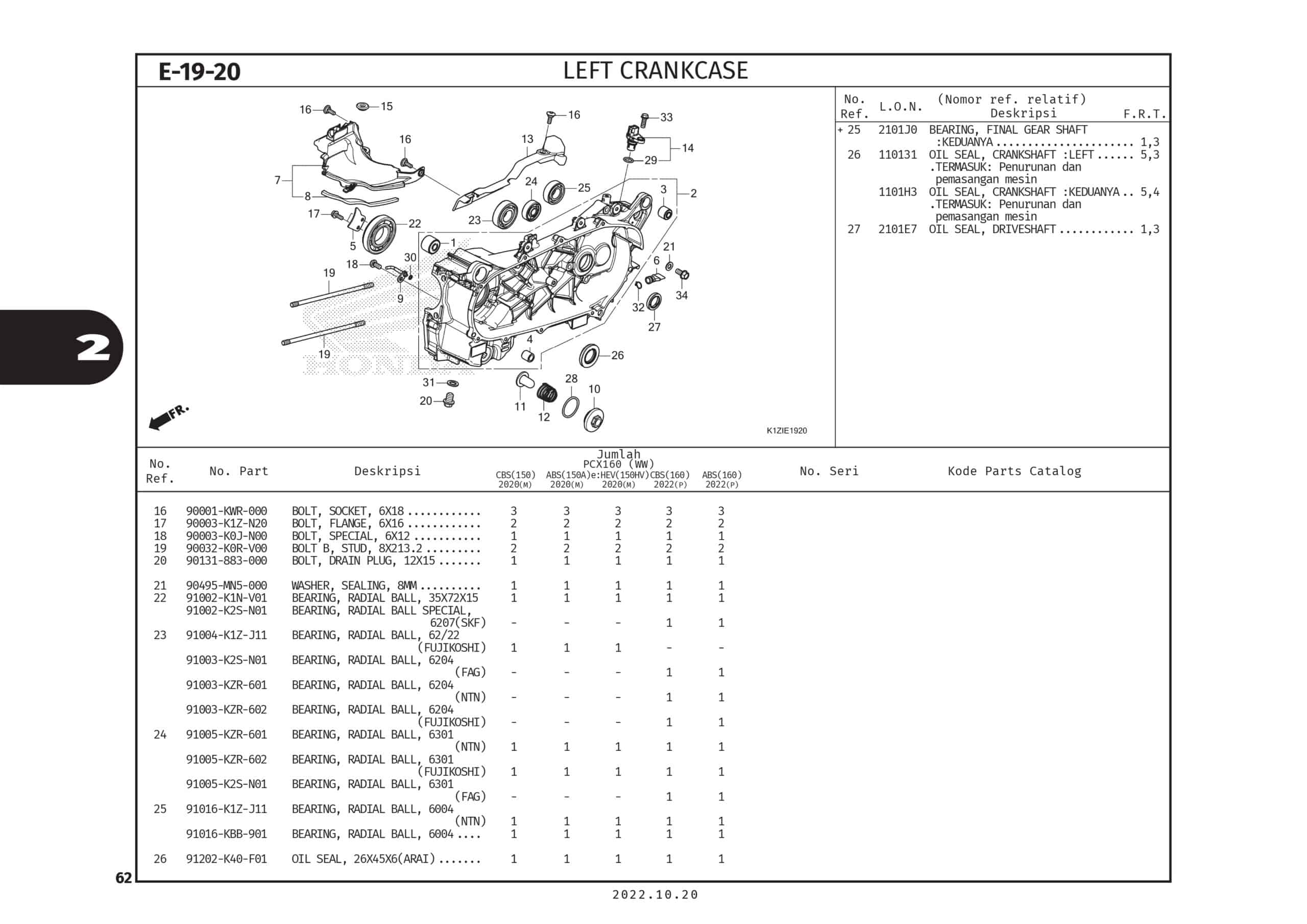

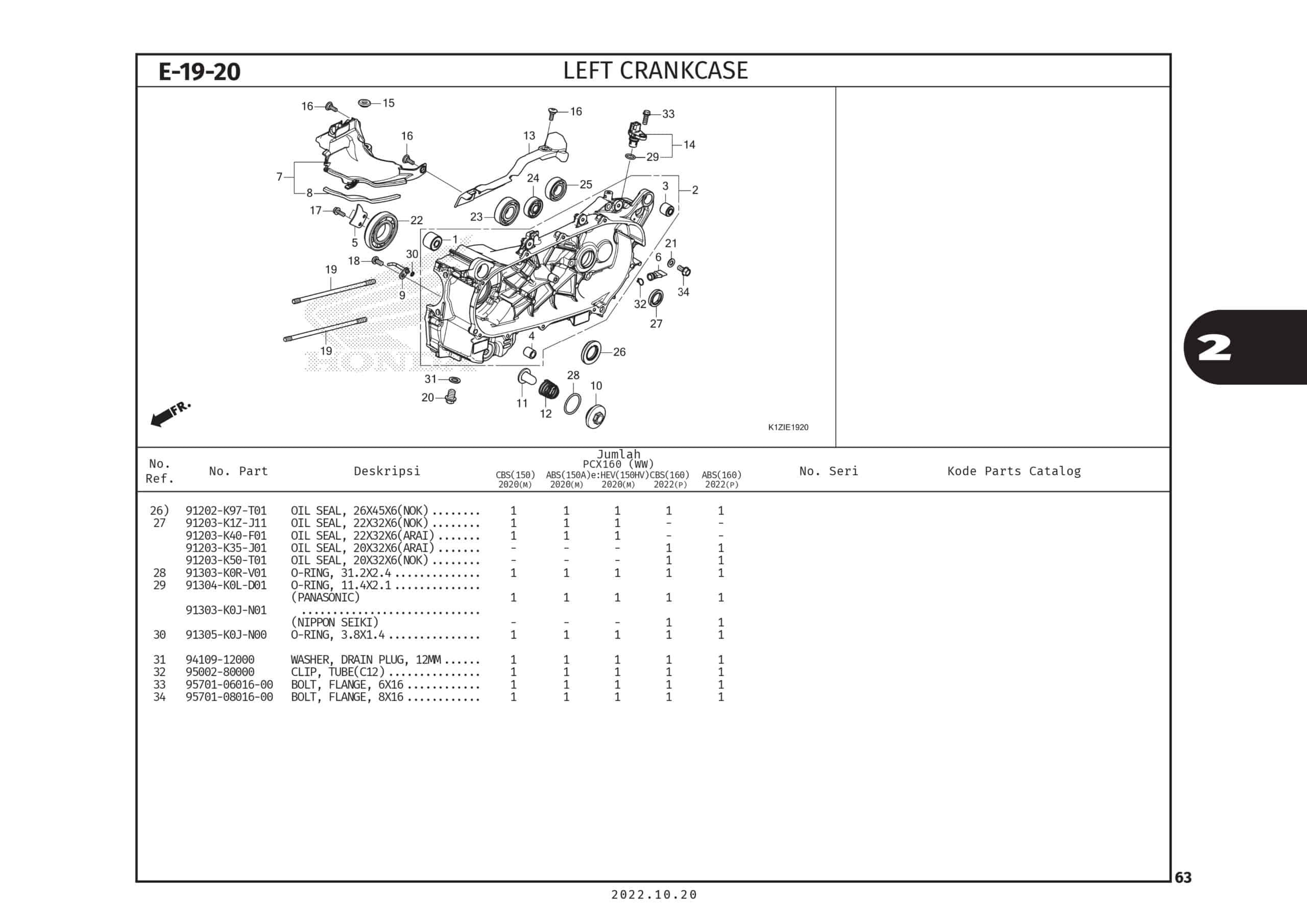

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | BUSH, ENGINE HANGER RUBBER | 11103K0JN00 |
|
| 1 | BUSH, ENGINE HANGER RUBBER (NOK) | 11103K0JN21 |
|
| 1 | BUSH, ENGINE HANGER RUBBER (HOKUSHIN) | 11103KVB901 |
|
| 1 | BUSH, ENGINE HANGER RUBBER | 11103KVB930 |
|
| 2 | CRANKCASE COMP., L | 11200K1ZJ10 | - |
| 2 | CRANK CASE COMP,LEFT | 11200K2SN00 | - |
| 3 | BUSH, RR. CUSHION UNDER RUBBER | 11203K35J00 |
|
| 3 | BUSH, RR. CUSHION UNDER RUBBER (HOKUSHIN) | 11203KVB901 |
|
| 3 | BUSH, RR. CUSHION UNDER RUBBER | 11203K35J01 |
|
| 4 | BUSH, MAIN STAND | 11205GBC300 |
|
| 4 | BUSH, MAIN STAND | 11205K0JN00 |
|
| 5 | PLATE, L. CRANKSHAFT BEARING SETTING | 11208K40F00 |
|
| 6 | TUBE, DRAIN | 11343KVG900 |
|
| 7 | COVER ASSY., ENGINE TOP | 11410K1NV00 |
|
| 8 | SEAL, ENGINE TOP COVER . | 11412K1NV00 |
|
| 9 | JET COMP., PISTON | 15201K0RV00 |
|
| 10 | COVER, OIL FILTER | 15411K0RV00 |
|
| 11 | SCREEN, OIL FILTER | 15421K0RV00 |
|
| 12 | SPRING, OIL FILTER SCREEN | 15426K0RV00 |
|
| 13 | PROTECTOR, SPEED SENSOR | 32112K1NV00 |
|
| 14 | SENSOR ASSY., SPEED(PANASONIC) | 37700K0LD11 |
|
| 14 | SENSOR ASSY,SPEED | 37700K0JN01 |
|
| 15 | GROMMET, SIDE COVER | 83551376000 |
|
| 16 | BOLT, SOCKET, 6X18 | 90001KWR000 |
|
| 17 | BOLT, FLANGE, 6X16 | 90003K1ZN20 |
|
| 18 | BOLT, SPECIAL, 6X12 | 90003K0JN00 |
|
| 19 | BOLT B, STUD, 8X213.2 | 90032K0RV00 |
|
| 20 | BOLT, DRAIN PLUG, 12X15 | 90131883000 |
|
| 21 | WASHER, SEALING, 8MM | 90495MN5000 |
|
| 22 | BEARING, RADIAL BALL, 35X72X15 | 91002K1NV01 |
|
| 23 | BEARING, RADIAL BALL, 62/22 (FUJIKOSHI) | 91004K1ZJ11 |
|
| 23 | BRG, BALL RADIAL 6204 | 91003K2SN01 |
|
| 23 | BRG,BALL RADIAL 6204 | 91003KZR601 |
|
| 23 | BEARING RADIAL BALL 6204 | 91003KZR602 |
|
| 24 | BEARING, RADIAL BALL, 6301 (NTN) | 91005KZR601 |
|
| 24 | BEARING, RADIAL BALL, 6301 (FUJIKOSHI) | 91005KZR602 |
|
| 24 | BRG, BALL RADIAL 6301 | 91005K2SN01 |
|
| 25 | BEARING, RADIAL BALL, 6004 (NTN) | 91016K1ZJ11 |
|
| 25 | BEARING, RADIAL BALL, 6004 | 91016KBB901 |
|
| 26 | OIL SEAL, 26X45X6(NOK) | 91202K97T01 |
|
| 27 | OIL SEAL, 22X32X6(NOK) | 91203K40F01 |
|
| 27 | OIL SEAL 20X32X6 | 91203K35J01 |
|
| 27 | OIL SEAL, 20X32X6 | 91203K50T01 | - |
| 28 | O-RING, 31.2X2.4 | 91303K0RV01 |
|
| 29 | O-RING, 11.4X2.1 | 91304K0LD01 |
|
| 29 | O-RING,11.4X2.1 | 91303K0JN01 |
|
| 30 | O-RING, 3.8X1.4 | 91305K0JN00 |
|
| 31 | WASHER, DRAIN PLUG, 12MM | 9410912000 |
|
| 32 | CLIP, TUBE(C12) | 9500280000 |
|
| 33 | BOLT, FLANGE, 6X16 | 957010601600 |
|
| 34 | BOLT, FLANGE, 8X16 | 957010801600 |
|
