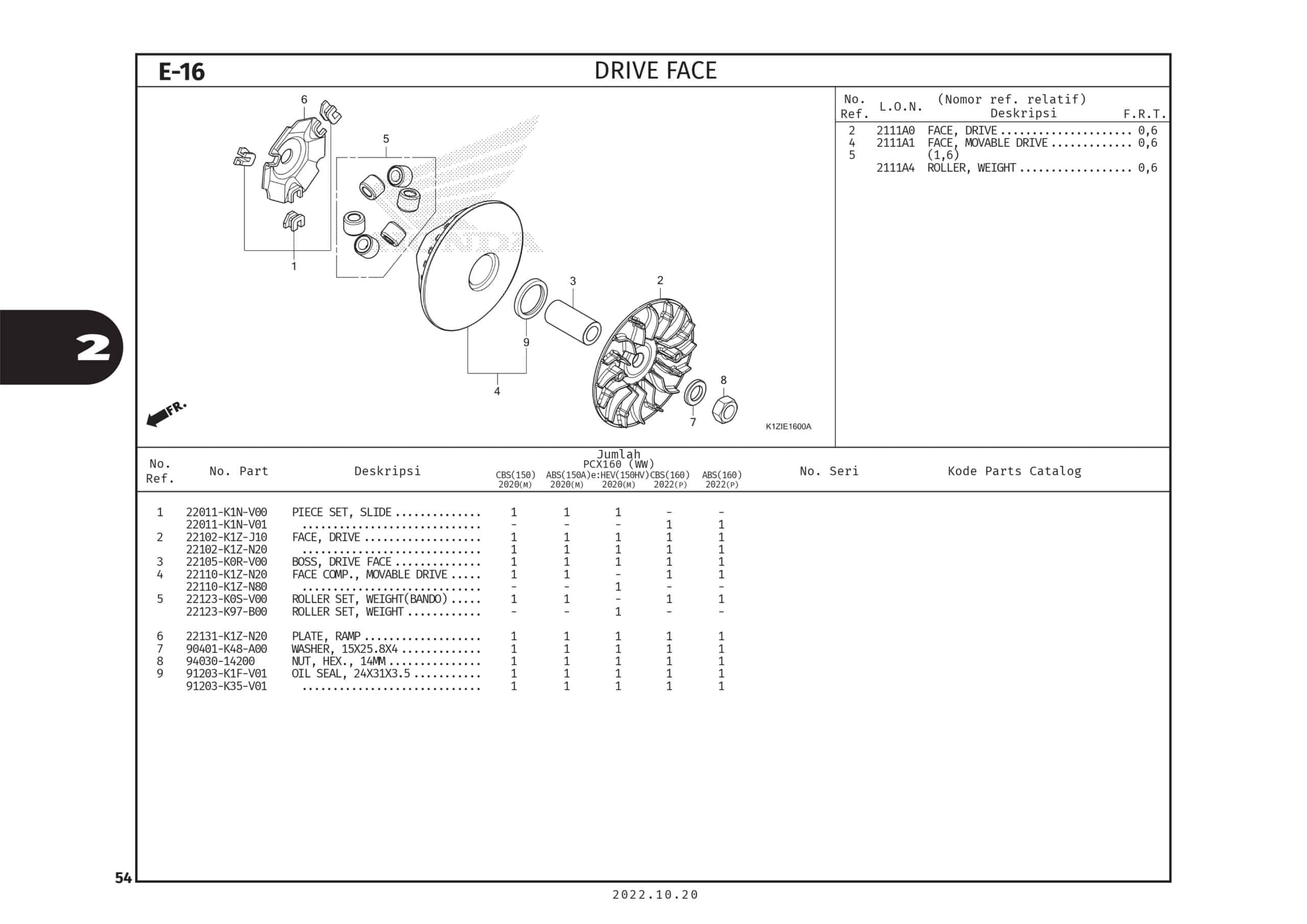

E-16 Drive Face – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	PIECE SET, SLIDE Part Number : `22011K1NV01`
2	FACE, DRIVE Part Number : `22102K1ZN20`
3	BOSS, DRIVE FACE Part Number : `22105K0RV00`
4	FACE COMP., MOVABLE DRIVE Part Number : `22110K1ZN20`
4	FACE COMP,MOVABLE DRIVE Part Number : `22110K1ZN80`
5	ROLLER SET, WEIGHT Part Number : `22123K0SV00`
5	ROLLER SET,WEIGHT Part Number : `22123K97B00`
6	PLATE, RAMP Part Number : `22131K1ZN20`
7	WASHER, 15X25.8X4 Part Number : `90401K48A00`
8	NUT, HEX., 14MM Part Number : `9403014200`
9	OIL SEAL,24X31X3.5 Part Number : `91203K1FV01`
9	OIL SEAL 24X31X3.5 Part Number : `91203K35V01`
