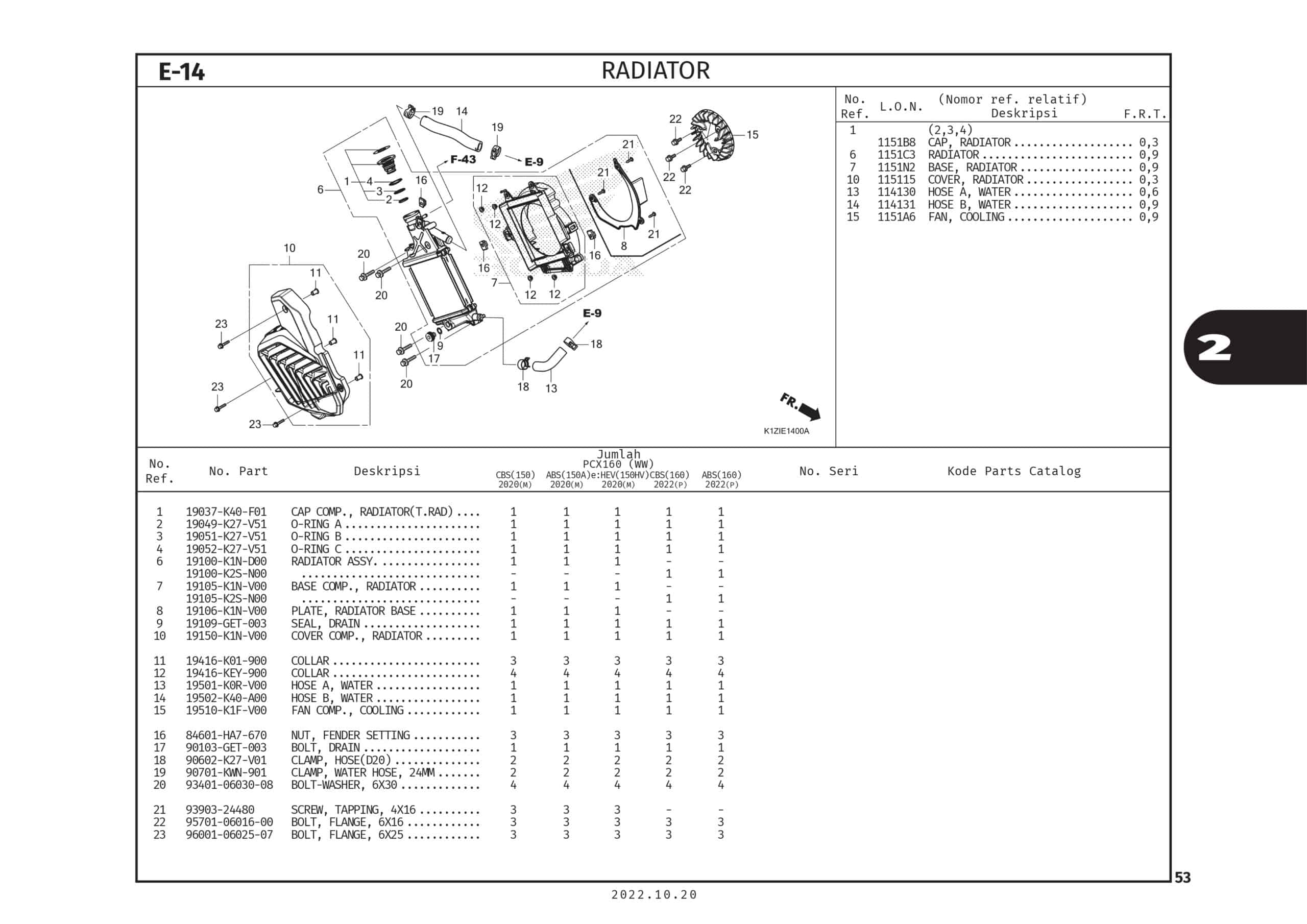

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CAP COMP., RADIATOR(T.RAD) | 19037K40F01 |
|
| 2 | O-RING A | 19049K27V51 |
|
| 3 | O-RING B | 19051K27V51 |
|
| 4 | O-RING C | 19052K27V51 |
|
| 6 | RADIATOR ASSY. | 19100K1ND00 |
|
| 6 | RADIATOR ASSY | 19100K2SN00 |
|
| 7 | BASE COMP., RADIATOR | 19105K1NV00 |
|
| 7 | BASE COMP,RADIATOR | 19105K2SN00 |
|
| 8 | PLATE, RADIATOR BASE | 19106K1NV00 |
|
| 9 | SEAL, DRAIN | 19109GET003 |
|
| 10 | COVER COMP., RADIATOR | 19150K1NV00 |
|
| 11 | COLLAR | 19416K01900 |
|
| 12 | COLLAR | 19416KEY900 |
|
| 13 | HOSE A, WATER | 19501K0RV00 |
|
| 14 | HOSE B, WATER | 19502K40A00 |
|
| 15 | FAN COMP., COOLING | 19510K1FV00 |
|
| 16 | NUT, FENDER SETTING | 84601HA7670 |
|
| 17 | BOLT, DRAIN | 90103GET003 |
|
| 18 | CLAMP, HOSE(D20) | 90602K27V01 |
|
| 19 | CLAMP, WATER HOSE, 24MM | 90701KWN901 |
|
| 20 | BOLT-WASHER, 6X30 | 934010603008 |
|
| 21 | SCREW, TAPPING, 4X16 | 9390324480 |
|
| 22 | BOLT, FLANGE, 6X16 | 957010601600 |
|
| 23 | BOLT, FLANGE, 6X25 | 960010602507 |
|
